Textured surfaces cyclonic batten rollforming line

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 50 Days

Basic Info

Model No.: AP-CYSLONIC BATTEN-ROLLFORMER

Certification: CE, SGS, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Drive: Electromagnetic

Additional Info

Packaging:  textured surfaces cyclonic batten rollforming line will be packged by the PE film to protect it from rusty, then loaded into the container.

Productivity: 150 sets per year

Brand: ZT

Transportation: Ocean,Land

Place of Origin: China, Wuxi City

Supply Ability: 10 sets per month

Certificate: CE,ISO

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port,Zhangjiagang Port

Product Description

Textured surfaces cyclonic batten rollforming line


Textured surfaces cyclonic batten rollforming line is designed to produce the cyclonic batten channel in big capacity. Whole steel framing ceiling betten rollformer including the de-coiler, leveller, main roll forming machine, cutting system and receiving table. The speed is about 25-35 meters per minutes. Two Cutting method, one is stopping cutting, the other is tracking cutting.Full automatic rollfomer which is controlled by the panasonic PLC.

cyclonic batten rollforming line

cyclonic steel roff batten rollforming line

textured surfaces cyclonic batten rollforming line

Our factory can produce this ceiling batten by the textured surfaces cyclonic batten rollforming line.

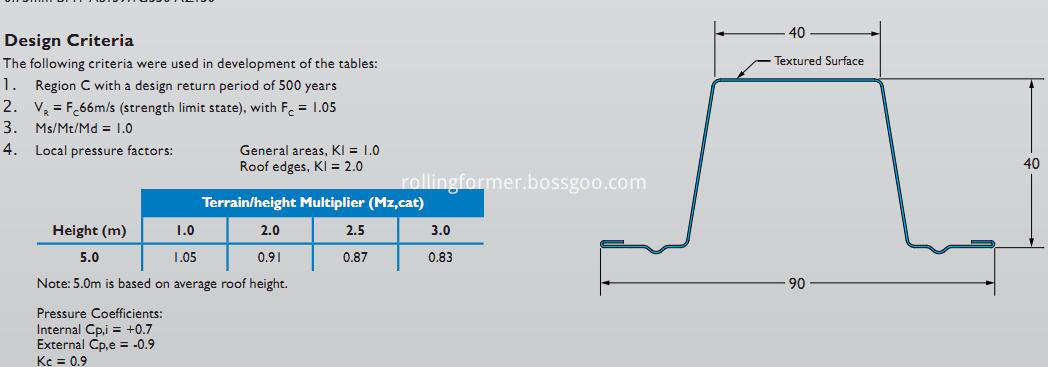

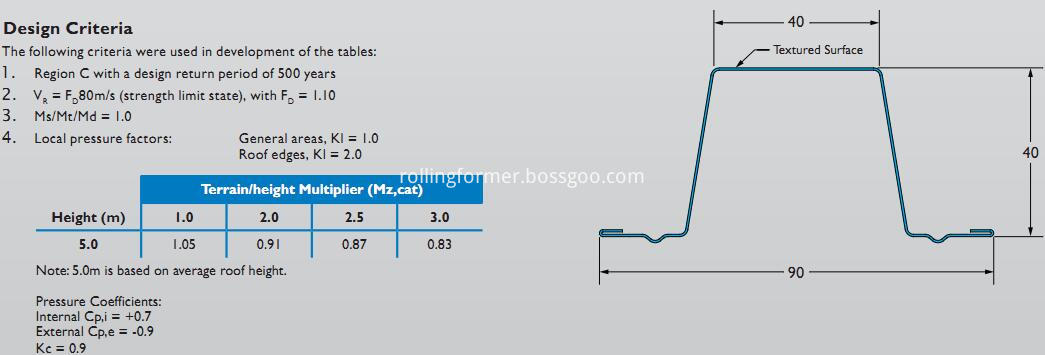

The features of thetextured surfaces cyclonic batten has below features, which is manufactured by the textured surfaces cyclonic batten rollforming line

1 the return edges is folded back on itself, providing a safe edge and a rigid profile. In this way, it is safe when person touch the ceiling batten. Celing batten rollformer finish this perfect return edges by the designing of each rollers of the rollformer.
2 0.42mm thick hi-tensile steel is very strong, light weight and is easy to cut with snips. The ceiling batten rollformer up rollers and down rolllers can be adjusted to leave a 0.42mm space fo the thickness, so there is no damage to the betten material.
3 The 20mm high profile probided strength and is designed to nest for easy handling and storage. So the ceiling batten can be placed one cover another one, also we can design the automatic stacker of the ceiling betten rollformer.
4 A cavity on the bottom prolongs the batten's life by proventing condensation from forming. The cavity is formed by the special designing of the rollformer rollers.
5.A textured surface makes installation easy when locating and screwing plasterboard fixings. For the textured surface, the ceiling batten rollformer is designed with the embossing rollers. Also the ceiling batten rollformer can embossing the logos.
6,Ceiling battens are supplied in the length of 6100mm per piece,  it is easy handling and storage.  So you can input the length in the computer, then the rollformer will cut the length as setted, and automatic working and cut.



The textured surfaces cyclonic batten can be used fixing to the timber joists, fixing to steel joints, attaching the plasterboard


Above infomation is about the ceiling batten which can be produced by our  textured surfaces cyclonic batten rollforming line.

Below are some specifications of the  textured surfaces cyclonic batten rollforming line:

Model   ceiling batten rollformers
Speed     30-40m/min
Thickness     0.42mm
Controlling     Panasonic PLC
Manual De-coiler     2 ton de-coiler
Roller station     13 stations
Post cutting     1 set
Roller material     Gcr15 finish machining after quenching HRC58-62℃,chromium coating.
Shaft material and diameter     45# steel finish machining,diameter is ¢70mm
Main power     5.5 kw
Hydraulic press     12 Mpa
Hydraulic power     3 kw
Blade material     Cr12Mov, quenching HRC 58-62℃
Length tolearance     3m±1.5mm
Voltage     Australia standard voltage 415 V
Transmission     1,0 inch single chain
structural     Pillar structure
Color     Company color
Size     Length*Width*Height 6.5m*1,3m*1.2m

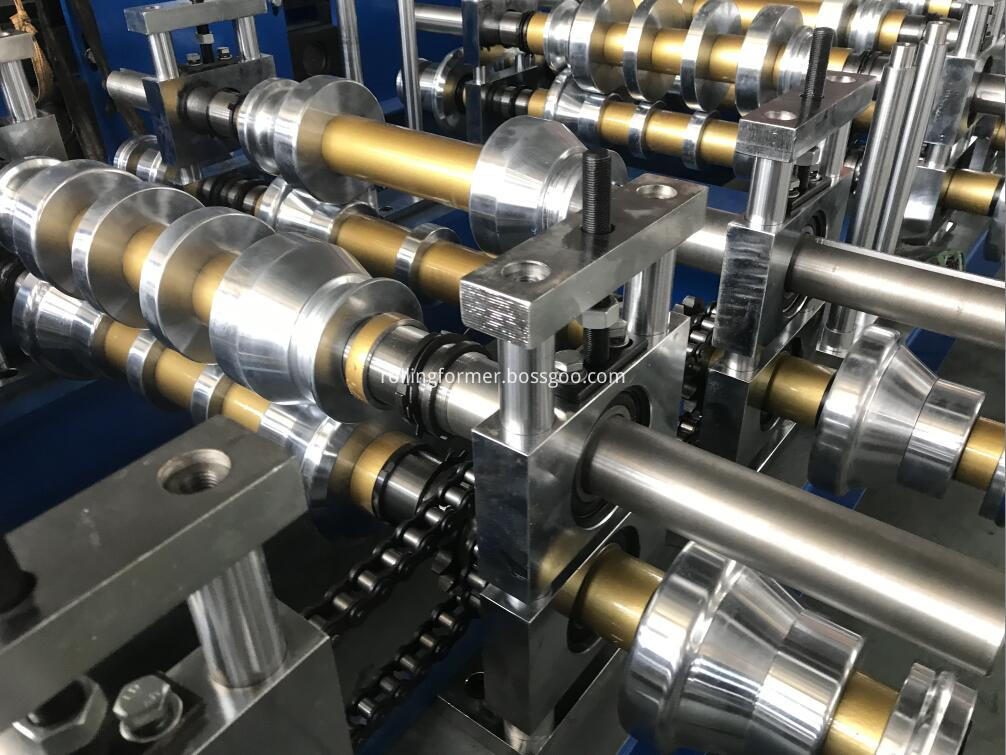

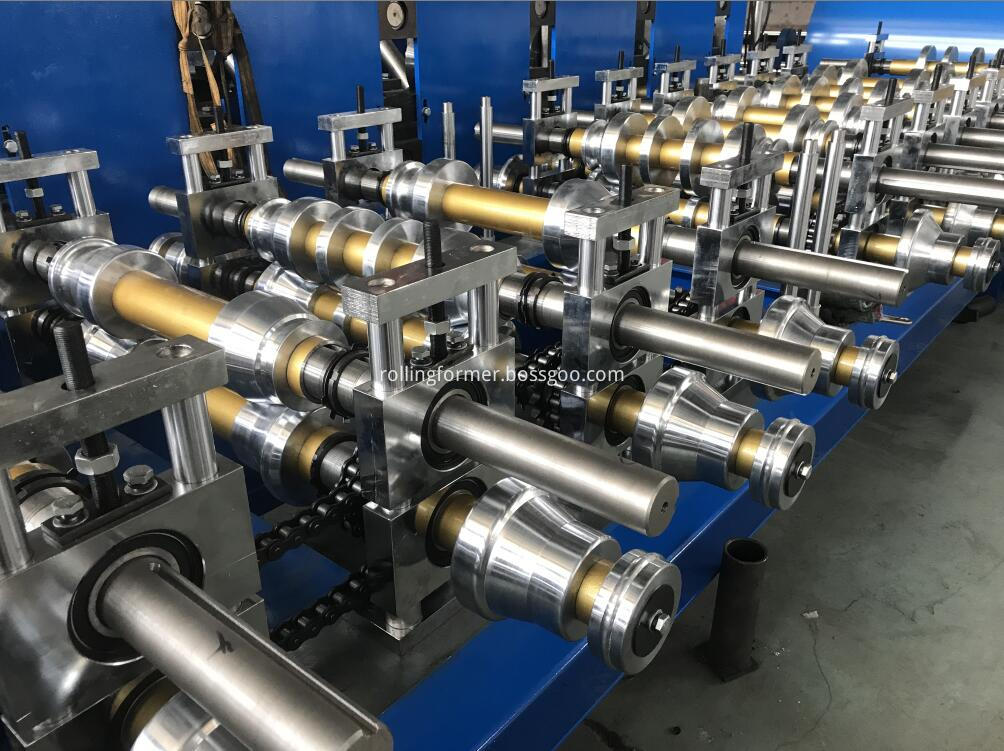

Ceiling batten rollformers is designed well with high quality material, below are some pictures for your reference:

textured surfaces cyclonic batten rollforming line




textured surfaces cyclonic batten rollforming line
