Fire door rollformer fire rated metal doors rollformer

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 50 Days

Basic Info

Model No.: ZT-FIRE DOOR-ROLLFORMER

Certification: CE, SGS, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Drive: Electromagnetic

Punching Cutting Method: First Punching And Cutting Before Roll Forming

Shaft Diameter: 70mm

Roll Material: Gcr15 Steel After Finishing, Quenching HRC58-62 °C

Leveling Machine Power: 3kw

Control Method: Panasonic PLC

Voltage: Can Be Made According To Customer's Country

Machine Color: Blue Color Or Can Be Customized Designed

Thickness: 0,8--2.0mm

Working Speed: 10-15 M / Min (without Cutting Time)

Expanded Width: 930-1030mm

Additional Info

Packaging: Fire door rollformer fire rated metal doors rollformerwill be packged by the PE film to protect it from rusty, then loaded into the container.

Productivity: 150 sets per year

Brand: ZT

Transportation: Ocean,Land

Place of Origin: China, Wuxi City

Supply Ability: 10 sets per month

Certificate: CE,ISO

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port,Zhangjiagang Port

Product Description

Fire door rollformer fire rated metal doors rollformer

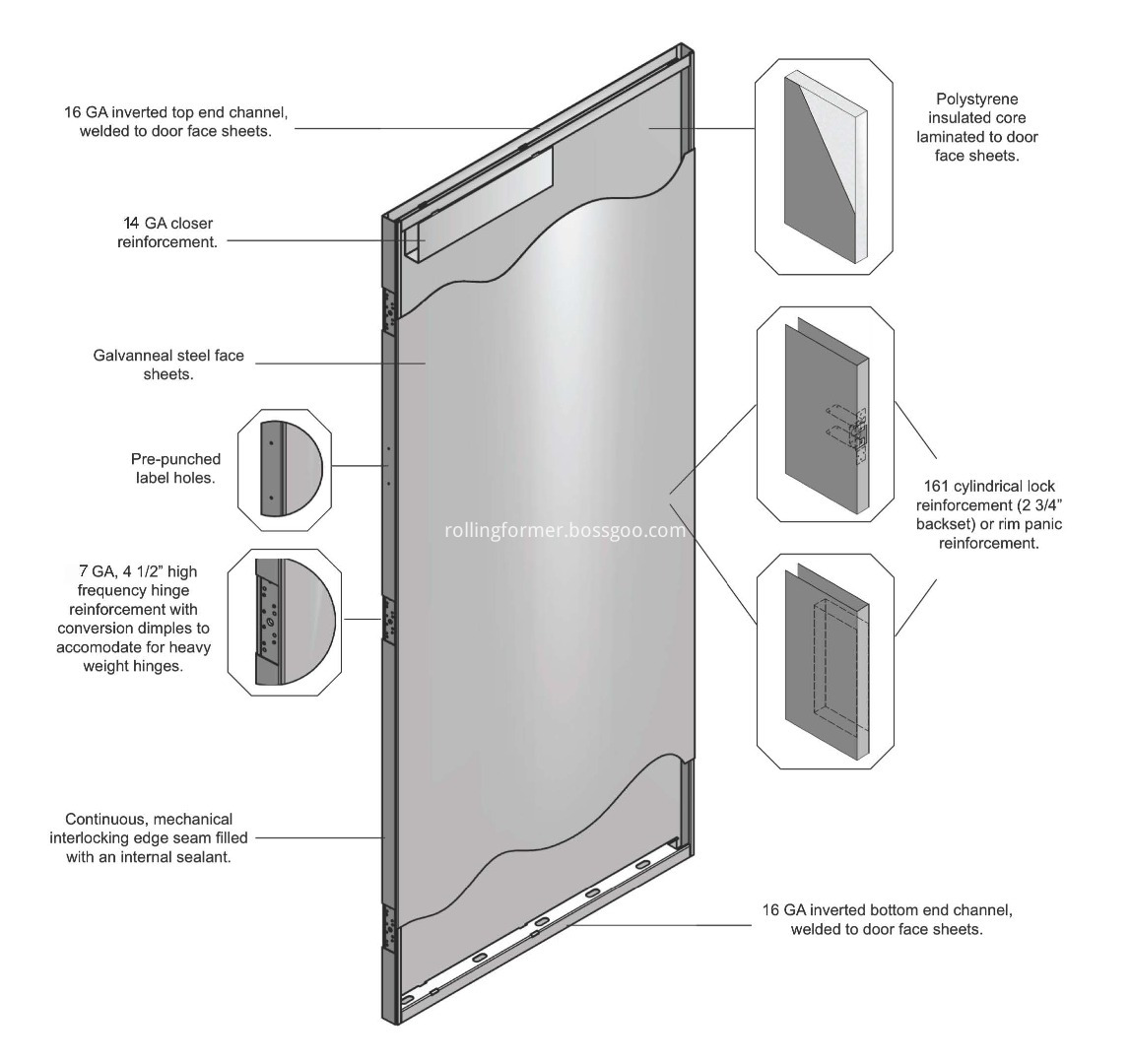

Fire door rollformer fire rated metal doors rollformer is full automatic rollforming lines for manufacturering the steel doors from material feeding, punching, levlling,roll forming and cutting.Fire door rollformer fire rated metal doors rollformer can pruduce the door panels with thickness from 0.8mm-2.0mm. Compared with the wood doors and PVC doors, the fire rated metal doors are with the function of fireproofing which can last 3 hours fire rating, extending escaping time from fire hurting.Fire rated metal doors are heavy-duty, reinforced steel doors which are designed to serve industrial, commercial and residential applications.Available in single or double panel configuration.between the double panels of the fire door, there are material which can reduce the temperature.Contractor friendly doors available as pre-hung and pre-assembled for quick and easy installation.Underwriters Laboratories (UL) tested and classified for fire ratings of 45 minutes, 1-1/2 hours and 3 hours.Securall only uses rugged and durable materials and hardware in our door assemblies. Doors are 18 gauge steel with 16 gauge frames.Standard fire metal doors are constructed of galvannealed steel but stainless steel is also an option. Please let Securall know if you have a special request for different materials, hardware or configurations. We are happy to customize to suit your needs.

Commercial Hurricane Doors 3

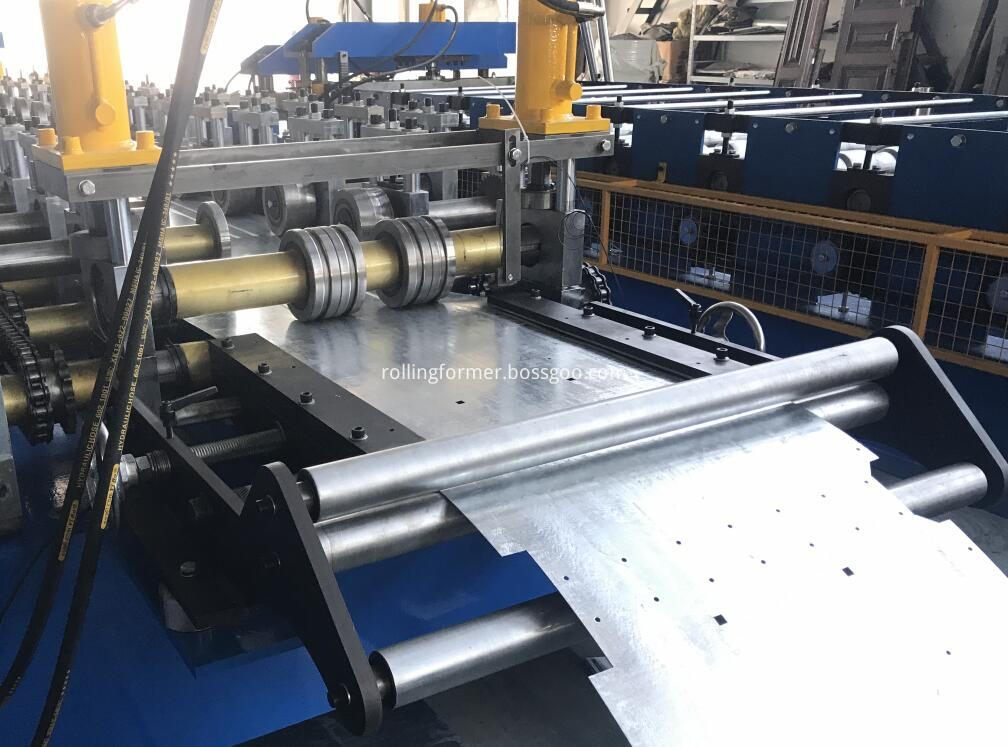

fire rated metal door rollformer

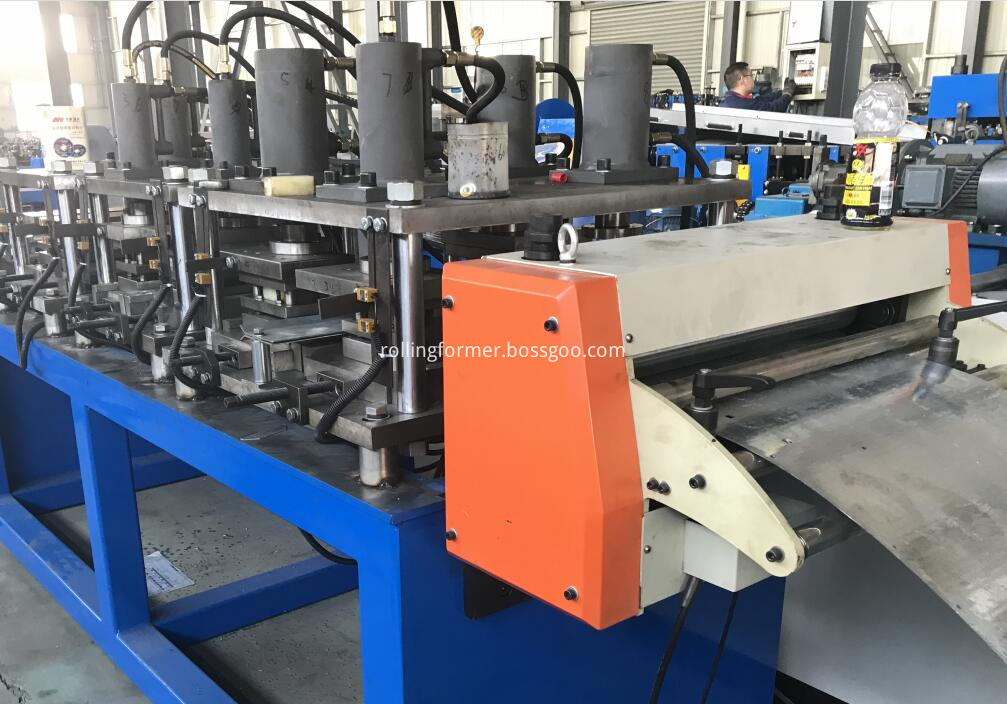

fire rated metal door rollformer 1

fire rated metal door rollformer 3

89A GP DoorCutSht...CROP

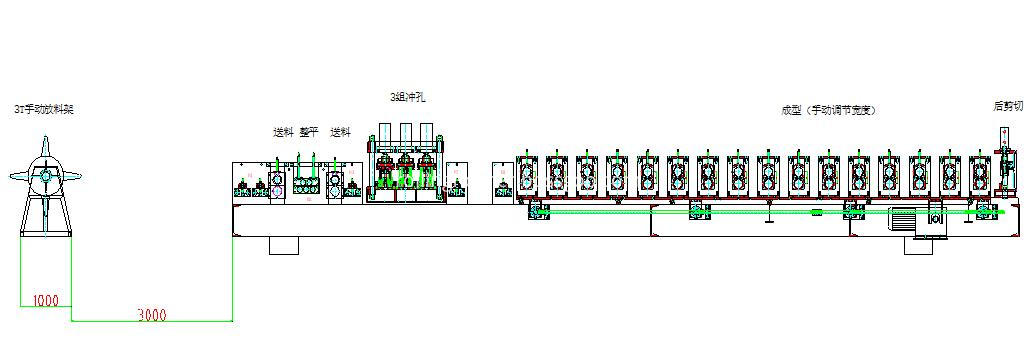

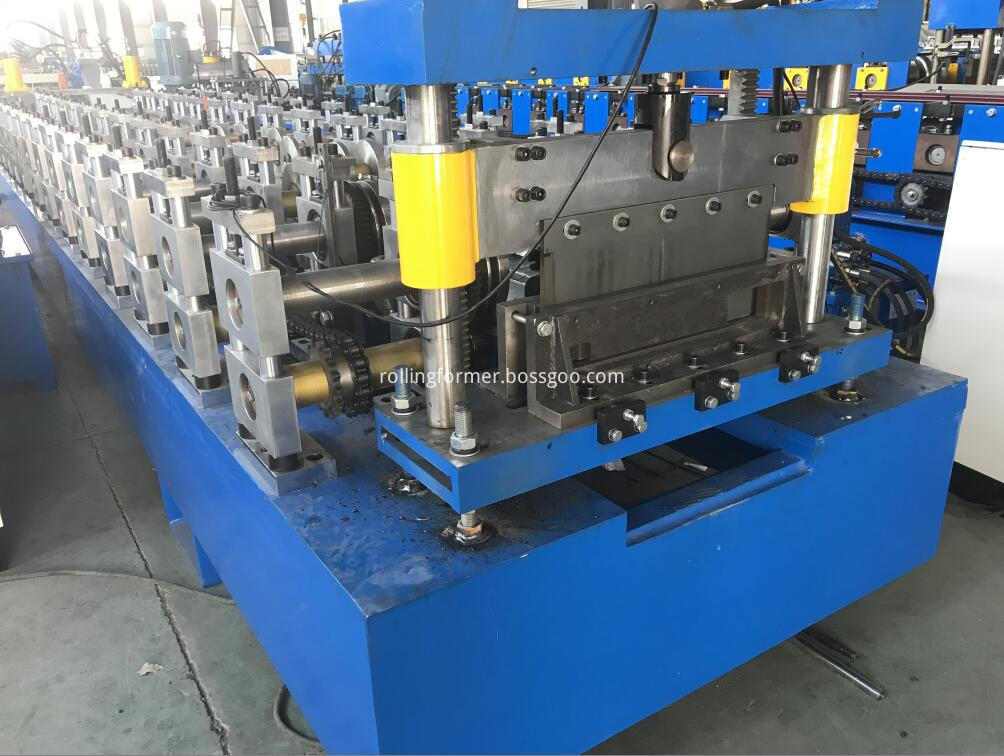

Fire door rollformer fire rated metal doors rollformer including below parts: 5 tons manual de-coiler, main roll forming body, the punching system, cutting system and PLC controling cabinet and hydraulic station.

fire rated metal door rollformer 4

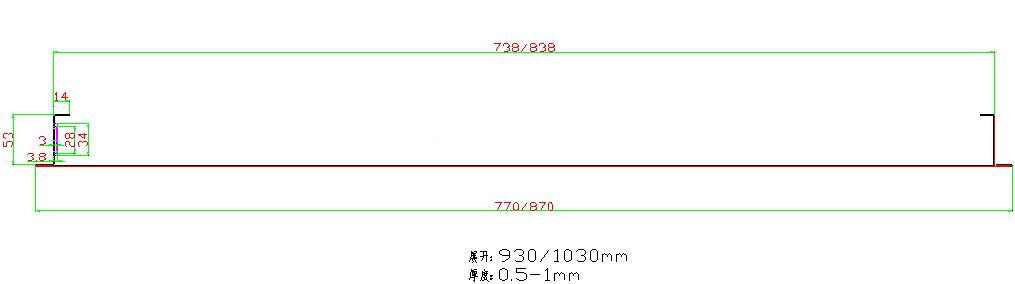

Fire door rollformer fire rated metal doors rollformer is as below information: Material width is 930-1030mm width, rollformer working speed 10-15 meters/min, which is not including cutting time, thickness of the fire rated metal door is 0.8-2.0mm, rollforming line controling system is panasonic PLC, 5 tons hydraulic decoiler, feeding rollers two stations, leveling rollers 1 set, punching system 5 sets, the main roller stations is 18, material of rollers is Gcr15 steel After finishing, quenching HRC58-62 °C, chrome plating on the surface. shaft material is #45 steel after finishing treatment, shaft diameters is 70mm, main motor power is 7.5KW, and hydraulic station power is 5.5 kw, the cutting blade materisl is Cr12mov, Quenching HRC 58-62 ° C. Tolearance is 3m±1.5mm. volatge can be customized according to different country's industrical voltage. Transmission method is chain, 1.0 inch double chain. Fire door rollformer fire rated metal doors rollformer color is normal blue, size of equipment is:

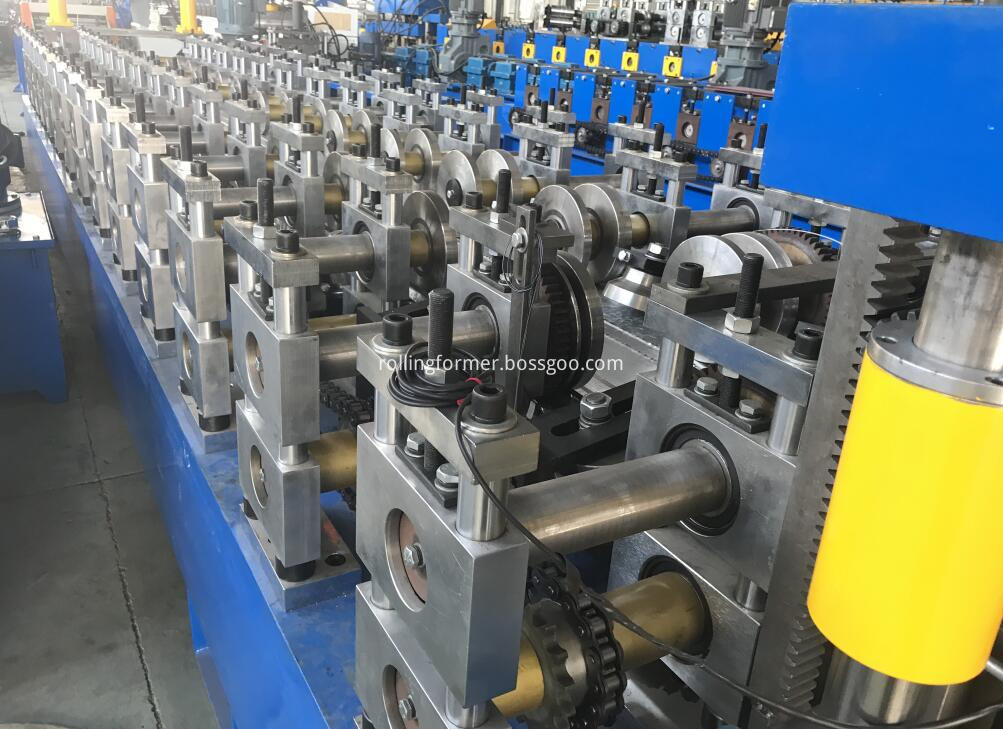

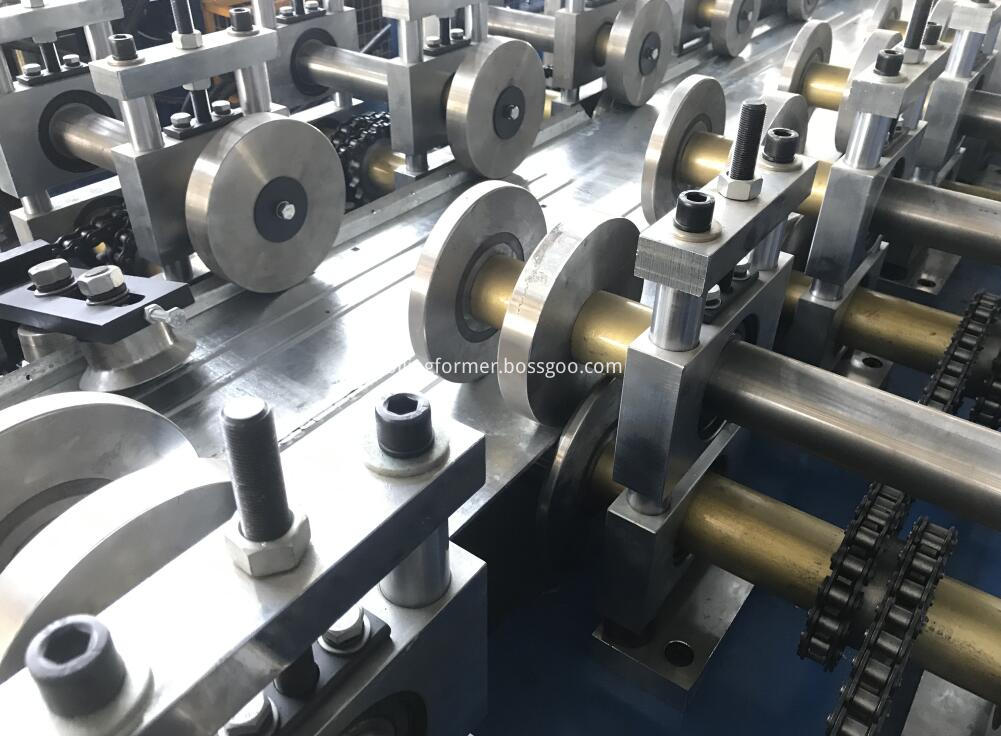

8.5 meter in length, 1.6 meter in width and 1.2 meter in height. The Fire door rollformer fire rated metal doors rollformer is well designed with pillar structural. Below are some pictures for you reference.

Fire Rated Metal Doors rollformer 3

Fire Rated Metal Doors rollformer 5


Fire Rated Metal Doors rollformer 14


Fire Rated Metal Doors rollformer 10

Fire Rated Metal Doors rollformer 16
