Double layer roofing panel rollforming line

Unit Price: USD 10000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: ZT-ROOFING PANEL ROLLFORMING LINE

Warranty: 5 Years

Certification: CE, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Main Forming Machine Weight: 6.5 Ton

Main Forming Machine Size: 9.5m*1.8m*1.5m(L*W*H)

Voltage: 380-415 V

Controling: PLC

Color: Blue Or Can Be Painted As Your Required Color

Shaft Material: Cr12

Transmission: Double Chain With 1.2 Inch

Diameter: 80mm

Roller Station: 12 Stations

Main Motor Power: 15 Kw

Additional Info

Packaging: double layer roofing panel rollforming line be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Double layer roofing panel rollforming line

Double layer roofing panel rollforming line is a rollformer with doubel deck rollforming machine. There are two different profiles on one machine, the profiles can be corrugated roofing panel trapezoidal roofing panel, glazed tile roofing panel. The features of double layer roofing panel rollforming line is : two double layer roofing panel in one machine, which the rollforming line is be installed with one de-coiler, one double layer rollforming machine, one double layer cutting machine, one receiving table. That is to say, the two profile share one machine, so that it reduce one machine floor space, and save much cost. double layer roofing panel rollforming machine is popular in many area, such as Tanzania, Egypt, Ethiopia, Kenya, Uganda, Seychelles, Rwanda, Burundi, Namibia, Angola.The speed of double layer roofing panel rollforming line is 8-12 meters per minute.

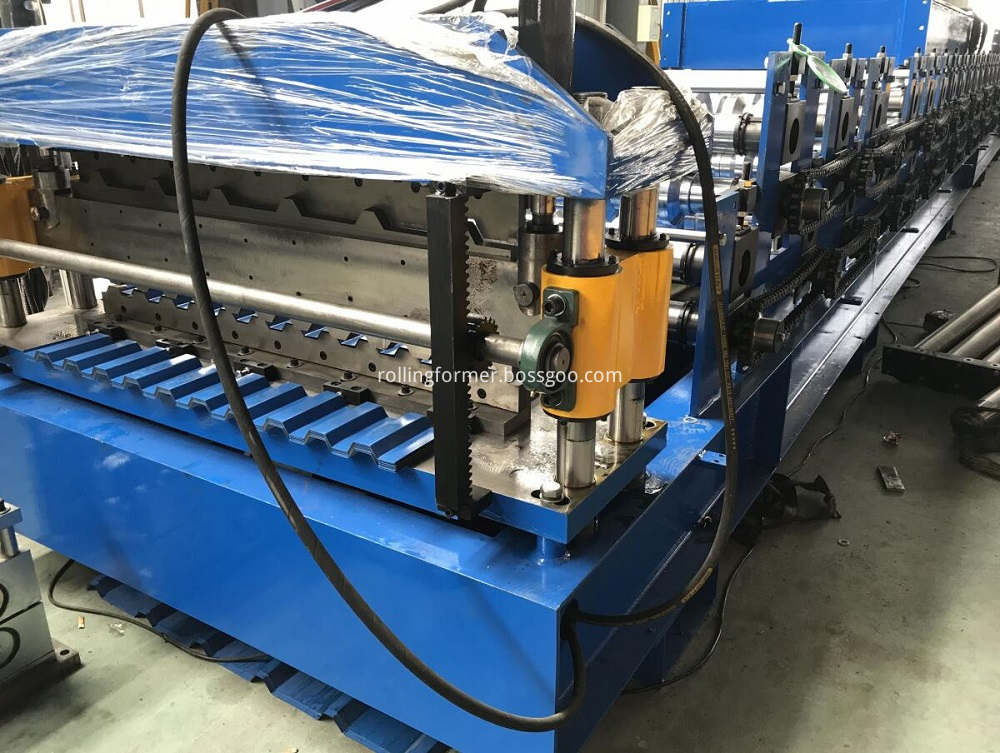

double layer roofing panel rollforming line (6)

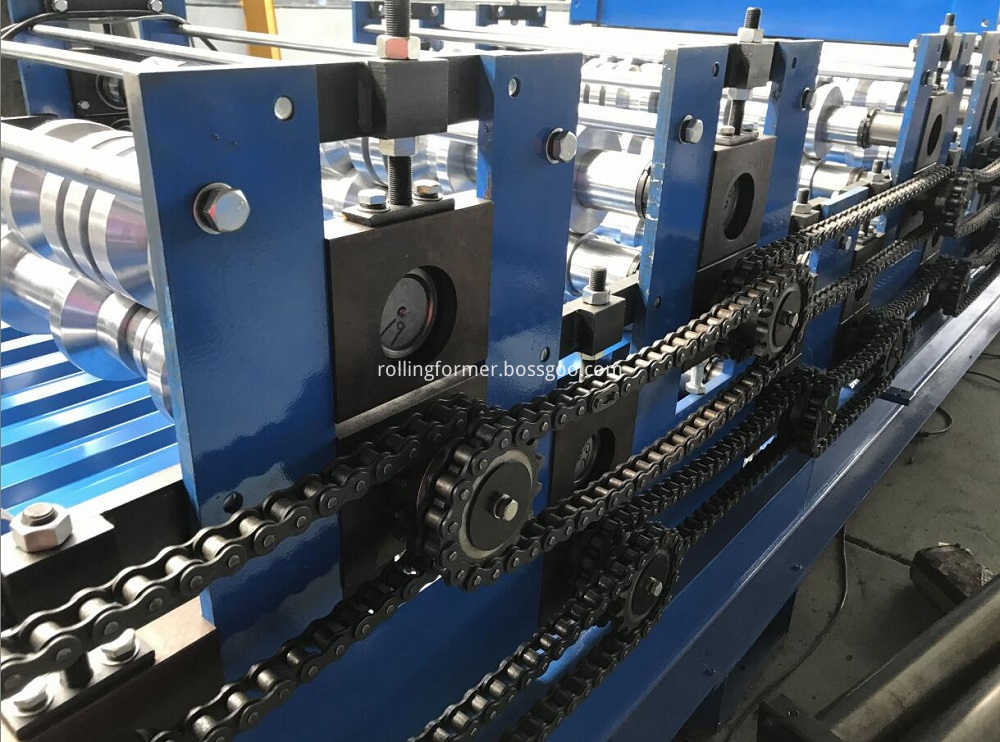

double layer roofing panel rollforming line (8)

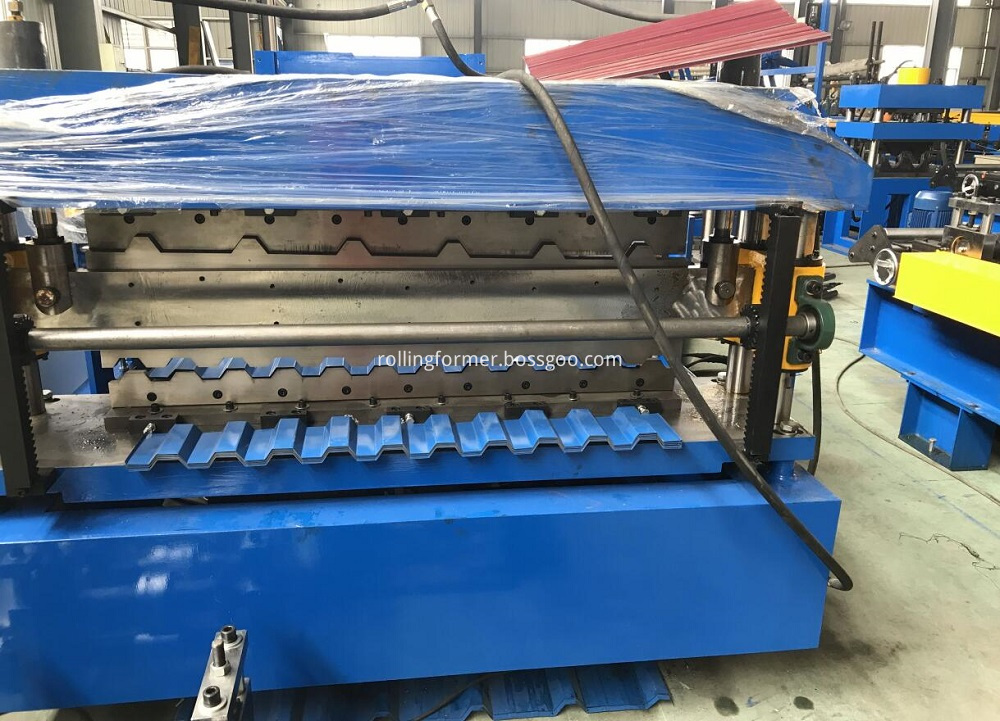

double layer roofing panel rollforming line (9)

Packing list of double layer roofing panel rollforming line,

5T decoiler set 1 manual
Main roll former set 1 Chains drive
PLC control station set 1 Siemens brand
hydraulic system set 1 Hydraulic
Product collect table set 1 manual/3 m length
double layer roofing panel rollforming line2 (2)

Below is the specification of double layer roofing panel rollforming line

Feeding device Platform with bearings feeding
Rolling shaft material  45# STEEL
Shaft diameter 80 mm
Roller material 45# steel
Rolling station 15 stations  17 stations
Work speed 0-12 m/min
Machine frame Steel plate welded structure
Machine body Steel plate welded
Bearing  Chinese famous brand Harbin
Work power 5.5 kw
Roller spacer treatment  Electroplate
Steel bar treatment Electroplate
Transmission  By double Chains
Safety cover Include (steel pipe welded with the mesh)
double layer roofing panel rollforming line (7)




High speed roofing sheet rollformer 11

High speed roofing sheet rollformer 10

Our factory is professional make the rollformer machines of double layer roofing panel rollforming line, CZ purlines section rollformer, steel framing strut rollforming line, suspended ceiling channel rollformer, cable tray rollforming line, shutter door rollformers, door frame rollformers, ridge cap roll forming machines and so on.

we can design the machines according to your requirements!


If you need this high speed and high quality glazed tile roll forming machine, i would like to send you some machine running videos and machine offer for your reference,

any inquiry about the machine , pelase feel free send me an inquiry.
