C purline steel framing C purline rollformers

Unit Price: USD 19000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: AP-C Purline

Warranty: 2 Years

Certification: CE

Customized: Customized

Condition: New

Control Type: Other

Automatic Grade: Semi-Automatic

Steel Framing Rollformers Voltage: 380-415 V

Steel Framing Rollformers Controling: PLC

Steel Framing Rollformers Color: Blue Or Can Be Painted As Your Required Color

C Purline RollformersShaft Material: Cr12

C Purline Rollformers Transmission: Double Chain With 1.2 Inch

C Purline Rollformers Shaft Diameter: 80mm

C Purline Rollformers Roller Station: 12 Stations

C Purline Rollformers Main Motor Power: 15 KW

C Purline Rollformers Weight: 6.5 Ton

C Purline Rollformers Size: 9.5m*1.8m*1.5m(L*W*H)

Additional Info

Packaging: C Purline Rollformers is be packaged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

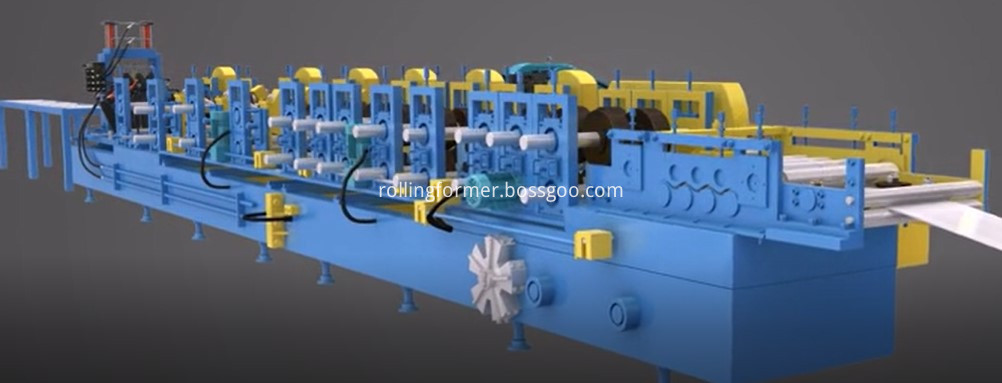

C purline steel framing C purline rollformers

C purline steel framing C purline rollformers is used to make the C purline, C profile. It adopts the PLC controling system. whole line is automatic PLC screen controling. One set of C purline machine incuding below parts: steel strips de-coiler, leveling system, main roll forming machine and the hydraulic cutting system. One set C purline roll forming machine can be designed to accompolish different task of production. For example, according to customer's requirements,  150mm purline, 200mm purline, or only one size purline, or from 80mm-300mm purlines. If the customer need only 3-4 sizes purline, one set of C purline machine can do by changing or adjusting the roller mold. Also for different task of size requirements of production, the cutting methods are different.
In a word, our factory we are in the field of rollformers production more than 20 years, we have the experience to design the rollformers according to customer's requirements.
C purline rollformer can be designed with the punching system, the punching system is hydraulic punching before C purline rollformers cutting.

C purline steel framing C purline rollformers  is a line which can produce different sizes of C purlines by changing the spacer. The character of this adjustable roll forming High capacity C purline roll forming machine is with low cost, and easy to change the space to adjust the size. The thickness of this C section floor beam is 1.5-3.0mm, size is from 80-300mm. For any sizes you need, we will know it and custom design the machine for you. We need to know the flange, the depth, the thickness,the lips.C Purline Rollformers

C Purline Rollformers

High capacity C purline steel framing C purline rollformers  is a simple rollformer line including below parts:

The 3 tons manual decoiler, the feeding leveling system, the main roll forming machine, the hydraulic cutting system and receiving table.

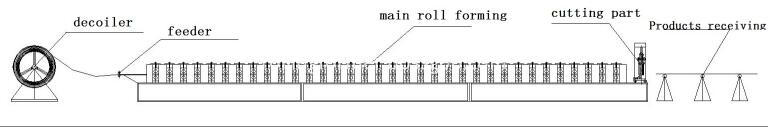

Below is the working flow for your reference:

Working process:
De-coiler--deeding-roll forming machine-holes punching ----post cutting system---receiving table

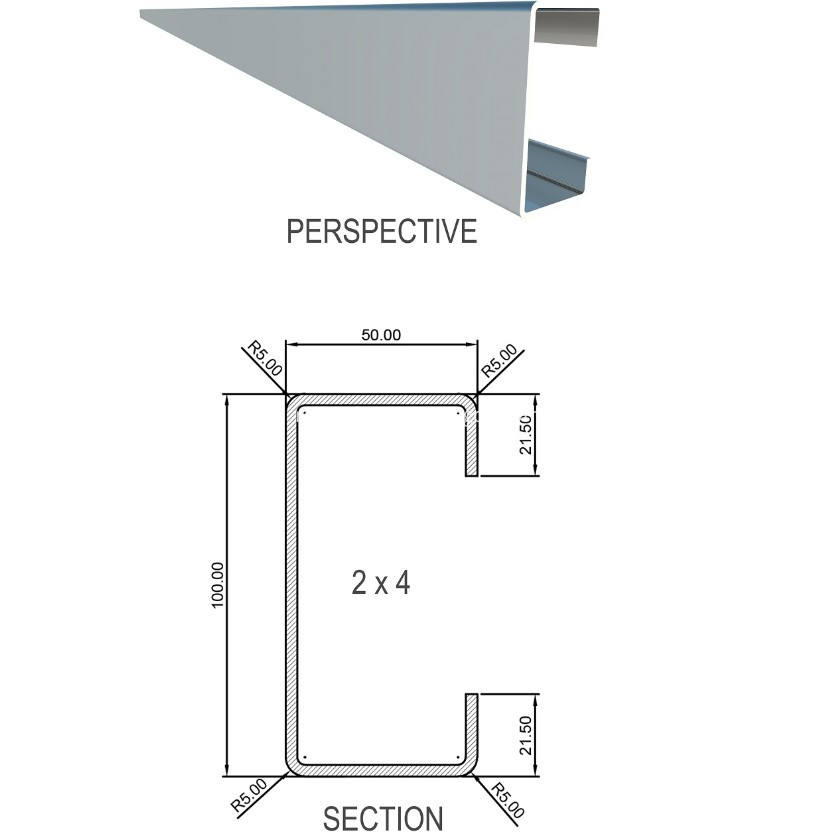

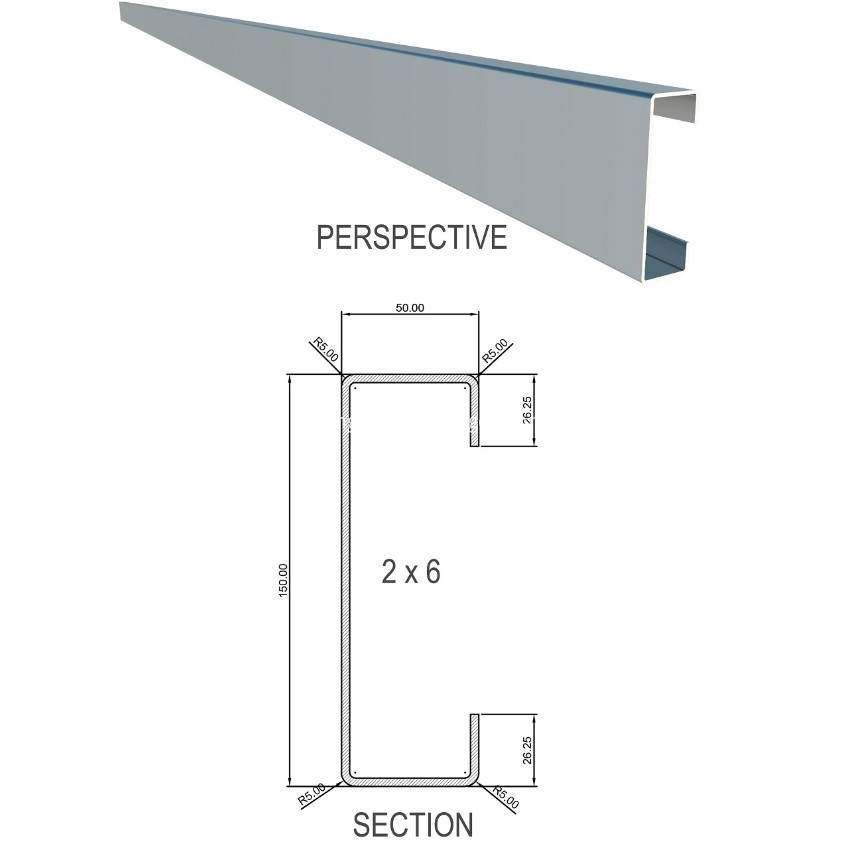

Profile drawing according to customer`s requirement

C Purline Rollformers

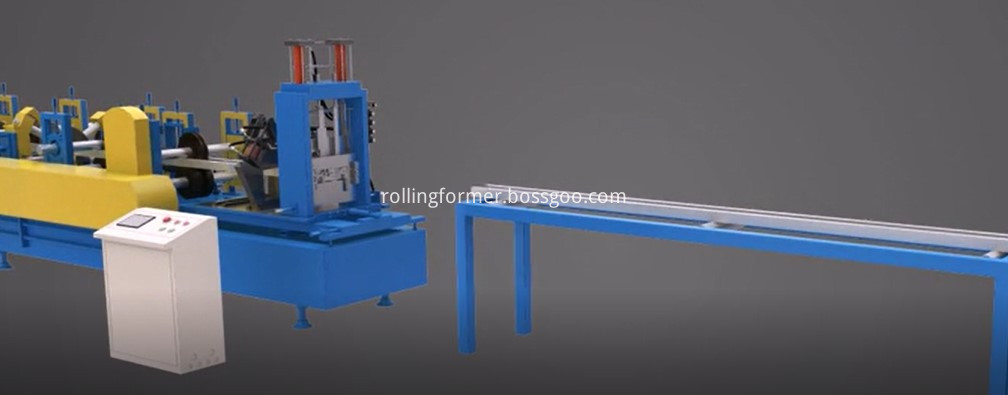

Below are some pictures for your reference:

C Purline Rollformers

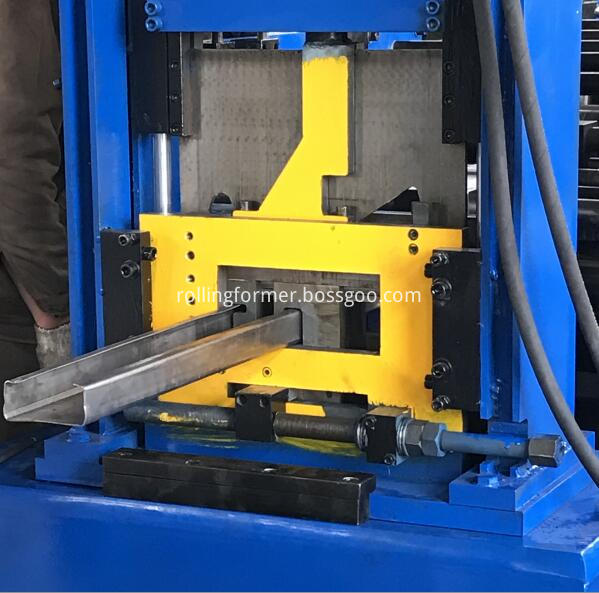

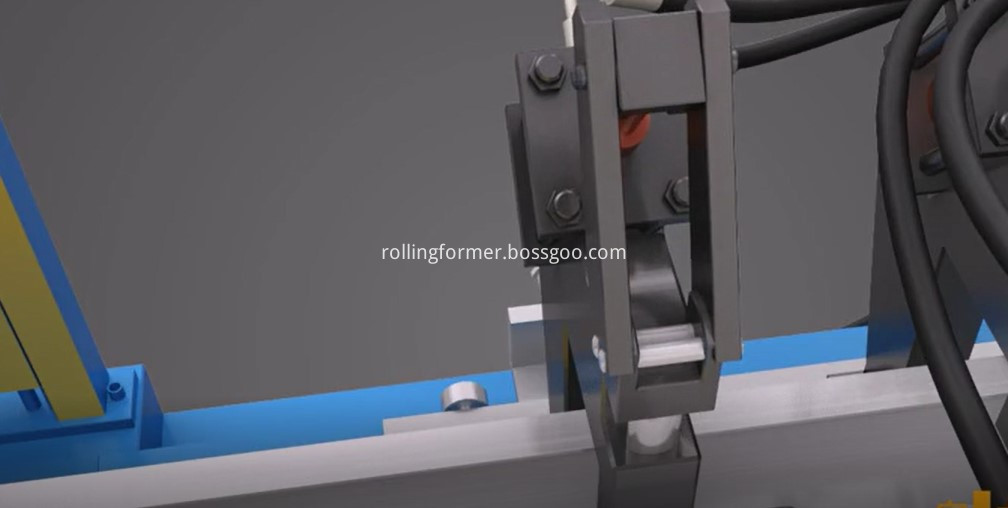

This is the adjustable cutting system, by this adjustable cutting system, you can cut any size you need, but no need to change the cutting blade. Just adjust the shaft left or right, up or down. This C section floor beam C purline machine cutting system is popular in the C purline roll forming machine.Easy to control, but with low cost.

Steel Framing Rollformers

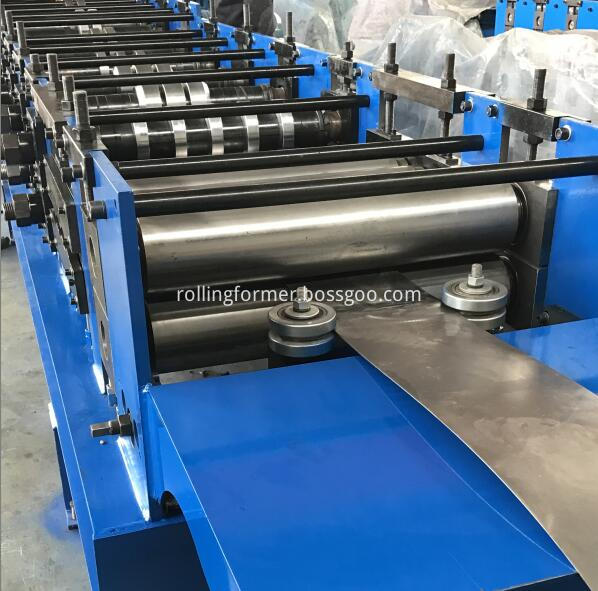

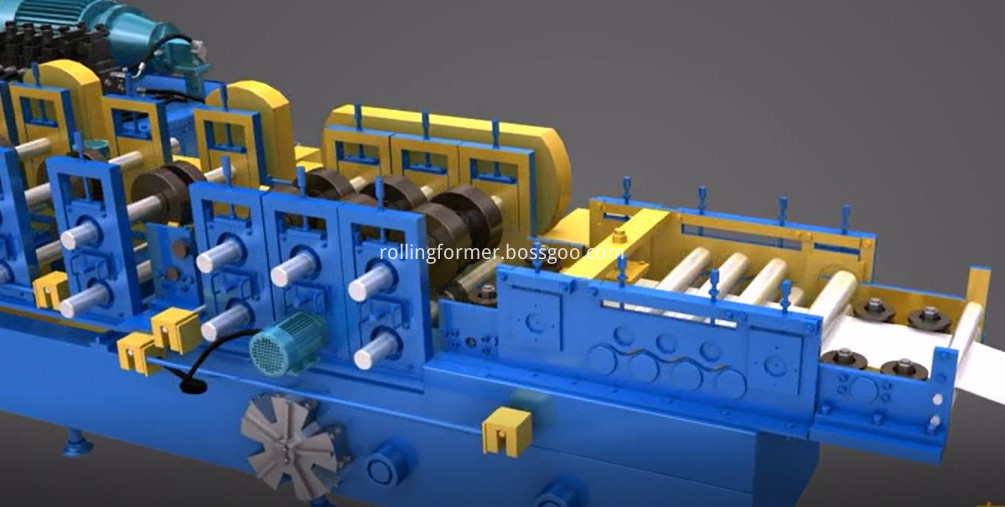

This is feeding system which can make the steel strips tidy and neat into the leveling rollers.There are two leveling rollers up and two leveling rollers down.

The material of the roller is Cr12 with finish machining after quenching by 56-65 degree tempeature.

Steel Framing Rollformers

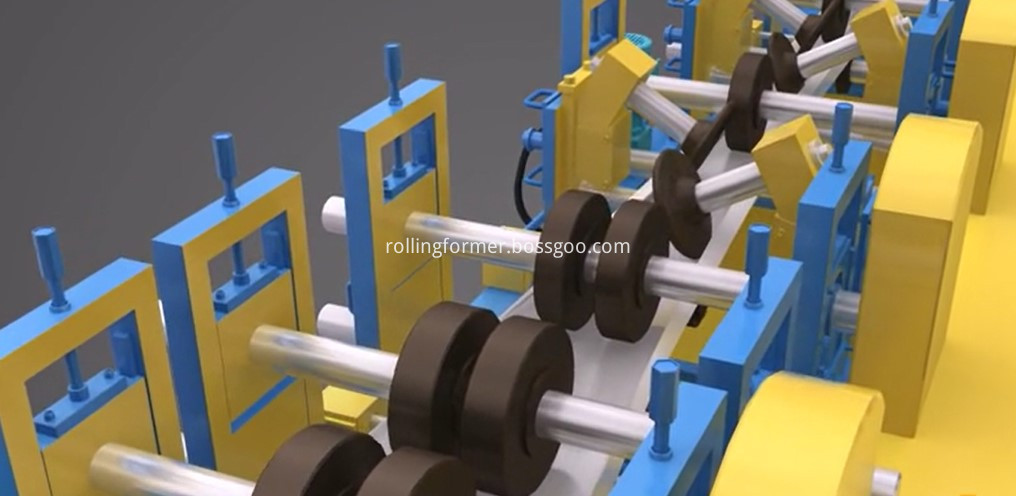

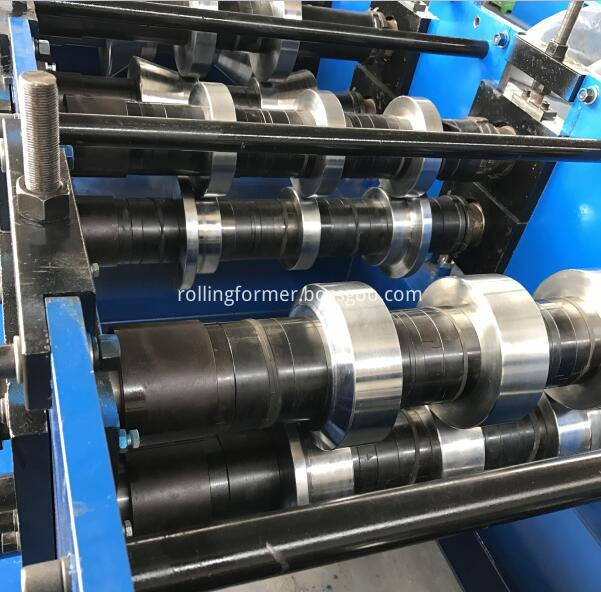

The spacer on the shaft of the High capacity C purline roll forming machine  is used to change the feeding width to form different size of the C purline floor beam.

Steel Framing Rollformers

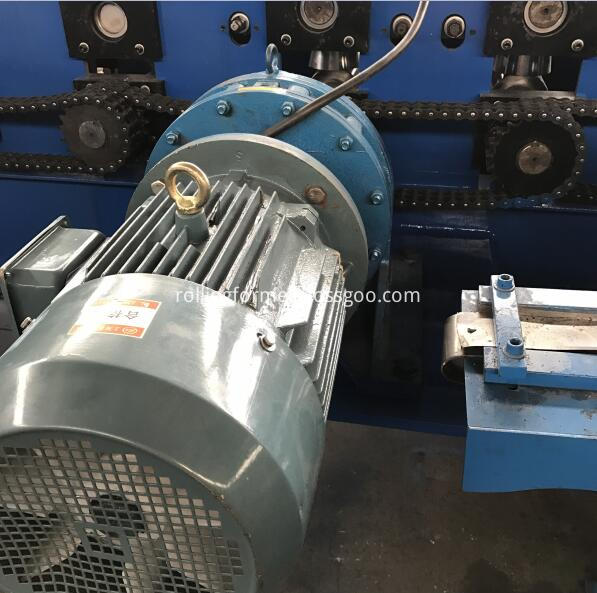

The main motor system of the High capacity C purline roll forming machine .

Steel Framing Rollformers

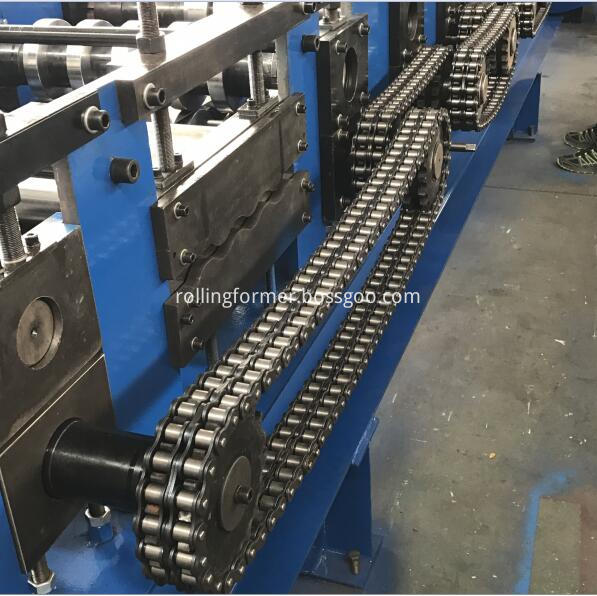

This is the strong double chain of the High capacity C purline roll forming machine . This strong chain make the rollformer machine running stable and in good condition.

Below is some specification of the Main forming machine weight 6.5 Ton

Voltage 380V  50Hz  (380 V is China normal voltage, but the voltage can be customize by customer.)
Method for fixing roller Memorial arch frame
Material of shafts 45# steel Thermal refining
Transmission method gear box
The main shaft material No. 45 steel quenching and tempering treatment
 outer shaft diameter 80mm
Wheel material quenching process of GCr15 bearing steel HRC58-60
 Roller 12 stations
The main motor power 15kw

Steel Framing Rollformers

The detailled specifications of the C purline steel framing C purline rollformers is as below:

Speed 10-15m/min (Not including cutting time)
Thickness 1,5-3,0mm
Controlling Panasonic PLC
De-coiler 3 ton de-coiler
Feeding 2 sets
Leveling 7 sets
Post cutting 1 sets[3 sets blade]
Roller station 16 stations
CZ purline rollformers CZ purline roll forming machine (3)
Roller material Gcr15 finish machining after quenching HRC58-62℃,chromium coating.
Shaft material and diameter 45# steel finish machining,diameter is ¢76mm
Main power 15kw
Hydraulic power 5,5kw
Hydraulic pressure 12Mpa
Blade material Cr12Mov, quenching HRC 58-62℃
Framing C Purline Rollformers

Length tolearance 3m±1.5mm
Voltage 220V, 60HZ,3ph
Can be customized according.
Transmission 1,0 inch double chain
structural Memorial archway
Color Company color
Size Length*Width*Height
Delivery time 60 days
payment 30% as deposit,70% before shipping
Framing C Purline Rollformers

Framing C Purline Rollformers

The main features of each component:
Cutting device:
(1) Cutting method:The main machine stops,then the cutting blade cut after measure the length;After finishing the cutting, the main machine body runs, and go on produce.
(2) The cutting blade material:GCR12,after hot treatment quenching HRC58-62℃
(3) Cutting length monitoring:Automatic length cutting
(4) Cut length tolerance:3±1.5mm
Controlling box:Panasonic brand
(1) Voltage:220V, 60HZ,3ph
(2) Automatic control length cutting
(3) Automatically count production
(4) The computer controls the length and quantity, and the control device automatically stops cutting to ensure the set production quantity.
(5) Accurately modify the length tolerance
(6) Control method: touch screen and button coexist
(7) Length unit: mm (length on the touch screen)
Forming machine body:
(1) The structure is simple and the appearance is beautiful. Because the whole machine adopts the steel structure and the whole processing after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable.
(2) Other important components of the equipment and components are used in well-known domestic enterprises, which effectively guarantee the performance of the equipment.
(3) It adopts fully automatic fixed length forming punching and cutting, precise positioning and positioning, and the shape of the head and tail is beautiful and tidy without deformation.
(4) The equipment is easy to install and debug, suitable for factory production.
(5) The equipment is low in noise and high in work efficiency.
Framing C Purline Rollformers

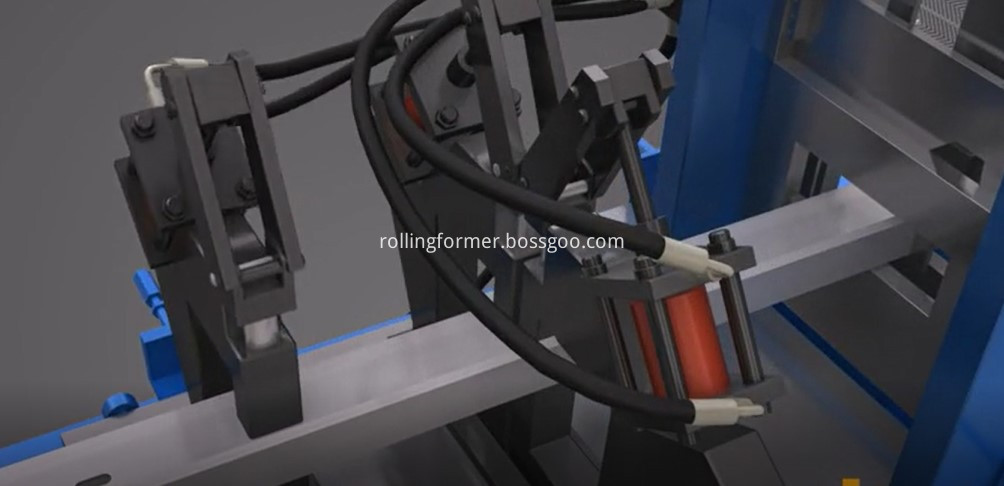

This is the holes punching system before cutting.

Framing C Purline Rollformers

This machine is with good price, i will send you a offer to your Email, also some machine running videos to your Email or through whatsapp.
