Wuxi high durable roofing panel roll forming machine

Unit Price: USD 10000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: ZT-ROOFING PANEL ROLLFORMER

Main Forming Machine Weight: 6.5 Ton

Main Forming Machine Size: 9.5m*1.8m*1.5m(L*W*H)

Voltage: 380-415 V

Controling: PLC

Color: Blue Or Can Be Painted As Your Required Color

Shaft Material: Cr12

Transmission: Double Chain With 1.2 Inch

Diameter: 80mm

Roller Station: 12 Stations

Main Motor Power: 15 Kw

Additional Info

Packaging: wuxi high durable roofing panel roll forming machine be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Wuxi durable roofing panel roll forming machine

For the roofing panel roll forming machine, there are trapezoidal profile roofing sheet, corrugated roofing sheet,glazed tile roofing panel, standing seam roofing panels. Our factory professional design and manufacturer the high quality roofing panel roll forming machines. Whats the difference between a high quality roofing panel machine and a low quality roofing panel machine? The high quality roofing panel machine, we used high qualtiy material for the rollers, the shafts,and cutting blade. For the chain, we use 1.0 inch high strength chain. For the power ,we used big power, for example, 7.5KW. For CNC controling system, we used the Panasonic PLC , which is more stable and durable.

Below are some surable roofing panel roll forming machines for your reference:

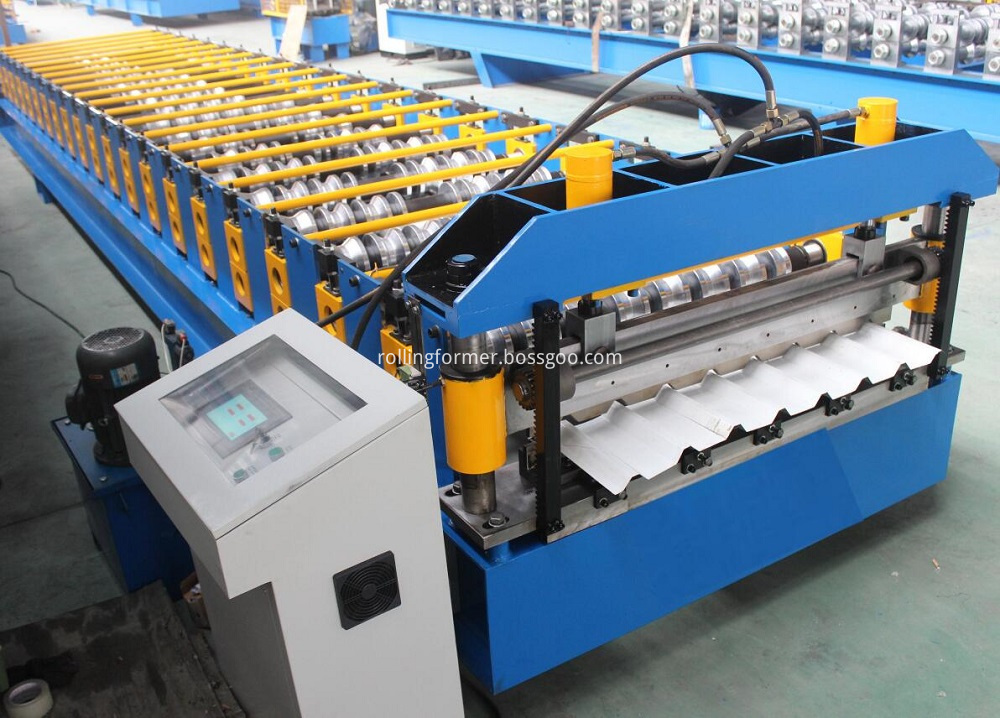

roofing panel roll forming machine 9


roofing panel roll forming machine 7 11


roofing panel roll forming machine

Machine line including 5 tons hydraulic de-coiler 1 set
Roll forming machine with protection cover 1 set
Cutting system 1 set
5 meters automatic stacker 1 set
Controlling box 1set
Hydraulic station 1 set
Receiving table 2 sets

roofing panel roll forming machine 6

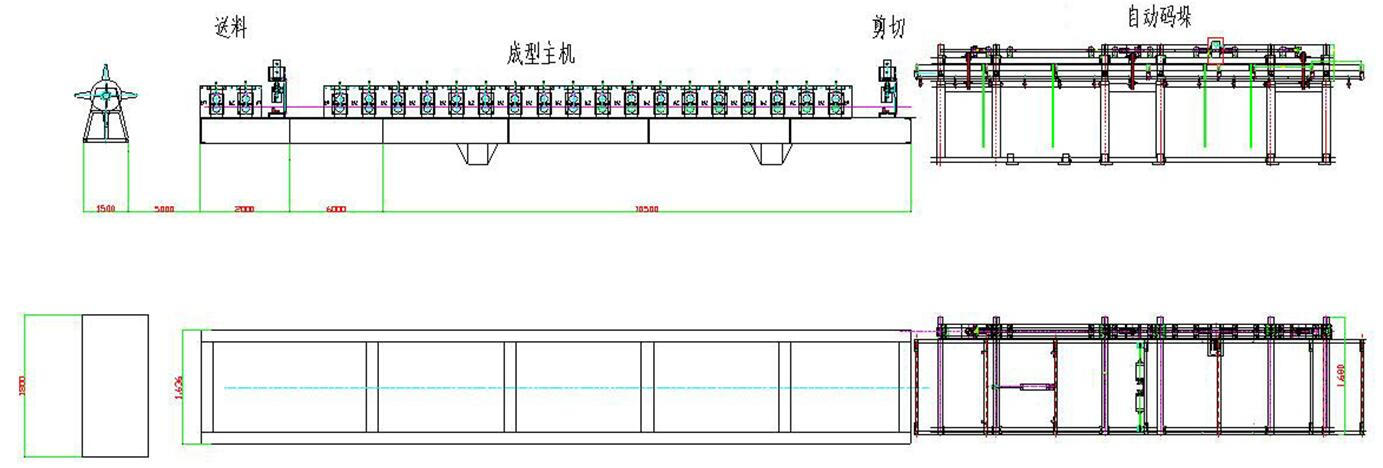

Panel rollformer working flow:

De-coiler -- Feeding --- Roll forming ---- Cutting-Stacking-Electric horizontal discharge structure –package

Panel rollformer working flow


Feeding width 1250mm
Machine speed 25-30m/min(including cutting time)
Sheet thickness 0,3--0,6mm,
Controlling  Panasonic PLC
7 ton hydraulic de-coiler  One set
Roll station 18 stations
Roller material Gcr15 steel after finishing, quenching HRC58-62 °C, surface chrome treatment
Shaft material and size 45# steel,diameter is¢76mm
Main power 7,5kw (servo power)
Cutting method Post cutting system
Hydraulic press 12Mpa
Cutting blade material Cr12Mov, quenching HRC 58-62℃
Length tolerance 3m±1.5mm
Voltage 380V, 50HZ,3Ph
transmission 1,2 inch chain
The structural  Memorial Arch structural
Machine color Blue
Machine size Length*width*height  11m*1.8m*1.0m
Delivery time 60 days

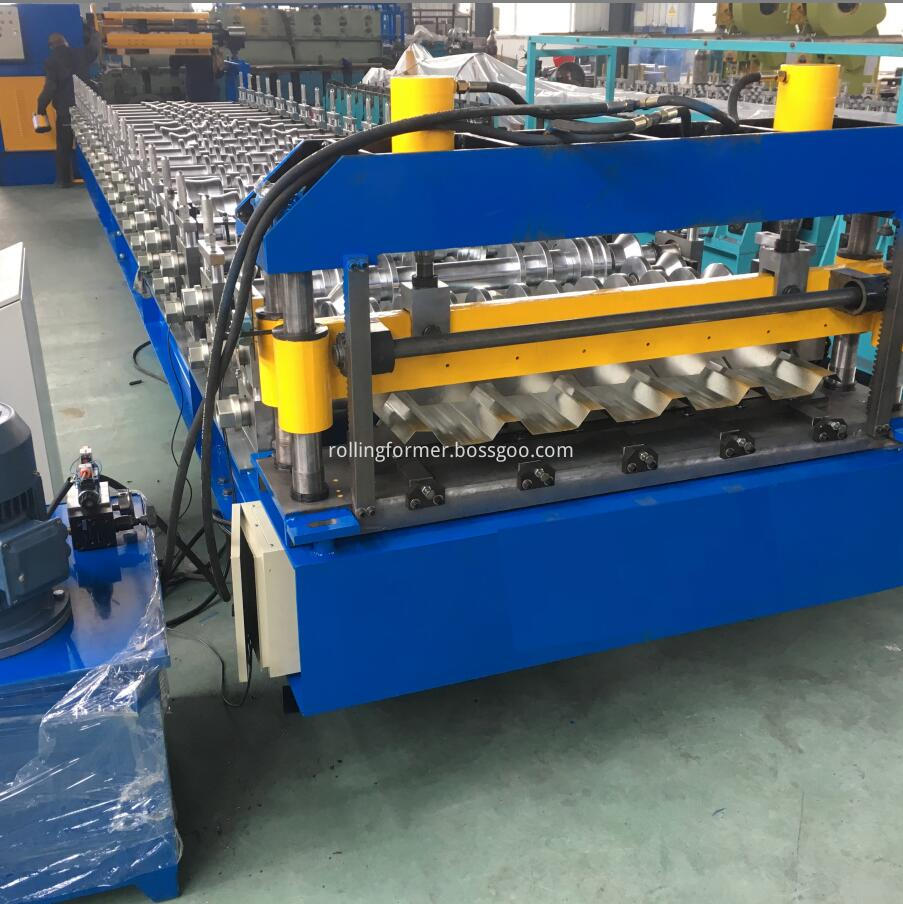

roofing panel roll forming machine 7


About the wuxi high durable roofing panel roll forming machine, if you want to know more about this machine, please feel free contact me please.

i will send you some machine running vidoes for your reference.

also we will design your machine and send you an offer with the prices for you.

High speed roofing sheet rollformer 11

High speed roofing sheet rollformer 10

Our factory is professional make the rollformer machines for the steel roofing, CZ purlines, steel framing strut, suspended ceiling channel, cable tray roll forming machine, shutter door rollformers, door frame rollformers, ridge cap roll forming machines and so on.

we can design the machines according to your requirements!


If you need this high speed and high quality glazed tile roll forming machine, i would like to send you some machine running videos and machine offer for your reference,

any inquiry about the machine , pelase feel free send me an inquiry.
