Steel framing rollformer C stud track rollformers

Unit Price: USD 10000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: AP-C Frame

Warranty: 2 Years

Certification: CE, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Controlling: Panasonic PLC

Memorial Arch Frame Thickness: 35 Mm

Roller Material: Cr12MoV

Shaft Material: # 45 Steel

Hardened Reducer: ZLY-160

Work Speed: 0-40 Meters/min

Transport: Gear Transmission And Chain Transmission

Type Of Cutting: Servo Tracking High Speed Cutting

Cutting Tolerance: ±1mm

Main Power: 11 Kw

Additional Info

Packaging: Steel framing rollformer C stud track rollformers be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Steel framing rollformer C stud track rollformers

Steel framing rollformer C stud track rollformers adopts CNC controling system, full line Steel framing rollformer C stud track rollformers is automatic running. Steel framing rollformer C stud track rollformers cutting device adopts the servo motor high speed cutting system. Steel framing rollformer C stud track rollformers can produce C studU track steel framing for suspended ceiling system, and drywall steel framing system. For the C stud and U track, it can be designed with punching holes device, punching logo device, high speed fly saw cutting device, and automatic receiving table system.

CU stud and track machine

Ceiling C stud and track rollformers  (7)

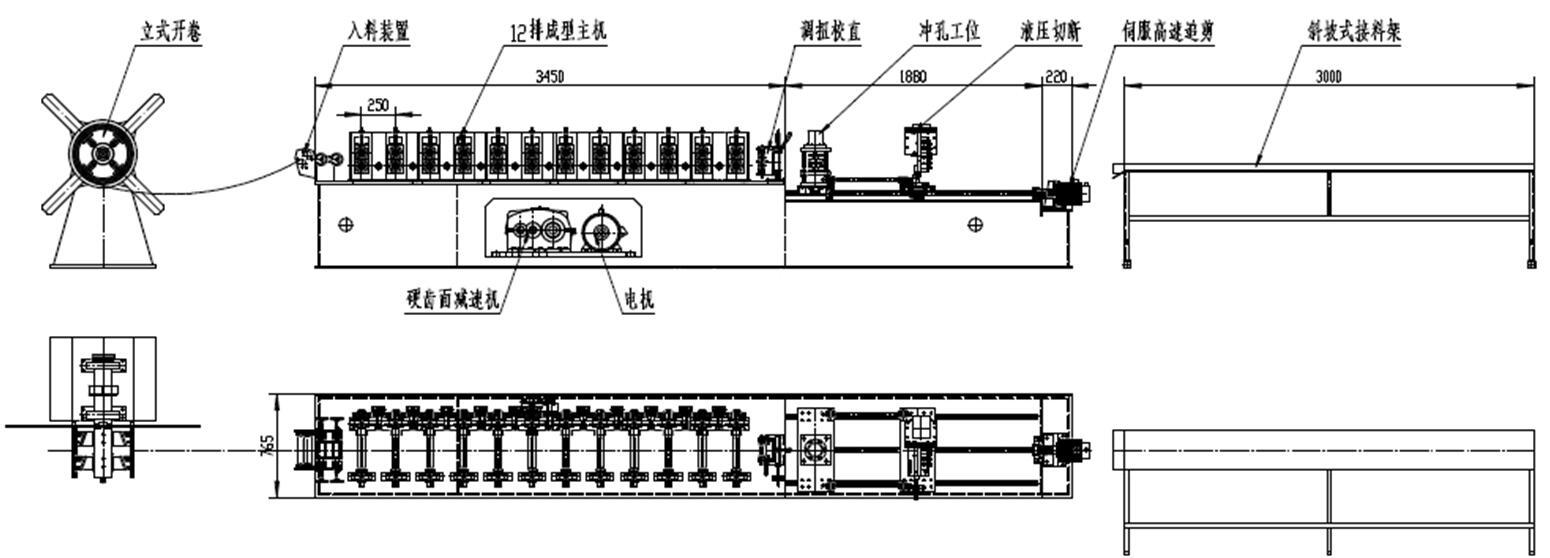

Steel framing rollformer C stud track rollformers whole line including below parts:

Hydraulic/manual decoiler,leveling system, feeding and punching holes,main roll forming machine,hydraulic cutting system and receiving system.

Steel framing rollformer C stud track rollformers

Ceiling C stud and track rollformers  (4)


Ceiling C stud and track rollformers  (6)

Ceiling C stud and track rollformers  (3)

Steel framing rollformer C stud track rollformers specifications as below:

Hydraulic Uncoiler

Inner Diameter 450-550 mm
Max coil out diameter max 1500mm
Max coil width 300mm
Carrying capacity 2 T

Ceiling C stud and track rollformers  (10)

Entry Beach

Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of the localization guidance. it can guarantee that the products are neat, parallel and everything is uniformity

Ceiling C stud and track rollformers  (7)

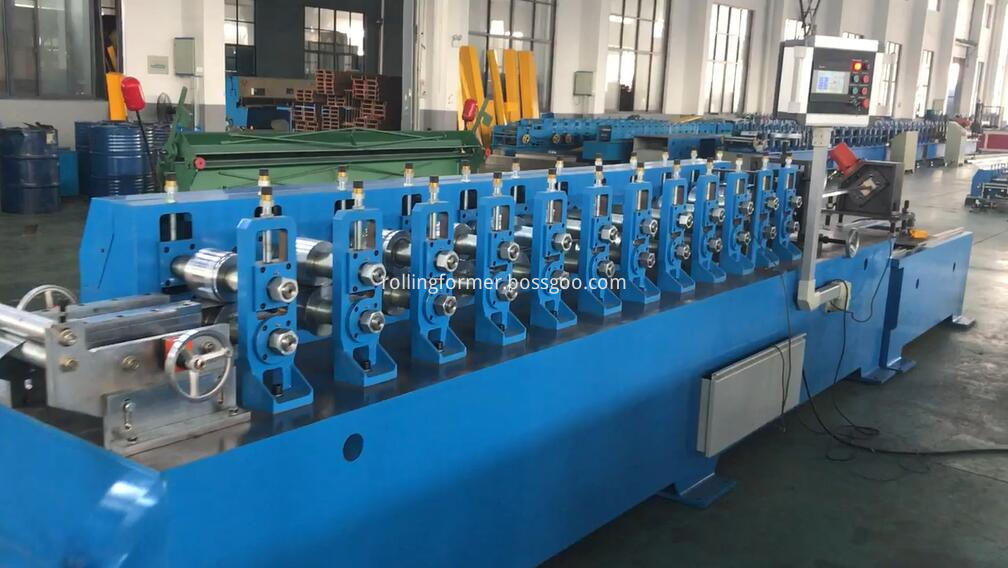

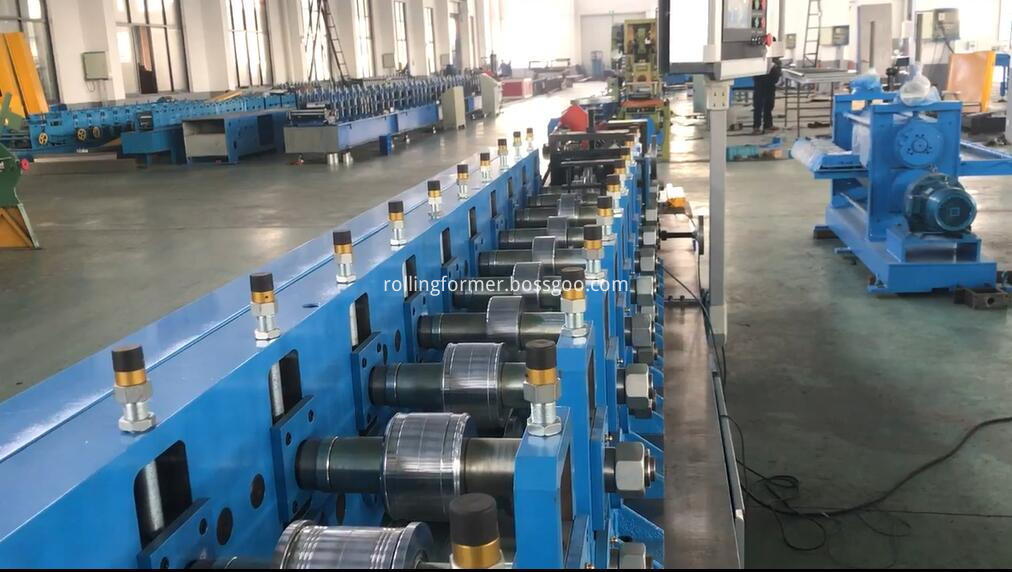

Main forming machine

Specifications Production C U
Forming steps 12 rollers
Memorial arch Frame Thickness 35 mm
Bearings Double bearings
Shaft diameter 50mm
roller material Cr12Mov
shaft material # 45 steel
Hardened reducer ZLY-160
Work speed Without punching 0-40 meters/min
With punching 0-30 meters/min
Transport Gear transmission and chain transmission
Type of cutting Servo tracking high speed cutting
Cutting tolerance ±1mm
Main Power 11 kw
Cutter Cr12Mov

Ceiling C stud and track rollformers  (6)

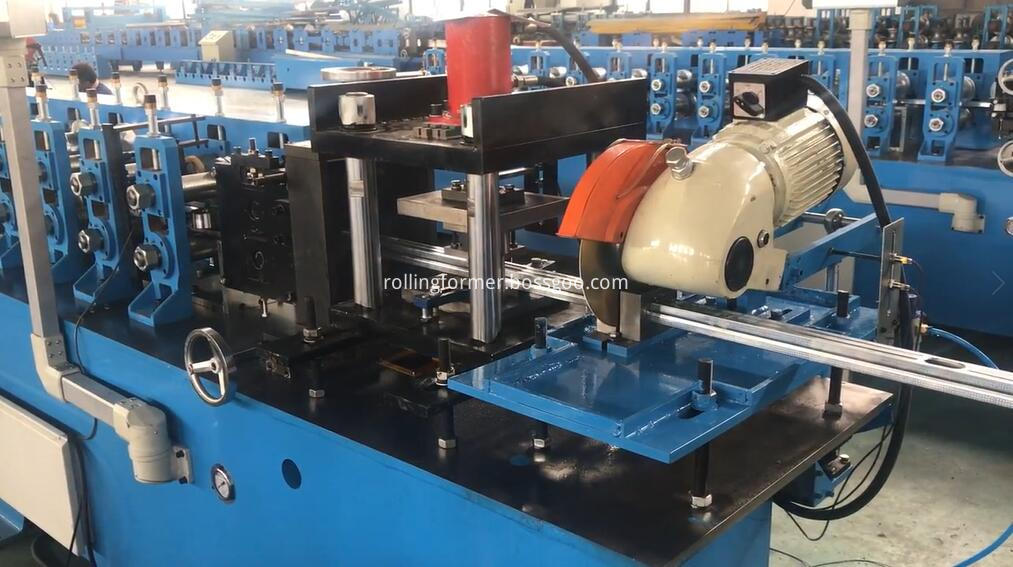

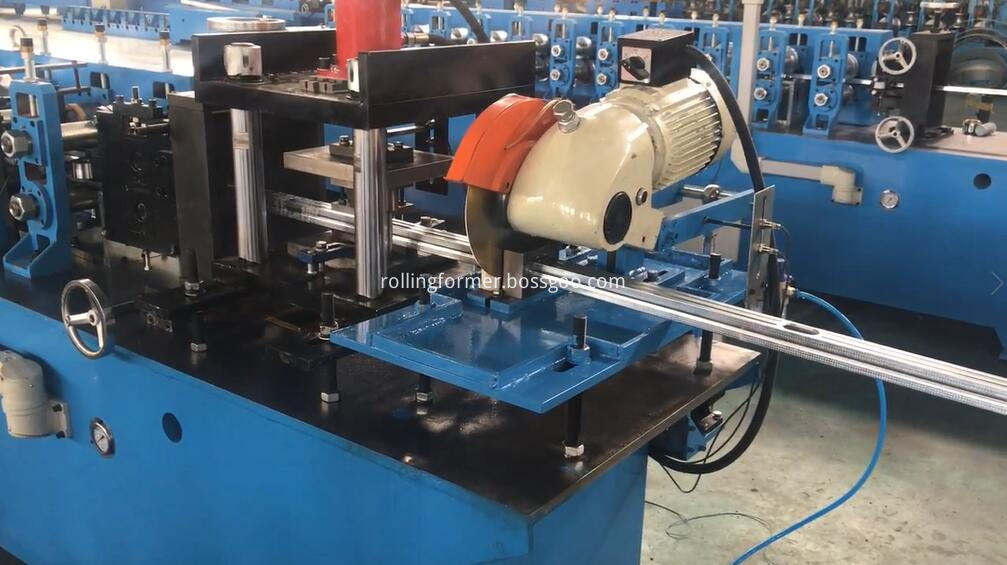

Cutting system:

Feature Ensure stability, precision and cutting speed
Function Automatic cutting controlled by PLC. It adopts the Servo tracking cutting and automatic location to decide the dimension and cut the target products.
Material of blades Cr12Mov
Power supply Hydraulic power
Components It contains one set of blade, one hydraulic tank and one cutter machine.
Servo Motor Power 2.3 kw

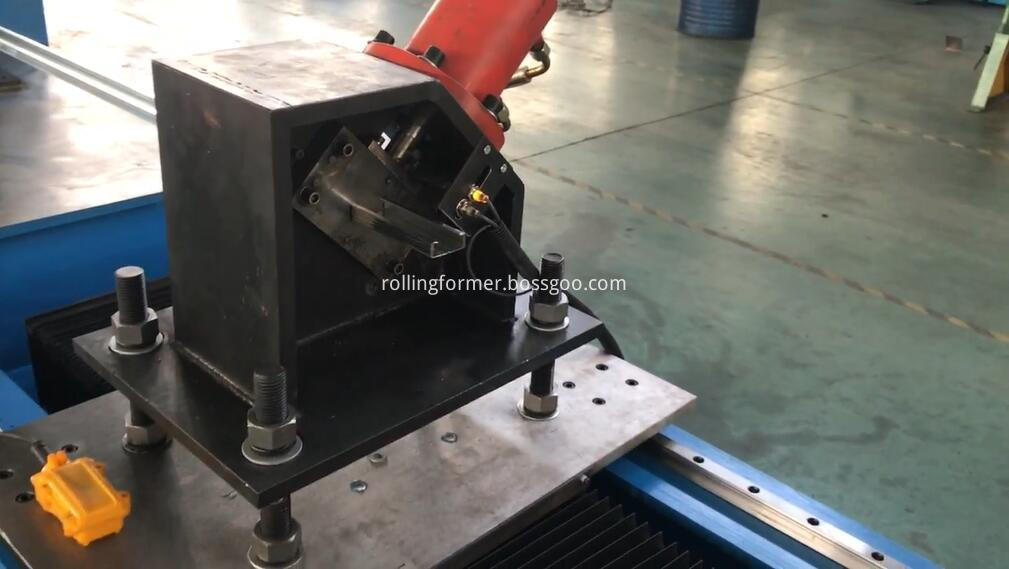

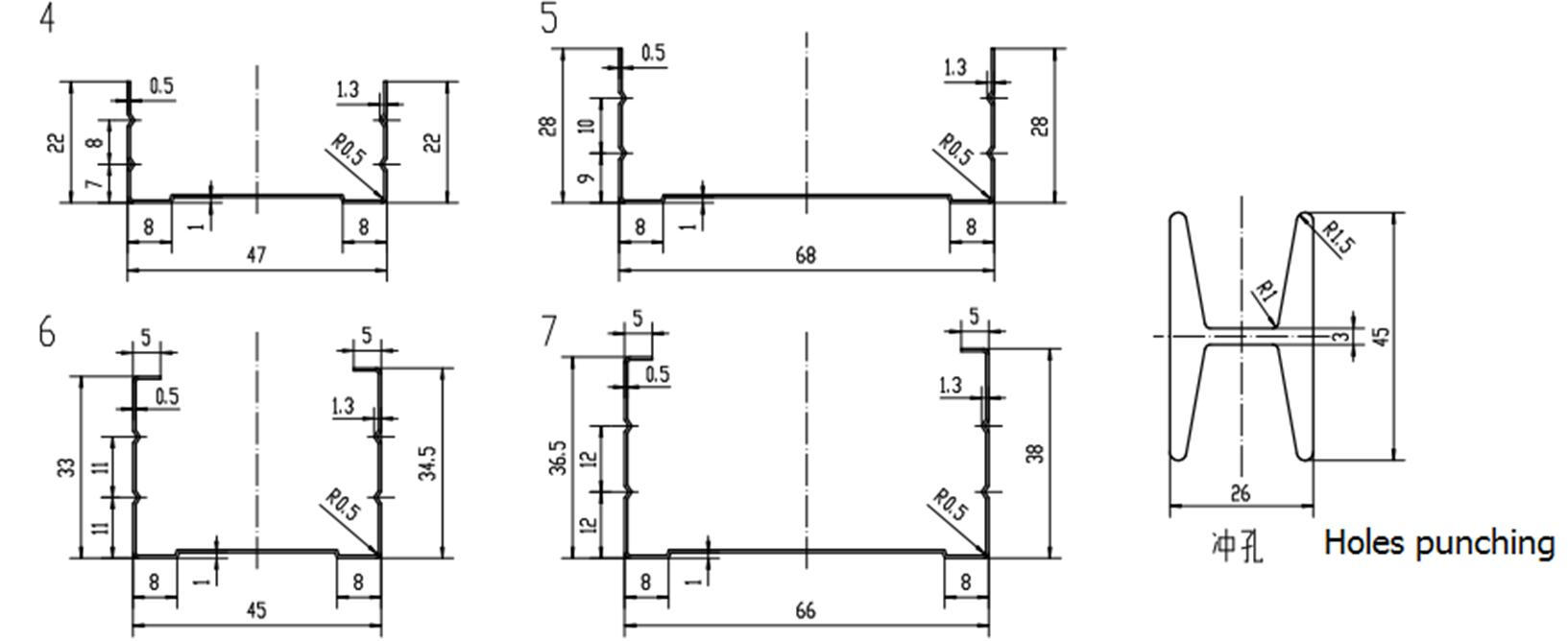

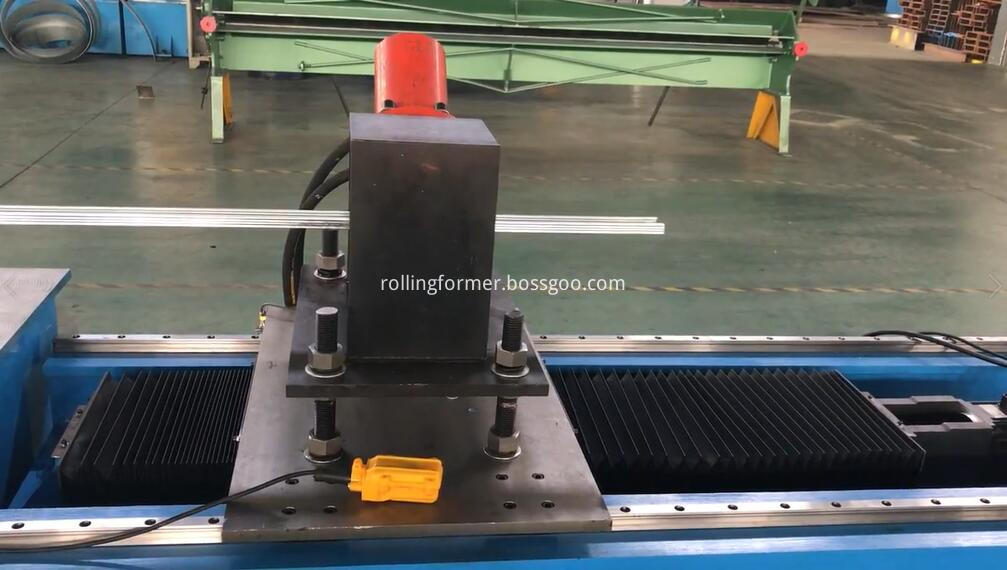

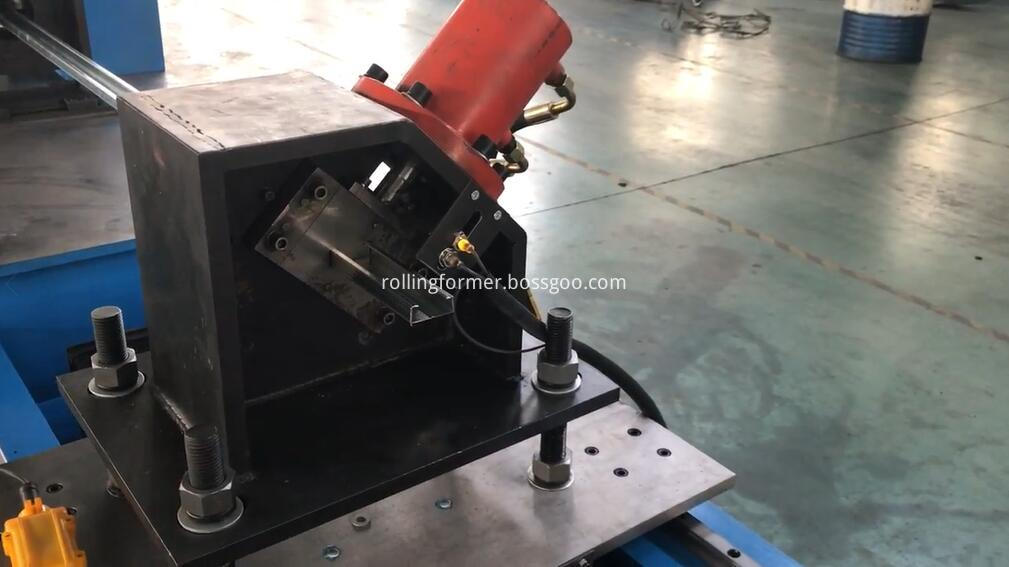

Punching holes H holes punching system
Feature Ensure stability, precision and cutting speed
Cutting blade 4 sets
Stroke switch non-contact photoelectric switch

Ceiling C stud and track rollformers  (8)

Ceiling C stud and track rollformers  (9)

Hydraulic stations:

Double motor Hydraulic Station Power 3 kw + 3.0 kw
Hydraulic oil 46#
Components The system includes a set of hydraulic tank, a set of hydraulic oil pump, 2 hydraulic pipes. And 1 set of electromagnetism valves.
Feature With wind cooling heat dissipation system

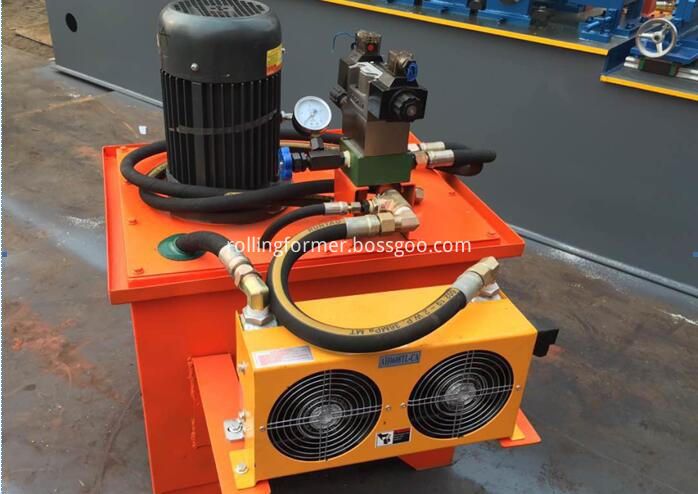

hYDRAULIC STATION OF THE cu STUD ANF TRACK ROLLFORMERS

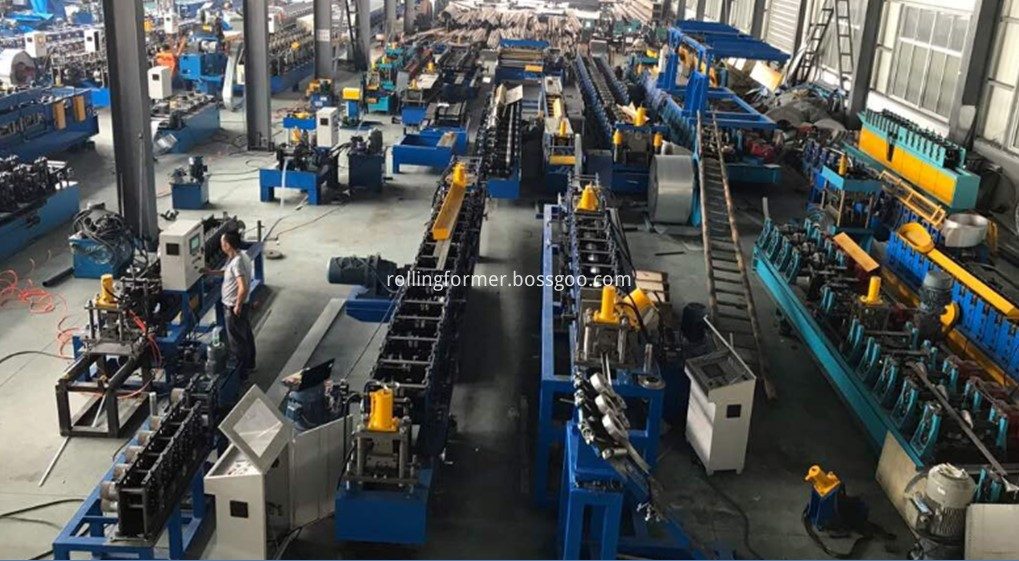

Our factory is professional making the steel framing machine, suspended ceiling channel C stud and U track rollformers, CZ purline rollformers, metal roofing sheet roll forming machine, cable tray roll forming machine, steel framing strut roll forming machine and other rollfoming equipments. We can design the machine according to your profile shape, drawing, thickness, and material, and any customed requirements.

If you want to know more about our roll forming machines, please feel free contact me, please!
