Shutter slats rollformer slats shutter roll forming machine

Unit Price: USD 10000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: AP-SLATS-ROLLFORMERS

Warranty: 2 Years

Certification: CE, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Specifications: 380-415 V

Forming Steps: 14

Memorial Arch Frame Thickness: 30 Mm

Shaft Diameter: 50mm

Roller Material: Cr12MoV

Shaft Material: # 45 Steel

Work Speed: 5-15 Meters/min

Transport: Gear Transmission And Chain Transmission

Type Of Cutting: Servo Tracking High Speed Cutting

Cutting Tolerance: ±1mm

Additional Info

Packaging: shutter door roll forming machine be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Shutter slats rollformer slats shutter roll forming machine

Shutter slats rollformer slats shutter roll forming machine is professional making the shutter door slats for the door system. There are different types of shutter door slats, so Our factory design the shutter door roll forming machine according to shutter door slats sizes and thickness, with holes or without holes, with perforated holes punching or hydraulic connecting holes punching system. The shutter door roll forming machine cutting system can be hydraulic cutting system or saw cutting system, depending on the material of the shutter slats. We design the cutting system with high technolpgy, cut the shutter slats without burring.

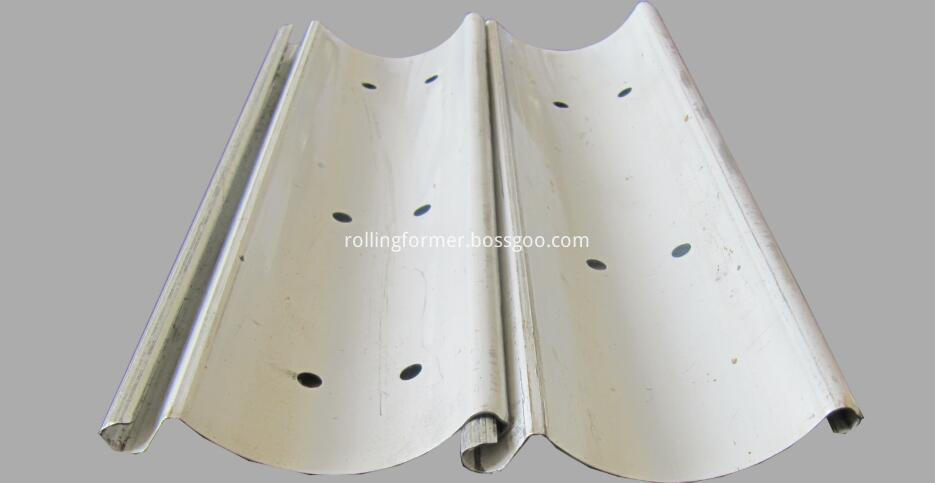

shutter slats rollformer

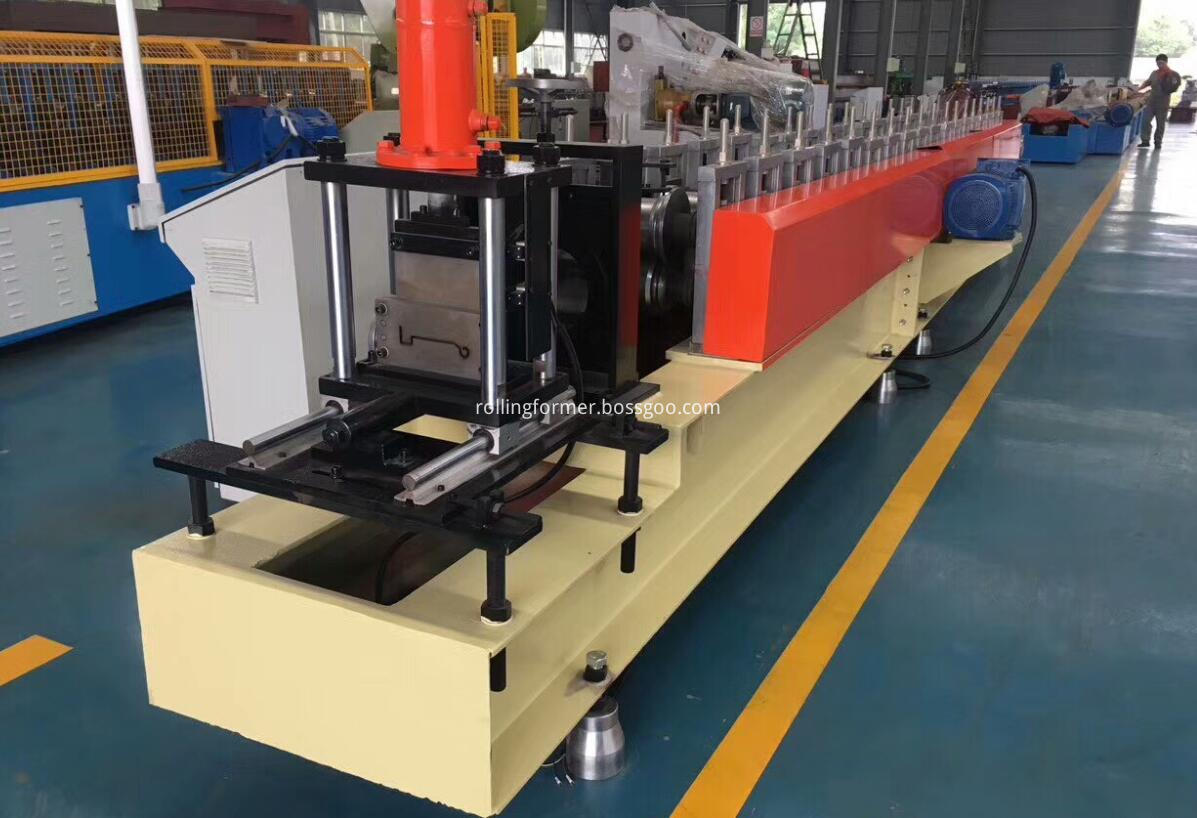

shutter door machine

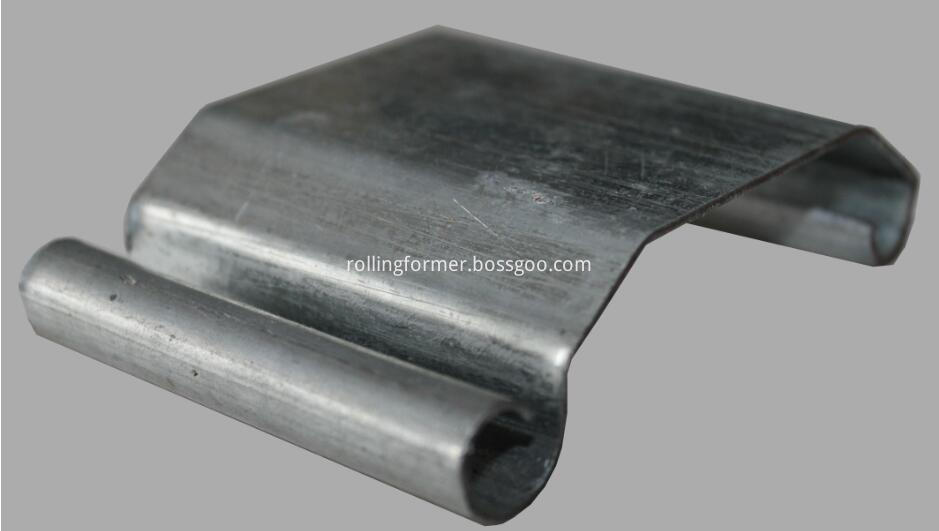

shutter slats rollformer


Shutter doors with walls as play a role in the level of separating. The shutter door is consists of the curtain plate, base bottom shutter door plate, rail, bearing U channel, reel, box, control box, roll door, stopper, lintels, manual switch means immediate release, push button switch and 13 parts safety device, etc.. Generally the shutter door is installed in the wall separating the inconvenience of using the site. Shutter doors are widely used for commercial facade, garage, shopping malls, hospitals, industrial enterprises and other public places or homes. Especially used in large doorway case , where it is inconvenient to install floor door convenience play, fast turn on action.

shutter door machines 8


The shutter door is divided by the opening way as below:


1. The manual shutter door. With shutter slat on the center axis of the torsion balance of power, to achieve the purpose of manually pulling the shutter.

2. electric shutter door. Rotation with a special motor to drive the shutter central axis, to shutter switch, when the motor is rotated to set upper and lower limit stops automatically. Shutter doors for motor are: Plug rolling door machine, O-Vol door, tubular roll door, fire door, inorganic double curtain doors, rapid roll doors machines.

There are different varieties of the shutter doors, such as ordinary shutter doors, wind shutter doors, fire shutter doors, fast shutter doors, electric Australian (Mute) shutter doors

Shutter doors are almost always in the company or shop shutter doors means, in fact, shutter doors in foreign countries have many years of history, and also the last ten years, began to slowly introduce our country, shutter doors have a good fire alarm function, high safety performance, and many food and pharmaceutical industries are also using the warehouse to isolate the shutter doors, shutter doors really visible place in terms of security.

shutter door machine 2

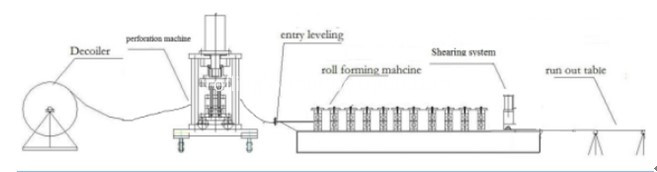

Process for the whole production line shutter slats rollformer slats shutter roll forming machine:

Decoiler --- perforation machine--- entry leveling---- roll forming machine---- shearing system--- run out table

shutter slats rollformer

The Perforated shutter door roll forming machine is formed as below steps. The un coiler system to support the coil and then then coil fed into the punching press machine to punching the holes on the shutter doors. Then the strips with the holes will be fed into the entry mouth to be leveled before into the roll forming machine roller stations. The main part of the perforated shutter door machine is the rollers roll forming machine. The feeding material will be bent little bu little by the rollers. There are about 10-15 rollers stations in the roll forming machine part. When the perforated shutter door is formed and then will run into the shearing system.The machine cutting system is controlled by the electric cutting system or the hydraulic cutting system. When the shutter door is cut into required length, the shutter door will be finished well and will be sent to the shutter door receiving table.

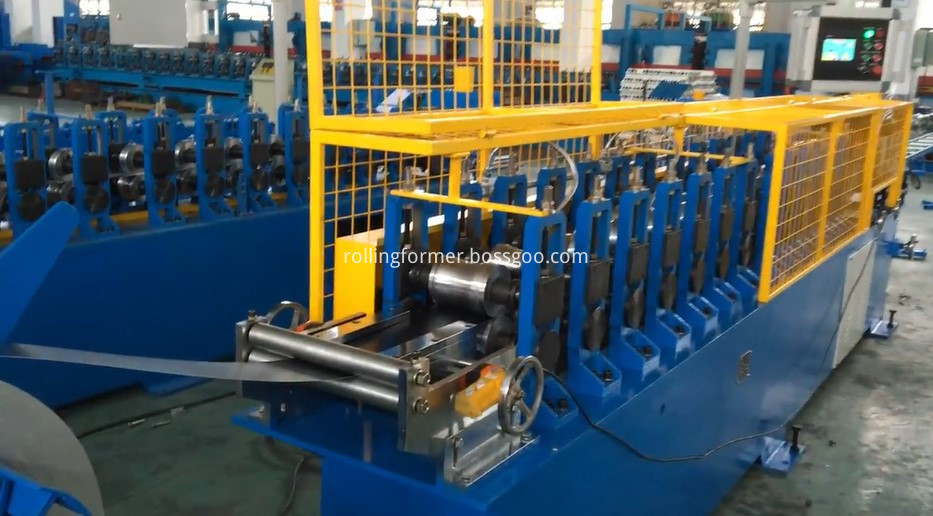

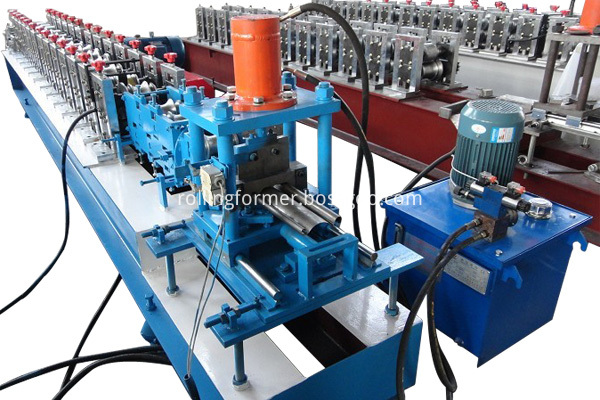

Below are some pictures of the machines:

shutter slats rollformer


shutter slats rollformer


Specifications of the shutter door shutter slats rollformer slats shutter roll forming machine is as below:

Specifications Production U
Forming steps 14
Memorial arch Frame Thickness  30 mm
Shaft diameter 50mm
roller material Cr12Mov
shaft material # 45 steel
Work speed 5-15 meters/min
Transport Gear transmission and chain transmission
Type of cutting Servo tracking high speed cutting
Cutting tolerance ±1mm
Main Power 5.5 kw
Cutter Cr12Mov
Voltage 380 V(As customer's requirements)

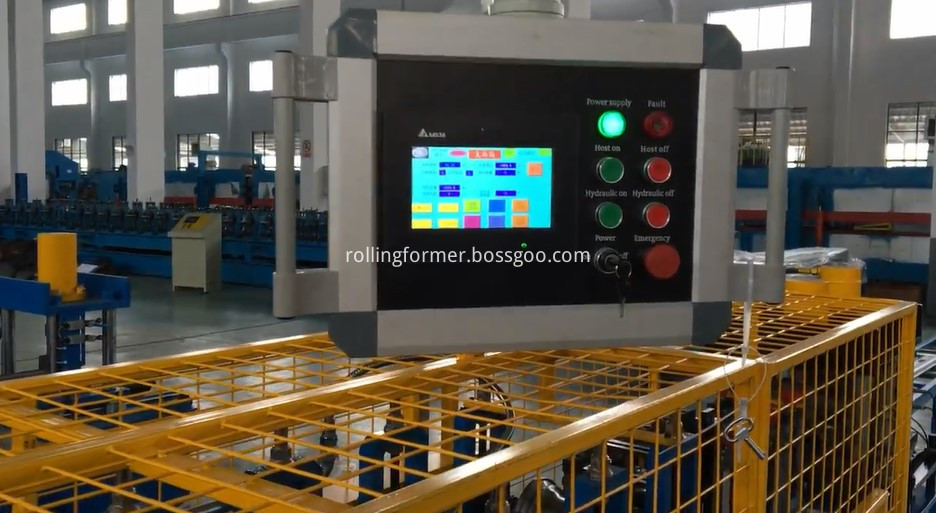

shutter slats rollformer

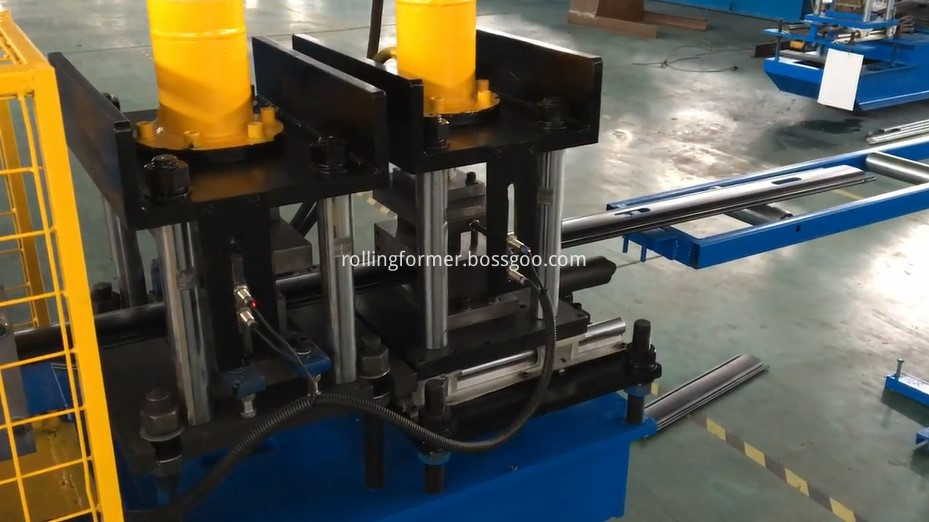

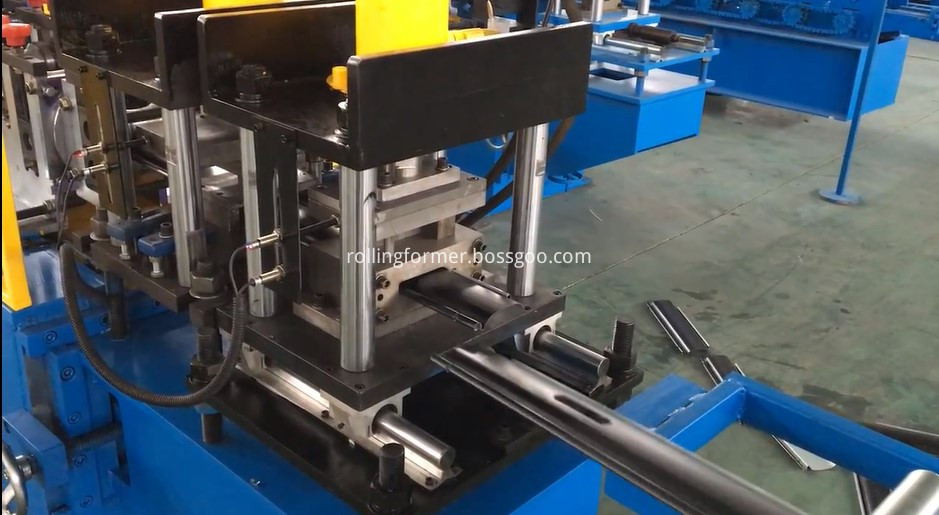

Cutting system of the shutter door rollformers
 shutter slats rollformer slats shutter roll forming machine

Function Automatic cutting controlled by PLC. It adopts the Servo tracking cutting and automatic location to decide the dimension and cut the target products.
Material of blades Cr12Mov
Power supply Hydraulic power
Components It contains one set of blade, one hydraulic tank and one cutter machine.
Servo Motor Power 1.2 kw
Feature  Ensure stability, precision and cutting speed
Stroke switch  non-contact photoelectric switch

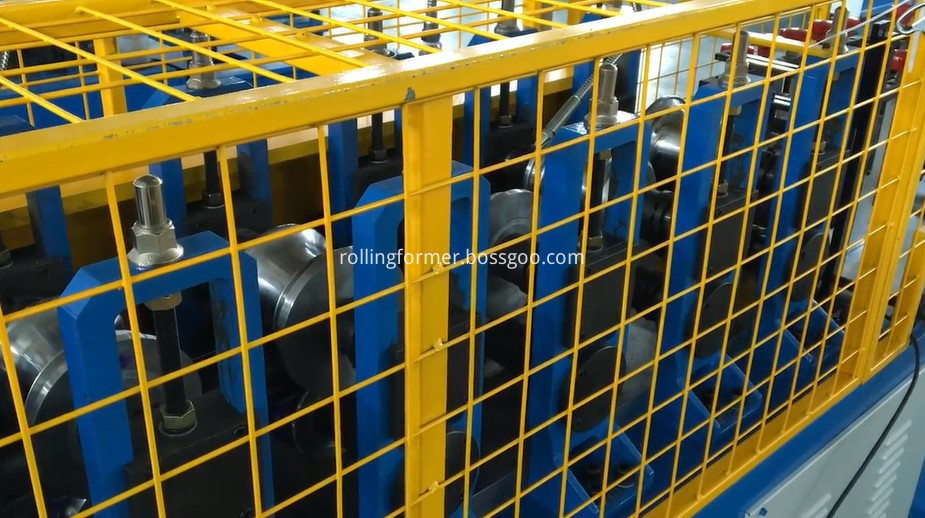

shutter door machine 6



shutter door machines 8

Our factory is professional make the rollformer machines for the steel roofing, CZ purlines, steel framing strut, suspended ceiling channel, cable tray roll forming machine, shutter door rollformers, door frame rollformers, ridge cap roll forming machines and so on. If you need any machine , pelase feel free contact me, please!

we can design the machines according to your requirements!
