Basic Info

Model No.: AP-Taper

Usage: Tube End Forming, Tube Diameter Reducing

Machine Name: Tube Reducer End Forming Machine

Machine Color: Can Be Customized Made

Tube Reducer Diameter Range: 40,60,80,and Can Be Customized

Tube Expander Diameter Range: 40,60,80,and Can Be Customized

Tube End Tamper Diameter Range: 40,60,80,and Can Be Customized

Tube End Former Machine Weight: 1200Kg

Tube End Former Machine Size: 1000x1500x1500

Tube End Former Machine Working Speed: 110mm/4 Sec

Tube End Former Machine Working Distance: 120mm

Additional Info

Packaging: Tube reducer end former line will be packaged by plastic film and then put into the wooden box and then loaded into the container

Productivity: 110mm/4 sec

Brand: AP

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 50 sets/month

Certificate: CE,ISO

HS Code: 84629910

Port: Shanghai Port,Zhanhjiagang Port,Tianjin Port

Product Description

Taper pipe end cone former machine taper machine

Taper pipe end cone former machine taper machine is used to make the end cone and taper on the machine end part. Taper pipe end cone former machine taper machine is also belong to the endformer machines. Same as the tube end diameter reducing machine, tube end diameter expanding machine, it is setted with the suitable mold to work on the tube, so that the tube end will change to the needed cone, taper shape. This kind taper making machine is widely used in daily working.

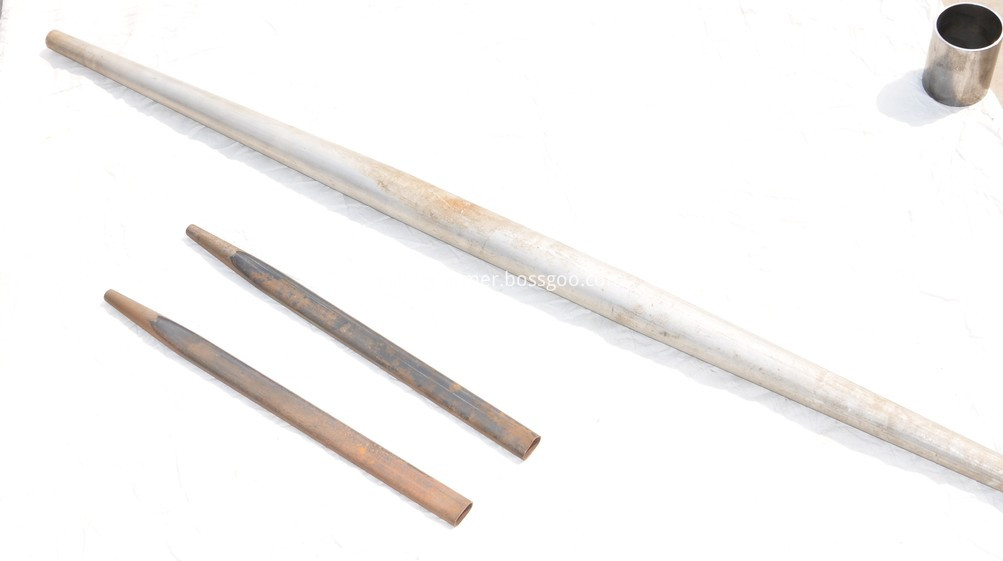

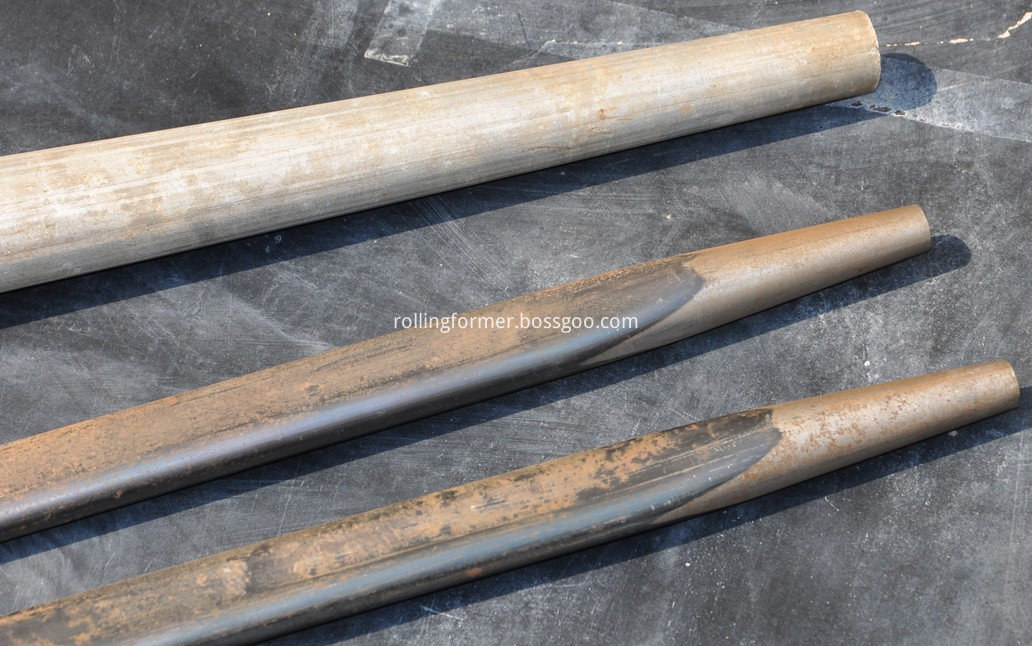

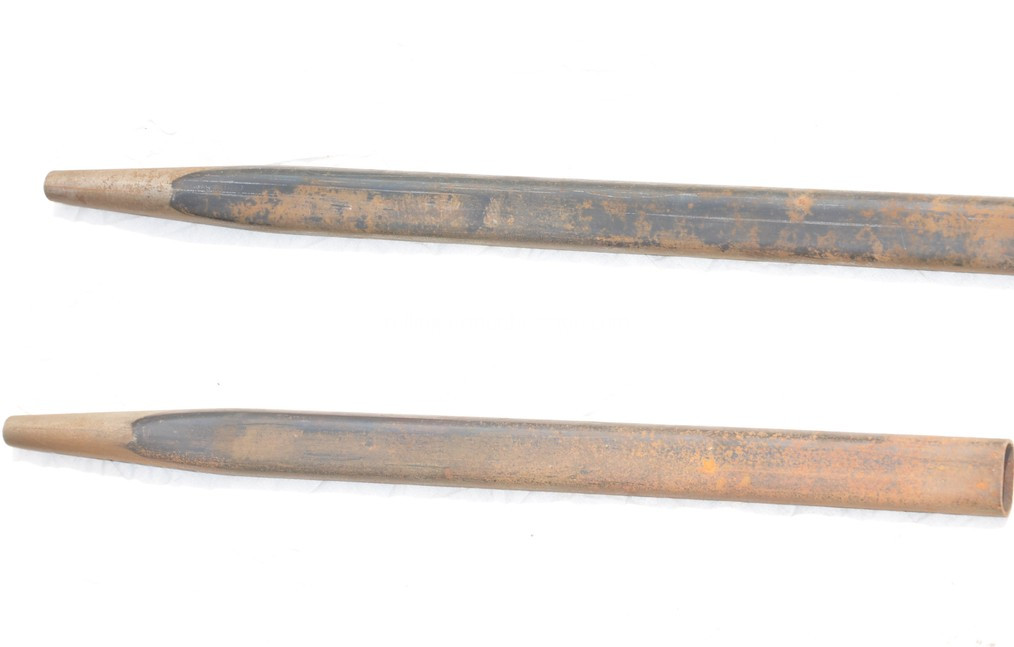

Below are some pictures of the end cone taper.

The Taper pipe end cone former/taper tube end forming machine/Pipe Tapering Machine specifications is as below:

1.Applicable material indlucing below material: Carbon steel, stainless steel,aluminum, alloy, copper,brass and so on.
2.Taper pipe end former machine is Microcomputer controlling, hydraulic driving
3.Pipe taper machine Automatic and manual operations are avaiable
4.The language is common English or Chinese subtitles, If you need other language, we can customized the language for you. man-machine conversion operation, easy.
5.The taper making machine is Adopting linear sliders rail, stable propulsion
6.taper tube end forming machine is High accuracy and efficiency.
Pipe tatering machine Model Units ZSG50NCB Taper Pipe End Forming Machine
tube tapering machine pipe-forming capacity mm 50x2
Max pipe-forming length mm 300
Processing speed Sec 7-30
Motor kw 4
Size mm 2770*900*1350
Weight kg 2125
Remark: Taper Pipe End Forming Machine

The specifications of the taper making machine tube taper ending forming machine is as below:

Model 50: Maximum tube reducing capacity is 50x2, Maximum tube reducing and embossing length is 280mm. The taper making machine motor power is 5.5 KW

Model 60: Maximum tube reducing capacity is 60x2,Maximum tube reducing and embossing length is 350 mm.The taper making machine motor power is 7.5 KW

Taper pipe end cone former machine taper machine is with the multifunction production, it is developed and take in the abroad advanced technology. It can be reduce the tube end to achieve the tube end forming function, also it can emboss the tube, it is one perfect tube embossing machine to achieve the end forming not only reducing, but also embossed with any pattern you like, such as your factory logo and so on. The taper making tuben embossing machine use 1 set mold to process different caliber pipes when is reducing and embossing the tubes. And it also used hydraulic automatically feeding, which can be save cost and time, It has greatly improve production efficiency. It is most ideal processing machine.
