Model No.: AP-60-reduce tube endformer
Usage: Tube End Forming, Tube Diameter Reducing
Machine Name: Tube Reducer End Forming Machine
Machine Color: Can Be Customized Made
Tube Reducer Diameter Range: 40,60,80,and Can Be Customized
Tube Expander Diameter Range: 40,60,80,and Can Be Customized
Tube End Tamper Diameter Range: 40,60,80,and Can Be Customized
Tube End Former Machine Weight: 1200Kg
Tube End Former Machine Size: 1000x1500x1500
Tube End Former Machine Working Speed: 110mm/4 Sec
Tube End Former Machine Working Distance: 120mm
Packaging: Tube reducer end former line will be packaged by plastic film and then put into the wooden box and then loaded into the container
Productivity: 110mm/4 sec
Place of Origin: China
Supply Ability: 50 sets/month
HS Code: 84629910
Port: Shanghai Port,Zhanhjiagang Port,Tianjin Port
Pipe diameter reducing tool reduce tube diameter endformer is a new type tube processing machine, which is used to reduce the tube diameter, or expand the tube diameter, or seal and close the tube end, or make the tube taper end for different fields usage. The tube reducing machine, tube end expanding machine, tube end tampering machine are all belong to the tube endformers. The fuction is same to change the tube end diameter, and shape. The pipe reducer toll, pipe expander machine, tube tamper machine are all with different shapes of molds, so that the tube end diameter are with different changes. Below are some pictures for the tube ends for your reference and understanding:
The Pipe diameter reducing tool reduce tube diameter endformer is widely used with the tube bending machine, tube cutting machine , and the high frequency tube welding forming machine line. These tube processing machine lines are for the tube forming, tube shape second forming for special usage, for example the automobile exhasut, the office metal chair, the stair railing, the furniture, the gym equipments and so on.

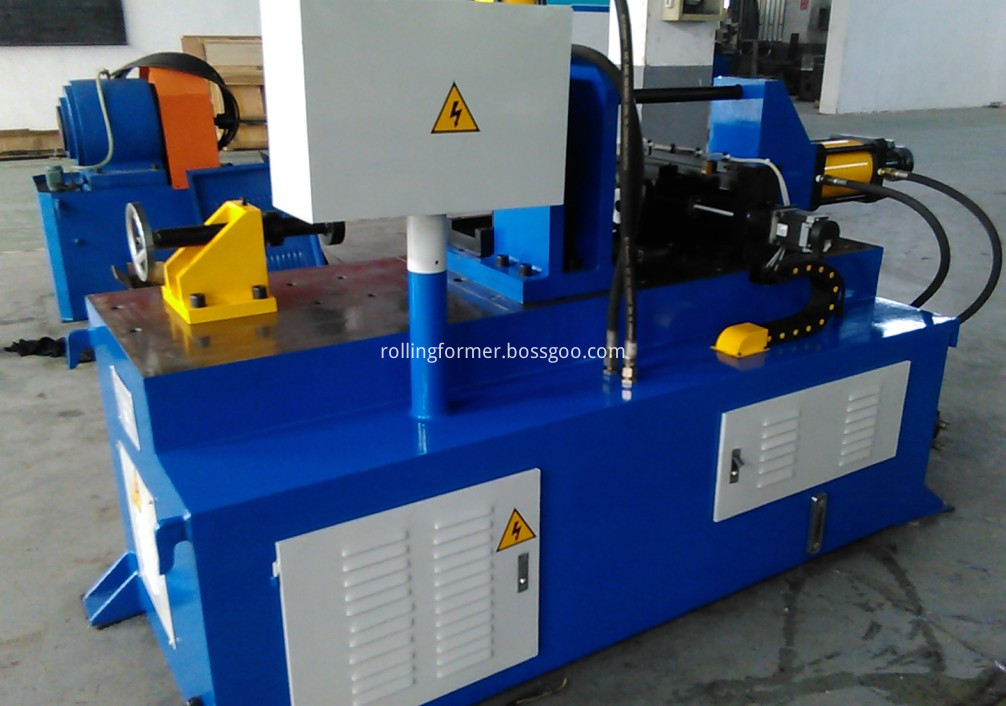

Here are some pictures of the tube reducer tube end forming machine line for your reference:
The Pipe diameter reducing tool reduce tube diameter endformer Tube diameter reducing machine tube endformers machine can process the tube diameter as customer's requirements, here i list some common diameter size specifications for your reference:
High Quality Pipe diameter reducing tool reduce tube diameter endformer Tube diameter reducing machine tube endformers machine
Main shaft center
height:150mm(distance between the center and the table sureface)
2.Outside or inside spinning
3.Rotating speed on the main shaft
Easy And Stable Pipe diameter reducing tool reduce tube diameter endformer Nc Control Tube diameter reducing machine tube endformers machine Tube End Forming Machine Equipment
1.pipe endformer, with the straight guide roller as the carrier,can run without abrasion, and the products have a good repeatability, which are fir for the treatment of the pipe=end in the iron pipes, furniture, automobile air conditioners and fuel oil pipes.
2.Mam forming length 110mm
3.5-6 s pipe contracting cycle
Pipe diameter reducing tool reduce tube diameter endformer Tube diameter reducing machine tube endformers machine
1.Applicable material: Carbon steel, stainless steel,aluminum, alloy, copper,brass and so on.
2.Microcomputer controlling, hydraulic driving
3.Automatic and manual operations are avaiable
4.English or Chinese subtitles, man-machine conversion operation, easy.
5.Adopting linear sliders rail, stable propulsion
6.High accuracy and efficiency.
Machine Model Units ZSG50NCB Taper Pipe End Forming Machine
Max pipe-forming capacity mm 50x2
Max pipe-forming length mm 300
Processing speed Sec 7-30
Motor kw 4
Size mm 2770*900*1350
Weight kg 2125
Remark: tube reducer, tube expander,Taper Pipe End Forming Machine

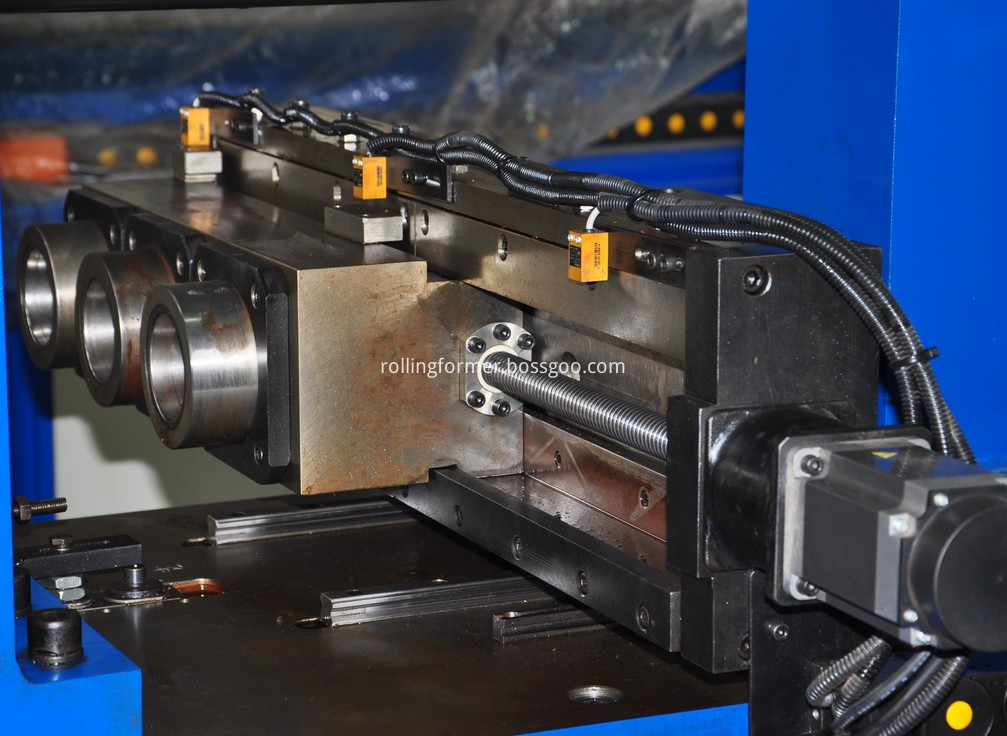

This Pipe diameter reducing tool reduce tube diameter endformer Tube diameter reducing machine tube endformers machine is 3 stations, that is to say, there are 3 station can work to change the tube diameter, so that the improve the work effience.
The size of tube reducer, we often manufacture is 60mm, 80mm. 120mm, and so on other other diameter size, any size, we can design according to your requirement.
The is a feet pedal on the Pipe diameter reducing tool reduce tube diameter endformer Tube reduction machine pipe reducers pipe reducing union tube diameter Tube diameter reducing machine tube endformers machine, so you can start the machine, or stop the machine immediately.
If you want to own your own tube end forming tube reducer, tube expanding machine, tube end taper forming machine, we can design the machine for you. you only need to handle your hand to send us an Email, then we will feedback you the machine designing solution, the quotations, and relater machine line pictures, and realted machine running vidoe to you.
Thank you so much for your reading, lookong forward to your inquiry letter!
