Double station holes profile channel punching machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Delivery Time: 20 Days

Basic Info

Model No.: AP-Double puncher

Condition: New

Customized: Customized

Theory: Inverter

Application: Industry, Decoration

Type: Other

Hydraulic Oil Tank Standard: R0100-R0200

Oil Working Processing: 100-200

Machine Controlling System: PLC Touch Screen Controlling

Machine Voltage: Common 380V/50HZ Or Be Customized According To Requirement

Common 380V/50HZ Or Be Customized According To Requirement: 6000mm

Servo Motor Power: 750-2000

Maximum Feeding Speed: 800mm/s

Precision: ±0.1

Power: 5.5-18.5KW

Processing Thickness: 0.5-14mm

Additional Info

Packaging: plastic film packages then put into wooden box and then loaded into coantiner.

Productivity: 10 sets/month

Brand: AP

Transportation: Ocean,Land

Place of Origin: China,Jiangsu

Supply Ability: 10 sets/month

Certificate: CE,ISO

Port: Shanghai Port,Zhangjiagang Port,Shandong Port

Product Description

Double station holes profile channel punching machine

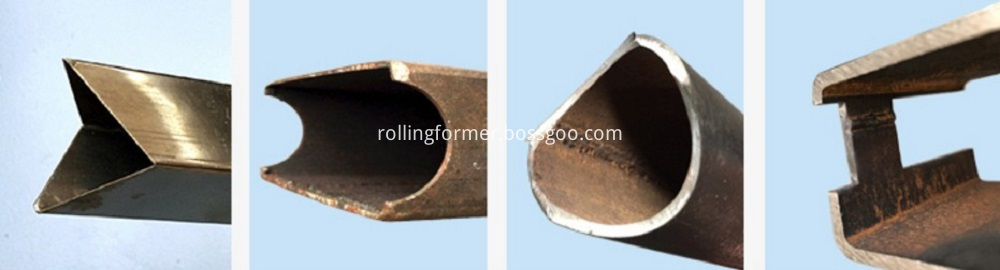

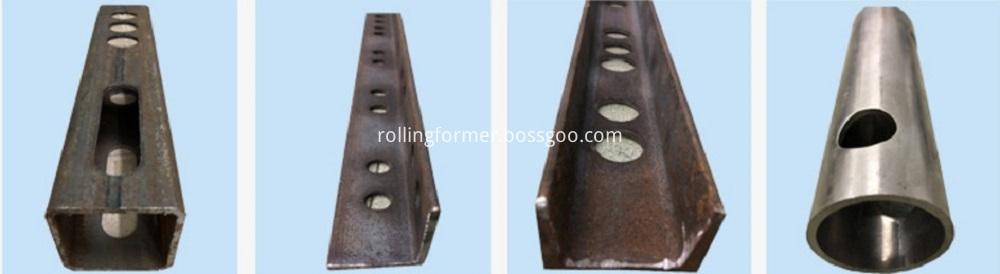

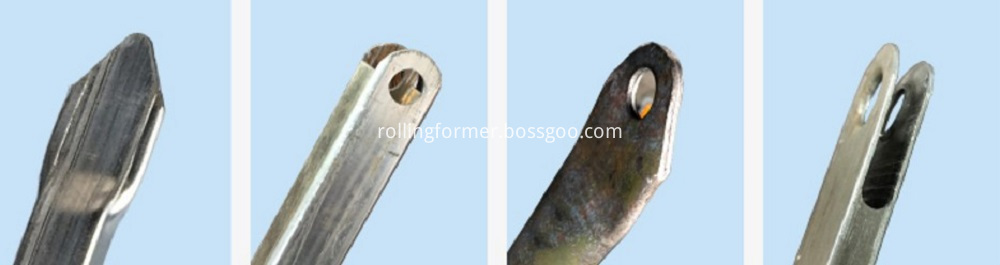

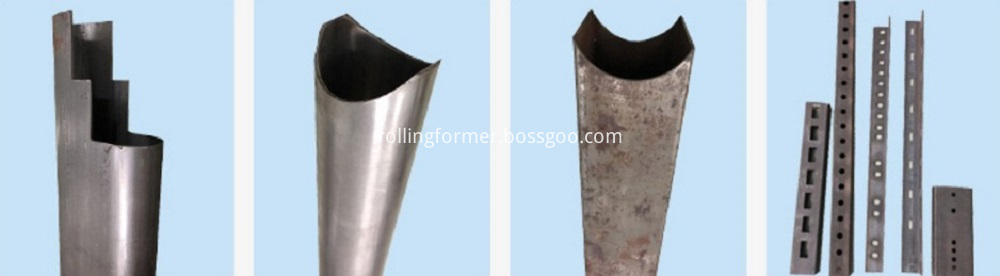

Double station holes profile channel punching machine is a customized  multicylinders punch machine. Double station holes profile channel punching machine is widely used to punch steel tube, stainless steel tube, iron pipe, aluminum alloy,aluminum window and door frame,copper tube,GI C Purline, Metal angle and so on. The holes shapes of tube punching can be round holes, square holes rectangle holes and oval holes.
double punching machine

tube punching machine 5

tube punching 6

profile punching machine

square tube punching machine

There are manual tube hole punching machine and full automatic tube hole punching machine. The Double station holes profile channel punching machine is driven by hydraulic power, automatic feeding steel pipe, The tube/profile holes punching machine can be customized design according to customer's requirements. The molds can be changed to achieve different types hole punching working in one set machine just through adjusting or changing the punching molds.

square tube punching machine


square tube punching machineg


square tube punching machine



Machine characterics features:
1 Automatic CNC punching machine is powerful and suitable for punching various metal materials such as pipes and plates. It can be customized according to the needs of customers. High efficiency, high precision, and more labor saving.
2 Famous servo brand, the servo motor stability is high, and high precision,finishing the holes in exactly sizes.
3 User-friendly human-computer interaction screen is easy to understand. Built-in memory function to store multiple sets of data.
4 Machine frame is heavy and with thick metal to avoid the Error caused by machine vibration.
5 Mold is designed in the thought of 100% safety, Using the importing DC53,W6 metal materia, More durable, smooth and burr-free.
6 Professional team to support the after sale, the installation,the training and so on.
rectangular tube punching machine

rectangular tube punching machine

rectangular tube punching machine


rectangular tube punching machine

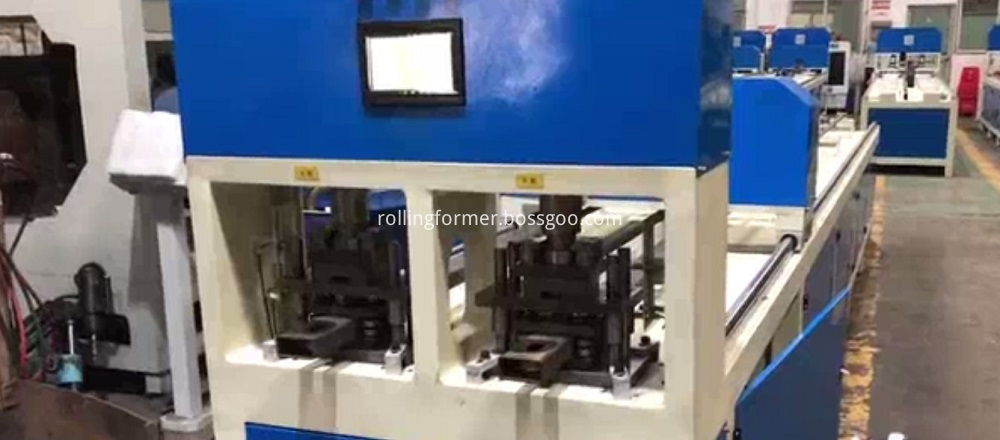

Rectangular tube punching machine working out big oval holes on the tube.The double station punching designing work stable for the big capacity.

rectangular tube punching machine

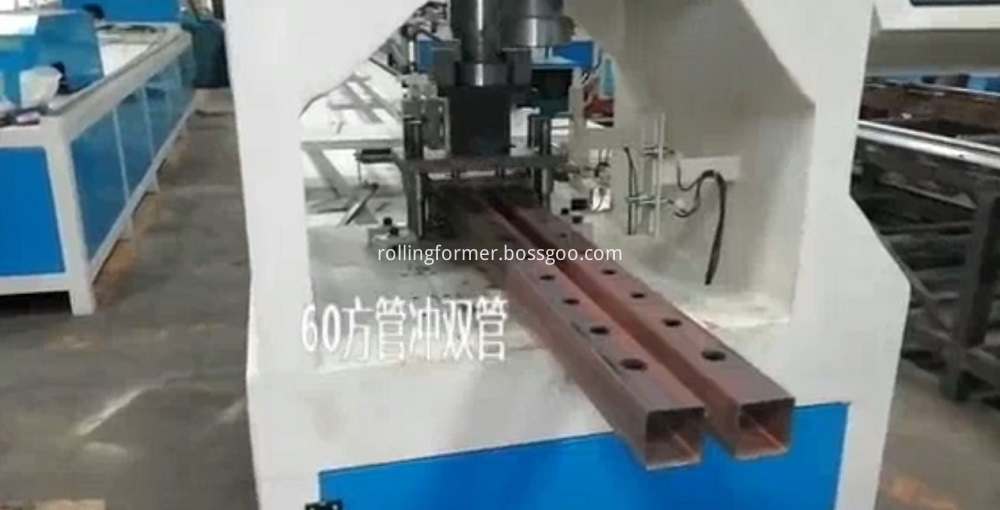

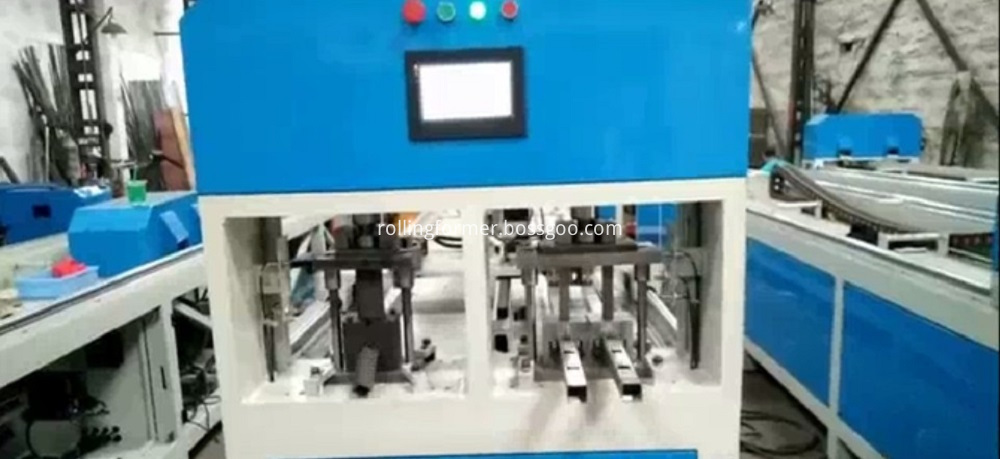

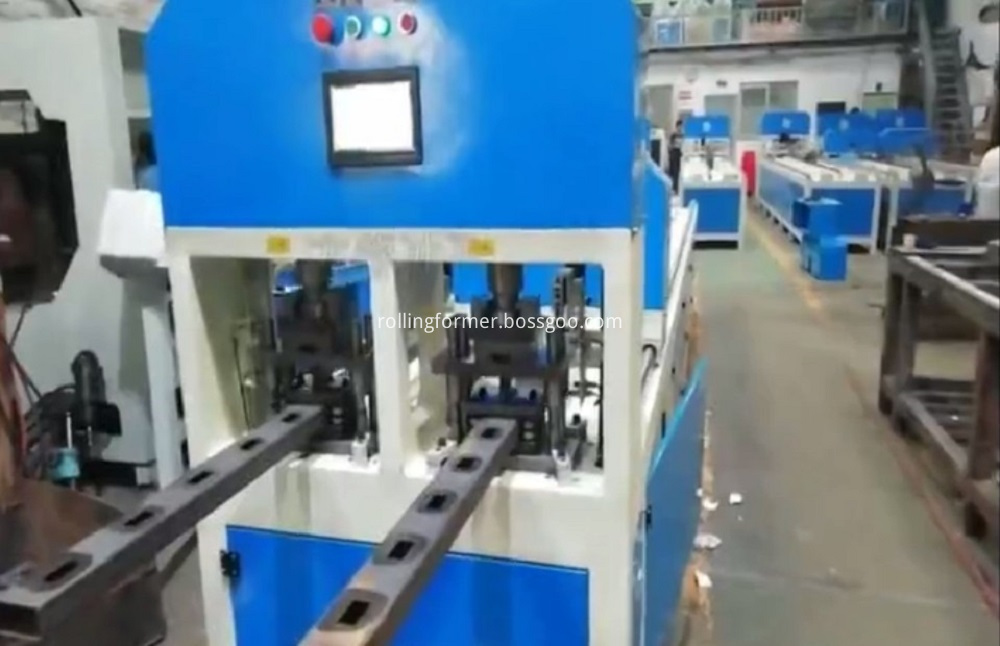

This is the square tube double station punching machine line. The whole punching machine line working full automaticly, the automatic feeding, punching.The two stations working at same time, 2 times improve the working capacity, also the double production can save much working place, so it is perfect solution for smalll space workshop.

Double station holes profile channel punching machine Machine specifications:
Hydraulic oil tank standard:R0100-R0200
Oil working processing:100-200
Machine Controlling system: PLC touch screen controlling
Machine voltage: Common 380V/50HZ or be customized according to requirement.
Maximum material length: 6000mm
Servo motor power:750-2000
Maximum feeding speed:800mm/s
Precision: ±0.1
Power:5.5-18.5KW
Processing Thickness:0.5-14mm
Clamping type:Hydraulic clamping system
Feeding and receiving:Manual
Machine size:7100x800x1650
Machine wight:1300-2500Kg

rectangular tube punching machine

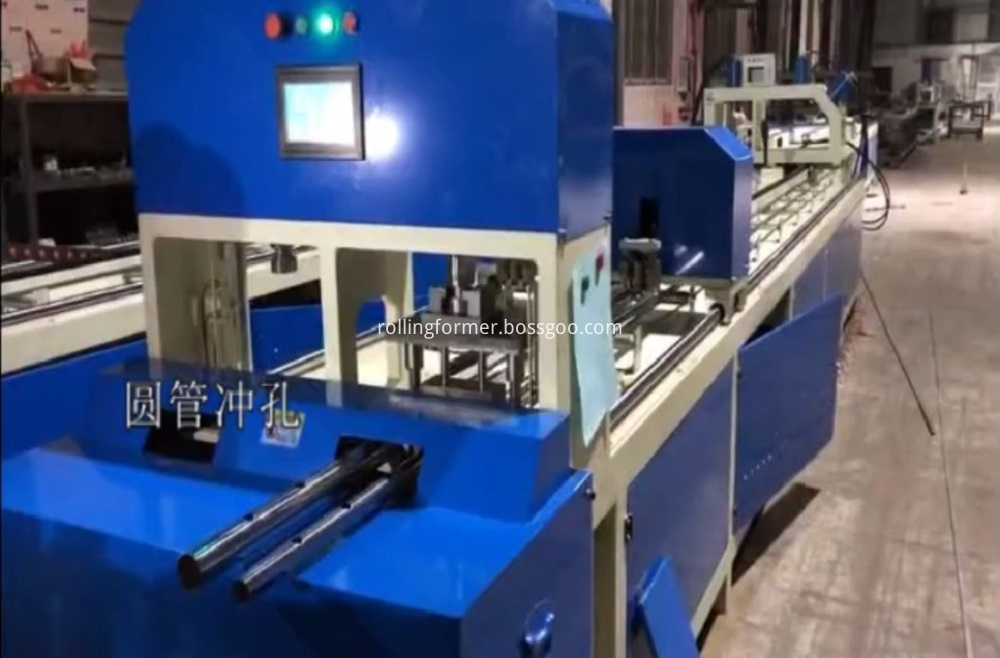

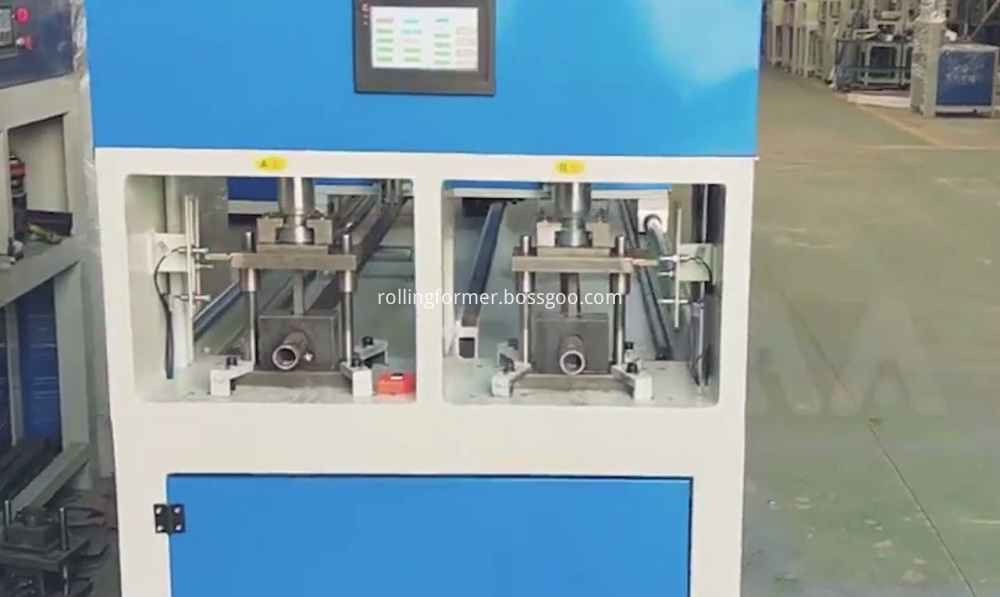

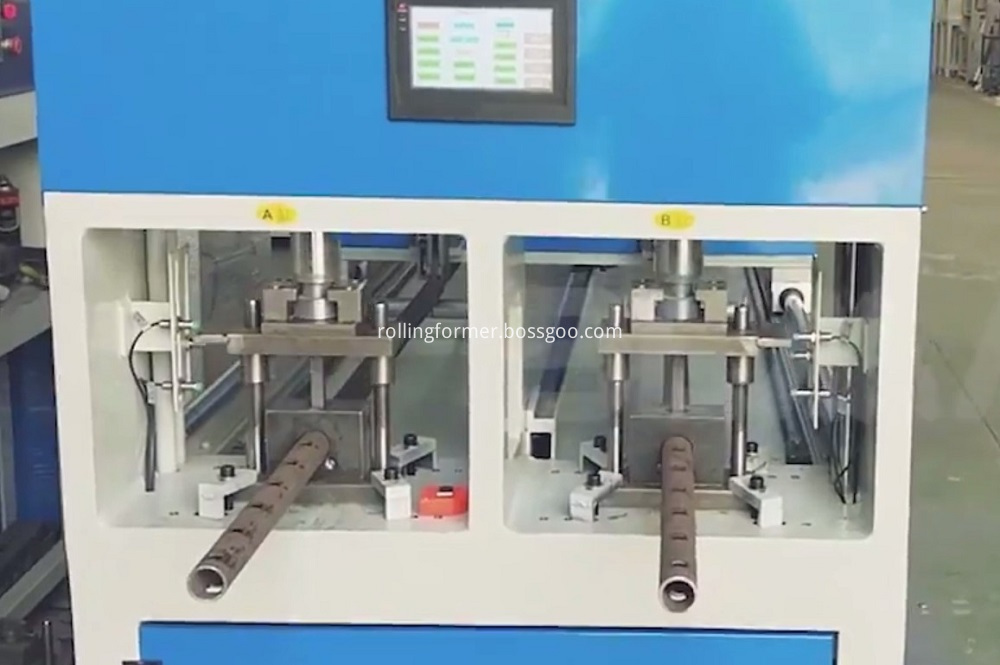

This is double station round tube punching machine, The two punching production can work at same time, so highly improve the production capacity of the tube punching.

round tube punching machine

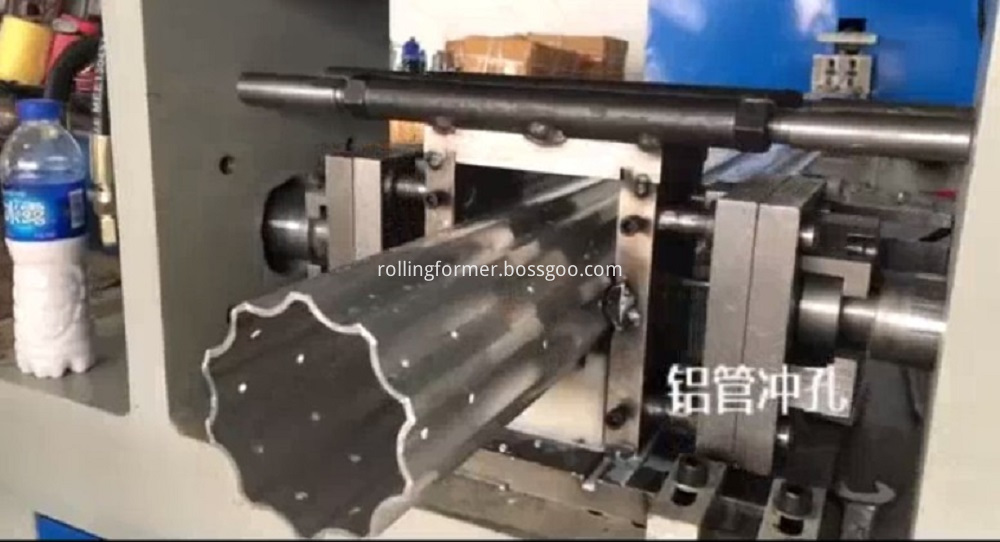

This is one aluminum tube punching machine machine,this tube shape is special, so require the punching system right designed.

How to get an inquiry of the Double station holes profile channel punching machine from us:

Every friends, thank you so much for your reading!
If you need more information about our tube bending machine, please feel free contact me please!
Also if you want to order one tube bender machine, please kindly send me your detailed information to me. we will design the machine for you.
Before we make the full solution for you, we need below information tube parameter from you:

1. Tube material
2. Tube diameter
3. Tube holes or arc end shapes, if possible do you have a frawing or picture to send to us.
4. Do you need other related tube processing machine, such as: Tube cutting machine, Tube chamfering machine, Tube punching machine, Tube end forming machine.
welcome sending me an inquiry now!
