Strong solar strut channel brackets machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: ZT004

Certification: SGS, CE, ISO, Other

Condition: New

Customized: Customized

Automatic Grade: Automatic

Structure: Horizontal

Transmission Method: Electric

Name: Solar Mounting Structure Strut Channel Making Machine

Weight: 5 Tons

Working Speed: 8-10m/min

Whole Production Line Length: 20m

Shearing Method: Hydraulic

Material Thickness: 1-3mm

Material: GI Steel

Certificate: ISO9001

Application: Solar Power Channel

Advantage: High Automatic

Additional Info

Packaging: nude

Productivity: 30 set/month

Brand: ZTRFM

Transportation: Ocean,Land

Place of Origin: Cangzhou Hebei China

Supply Ability: 30 set/month

Certificate: ISO9001

HS Code: 8455221000

Port: TIANJIN

Product Description

The advantage of Strong solar strut channel brackets machine

1. Accurate forming process

2. 10 years+++ life-time

3. Stable and powerful running


Machine runs video:

Youtube Link:  https://youtu.be/pGv_gpaWbQI



The GI strut channel can be fastened to the side of the home to allow the solar panel to be placed at the most advantageous angle. For those who would require the GI strut channel machine. we provide affordable options. Purchase today and invest in a better future of your family, community, and the planet as a whole. If you have any questions about solar strut channel brackets machine, please contact us at for further details.

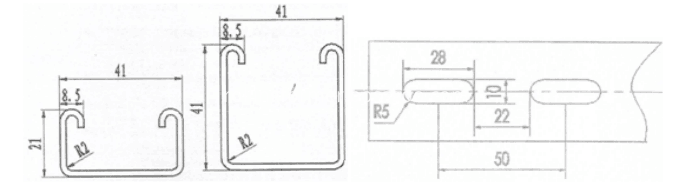

solar section

gi solar channel

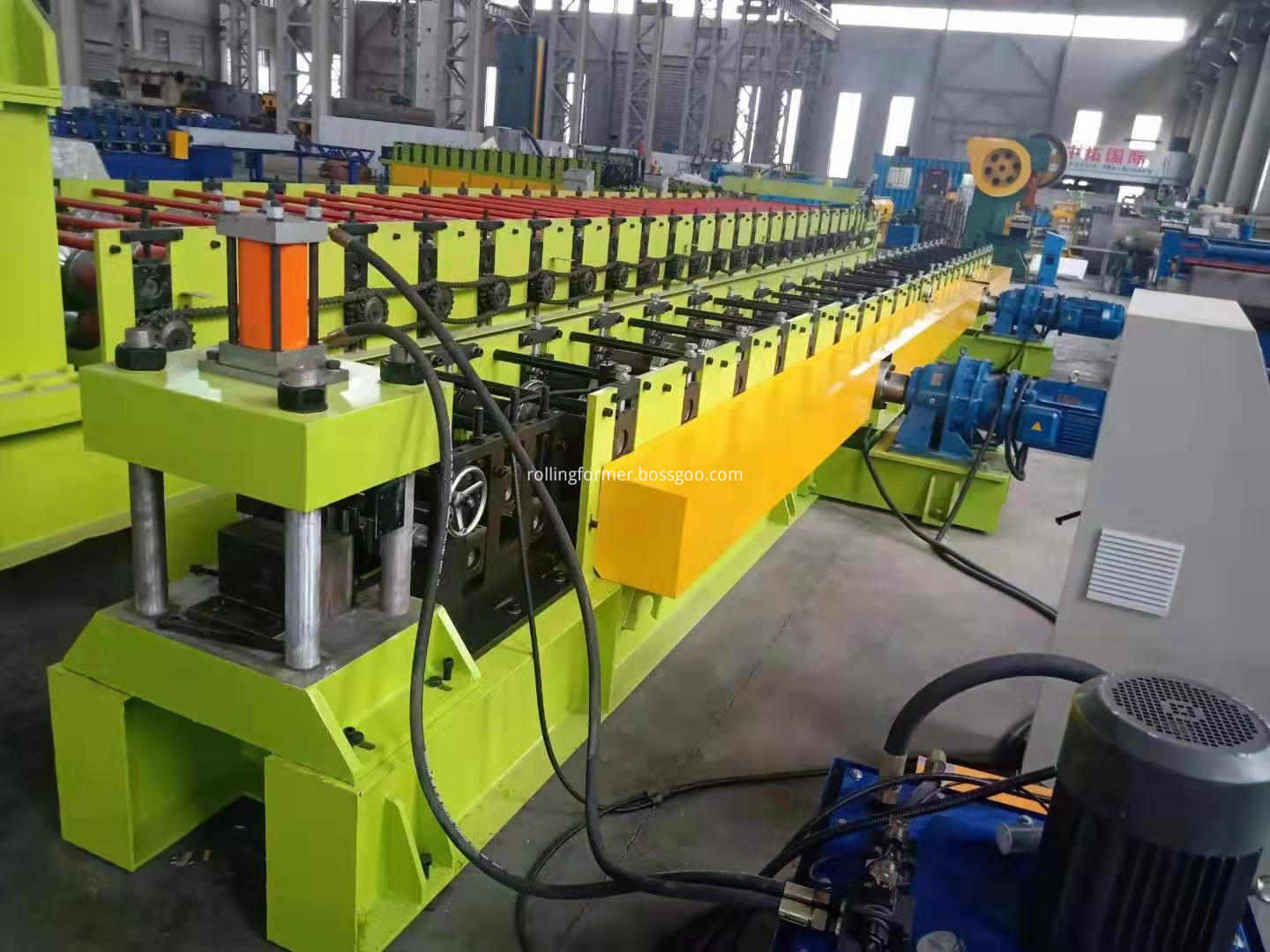

Technical Parameters of Solar mounting structure strut channel machine

1. Material thickness range:1.5-2.5mm

feeding width: 90-230mm

2. Main motor power: 22 k w
3. Forming speed:8 m/min

4. Shearing method: Hydraulic shearing
5. Hydraulic station power:11 KW

6. Quantity of rollers:24 rollers

7. Shaft Material and diameter: 80 mm, material is 45# forge steel
8.Material Of machine body: 25mm 45# steel
9.Tolerance: +-1.5mm

10. Transmission method: By double chains
11.Material of forming rollers: GCR15 steel, coated with chromed treatment
12.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃
13.Voltage: 380V/ 3phase/ 50 Hz (as request)

solar mount

Channel Solar

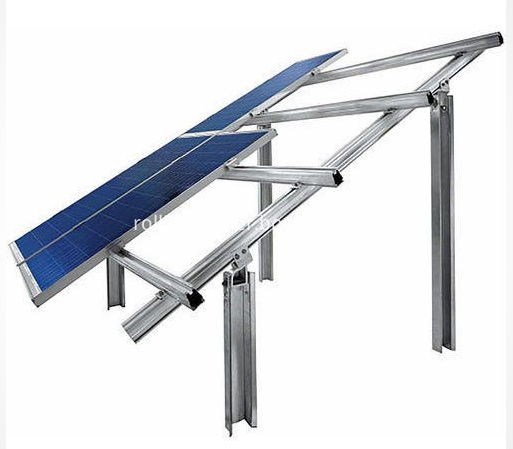

                       Final product---Solar mounting structure strut channel

                               _Y[$KC3$EN@F6ONL1{GM{VC

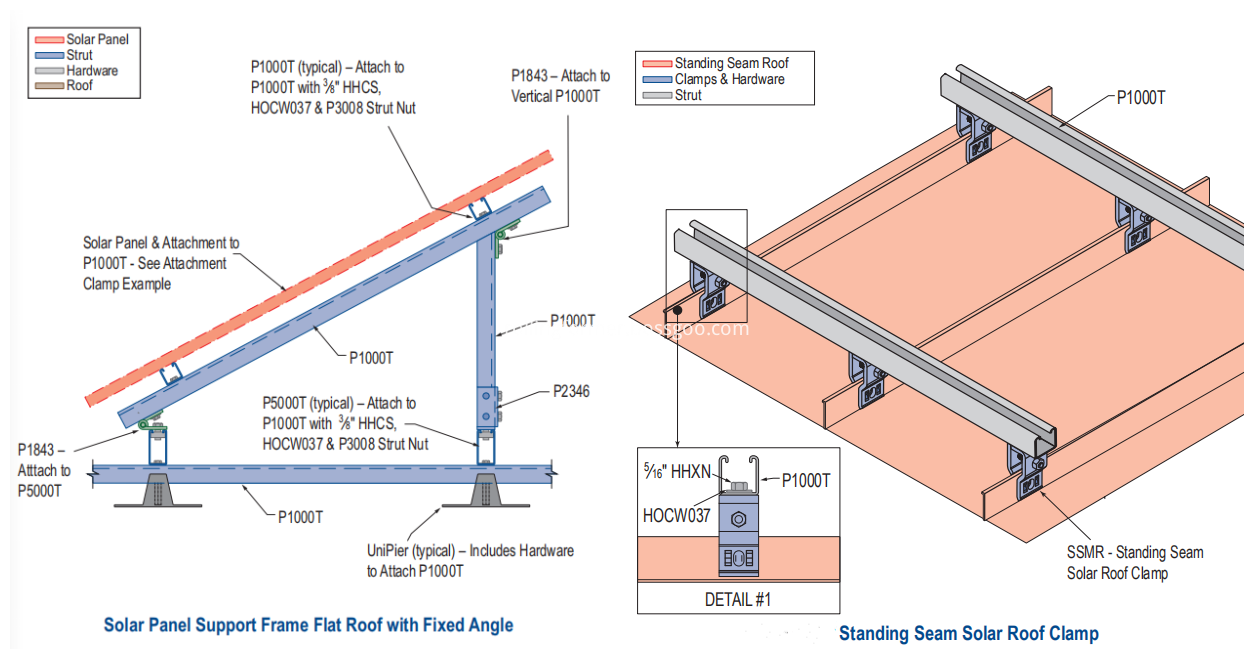

                       Installation of Solar mounting structure strut channel

solar mount channel
