Solar mounting structure strut channel machine

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: ZT004

Certification: SGS, CE, ISO, Other

Condition: New

Customized: Customized

Automatic Grade: Automatic

Structure: Horizontal

Transmission Method: Electric

Name: Solar Mounting Structure Strut Channel Making Machine

Weight: 5 Tons

Working Speed: 8-10m/min

Whole Production Line Length: 20m

Shearing Method: Hydraulic

Material Thickness: 1-3mm

Material: GI Steel

Certificate: ISO9001

Application: Solar Power Channel

Advantage: High Automatic

Additional Info

Packaging: nude

Brand: ZTRFM

Transportation: Ocean,Land

Place of Origin: Cangzhou Hebei China

Supply Ability: 30 set/month

Certificate: ISO9001


Product Description

The advantage of our Solar mounting structure strut channel machine

1. Accurate forming process

2. 10 years+++ life-time

3. Stable and powerful running


Strut channel has been using for many years while installing solar power. The biggest advantage of solar strut channel is that it helps in the construction and easily connects the length together and other items, by using different strut fasteners. Strut channel can get jointed easily and quickly with minimal tools and labor. So in returns reduces the overall costs of the application. A strut channel installation can be easily modified or added to anywhere if needed.

Solar Section

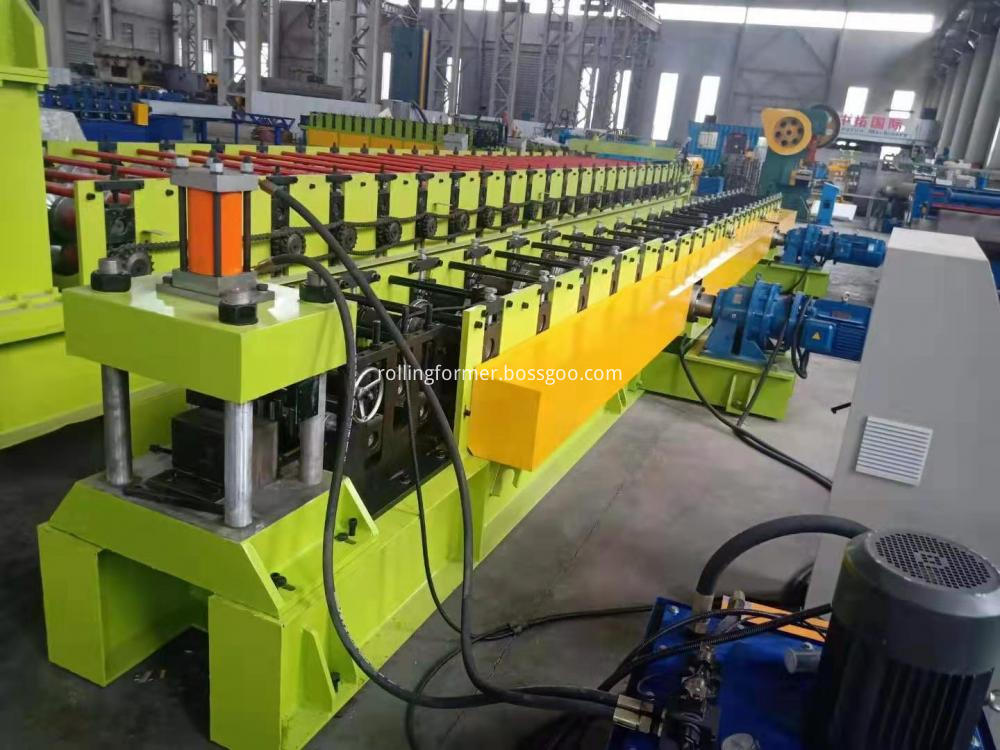

Technical Parameters of Solar mounting structure strut channel machine

1. Material thickness range:1.5-2.5mm

feeding width: 90-230mm

2. Main motor power: 22 k w
3. Forming speed:8 m/min

4. Shearing method: Hydraulic shearing
5. Hydraulic station power:11 KW

6. Quantity of rollers:24 rollers

7. Shaft Material and diameter: 80 mm, material is 45# forge steel
8.Material Of machine body: 25mm 45# steel
9.Tolerance: +-1.5mm

10. Transmission method: By double chains
11.Material of forming rollers: GCR15 steel, coated with chromed treatment
12.Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃
13.Voltage: 380V/ 3phase/ 50 Hz (as request)

Channel Solar

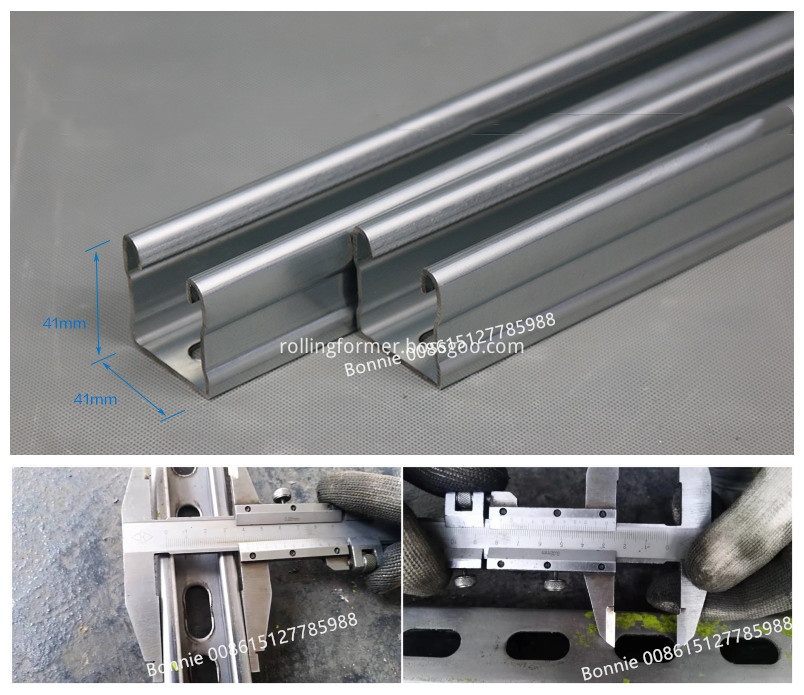

                                    Solar mounting structure strut channel

gi solar channel

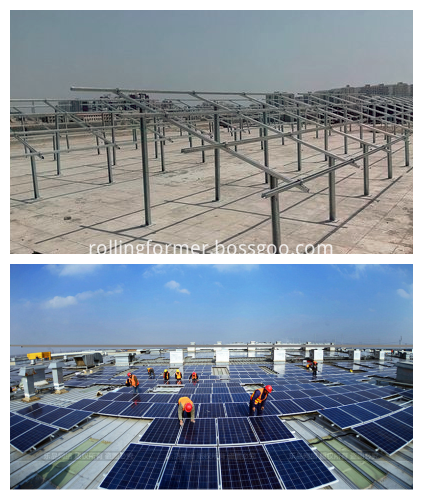

                        Application of Solar mounting structure strut channel
