Steel construction material deck floor production mill

Unit Price: USD 19000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Warranty: 2 Years

Certification: CE, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Main Forming Machine Weight: 6.5 Ton

Main Forming Machine Size: 9.5m*1.8m*1.5m(L*W*H)

Voltage: 380-415 V

Controling: PLC

Color: Blue Or Can Be Painted As Your Required Color

Shaft Material: Cr12

Transmission: Double Chain With 1.2 Inch

Shaft Diameter: 80mm

Roller Station: 26 Stations

Main Motor Power: 15 Kw

Additional Info

Packaging: Steel construction material deck floor production mill be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Steel construction material deck floor production mill


floor decking roll forming machine

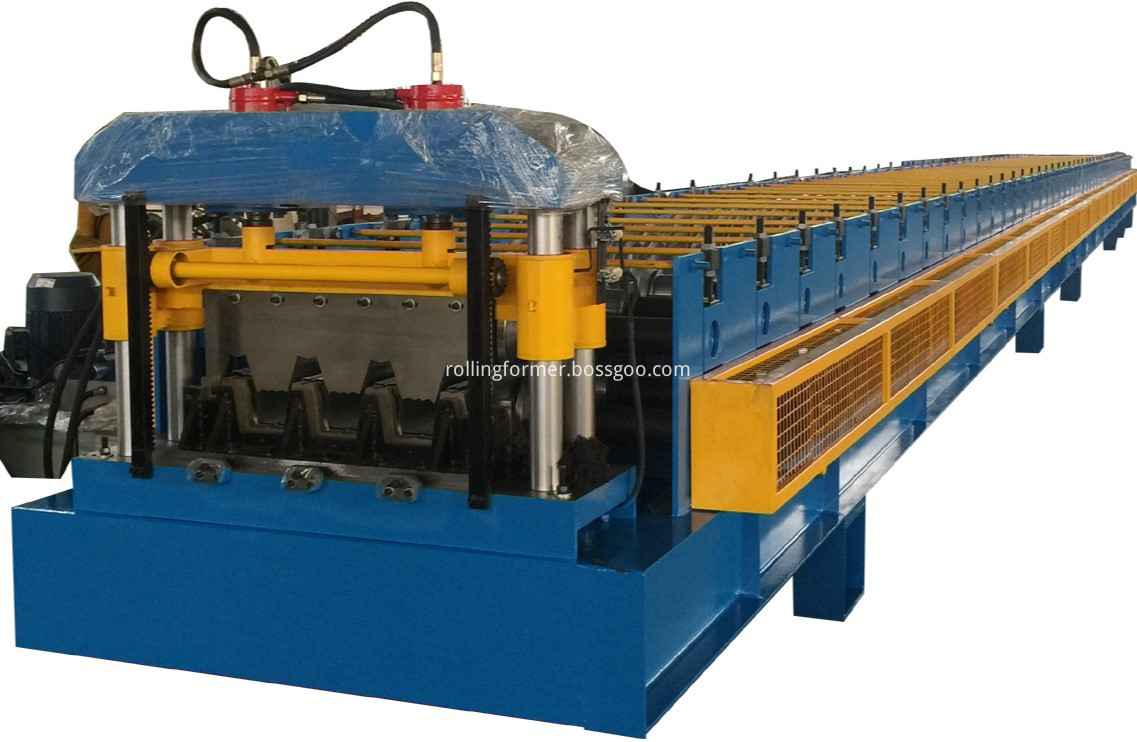

Floor decking metal sheet is widely used in modern building, instead of the concrete decking sheet. Steel construction material deck floor production mill produce the metal decking by roll-formed procession. The floor decking machine is designed with the manual decoiler, the leveling system, embossing rollers and main roll forming machine rollers, and hydraulic cutting system, decking receiving system, Besides, included in a whole like floor decking machine floor deck roll forming machine, there are controling cabinet and hydraulic stations too.

Steel construction material deck floor production mill

Steel construction material deck floor production mill

Steel construction material deck floor production mill

Steel construction material deck floor production mill






steel composite floor decking sheet rollforming line floor deck making machinery for cutting floor boards CNC automatic machines, plate-type high-strength galvanized steel floor panels, large-span floor shop contained cement. PLC control, touch screen operation, easy to understand. Greatly improve the efficiency, quality and cheap, affordable and reasonable new brilliant product design, in line with market demand.

Steel construction material deck floor production mill

Steel construction material deck floor production mill


steel composite floor decking sheet rollforming line Processing flow diagram of machine


Manual decoiler →Feeding material into machine →Roll forming machine →Measure length →4 sets butt welding machine→Straightening→Hydraulic cutting →Finished Products
Steel construction material deck floor production mill


Processing material: colored steel plate, galvanized plate, or aluminum plate Material thickness:  0.8---1.2mm
Material hardness: 195 mpa---350 mpa
Material width:  1000mm
Formed width: 720/960mm
Wave length: 187.5mm
Step height: 75mm
Step length:150mm---380mm(adjustable)
Forming speed: 8-10m/min

Steel construction material deck floor production mill

Entry Beach
Usage:Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
Main Roll Forming System
Feature : Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission ,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 16000 х1650 х1500
Weight of main part:
Voltage : 380 V/50HZ 3Phase or as your required
Roller fixer : middle plate
Frame : 400 H steel welded
Drive mode: chain
Material of rollers:45# steel, surface hard chromium plating.
Material of shafts: 45# steel
Diameter of shafts: φ 80mm
Number of rollers : 36rollers
Main power: 2X11 kw
Shearing Mechanism
Feature : Ensure stability, precision and cutting speed
Function : Automatic cutting controlled by PLC
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: C r12 quenched
Power supply : hydraulic power
Components:It contains one set of blade , one hydraulic tank and one cutter machine.
Steel construction material deck floor production mill

Steel construction material deck floor production mill


Hydraulic Station
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
Power: 5.5kw
Hydraulic oil: 46 #
Electric Control System
Feature:
1. Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
2. Other electric element are Panasonic
Counter
One counter gauges length, pulses, and decides length.
Omron encoder for length measurement.
Products receiving tables
It adopts welded steel and supported roller to transmit the products.

steel deck panels forming machine

steel deck panels forming machine

Below are the pictures of the embossing rollers of the steel composite floor decking sheet rollforming line

steel deck panels forming machine



steel deck panels forming machine
