Standing seam panel curver curving machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: AP-CURVER

Tile Type: Colored Steel

Certification: SGS, CE

Condition: New

Customized: Customized

Usage: Roof

Transmission Method: Machinery

Additional Info

Packaging: Plastic film packaged and then loaded into container

Productivity: 10-15 piecec per minute

Brand: AP

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 sets / year

Certificate: SGS,CE

HS Code: 8455221000

Port: Shanghai Port,Zhangjiagang Port,Tianjin Port

Product Description

Standing seam panel curver curving machine

Standing seam panel curver curving machine is a new type curver machine for curving the standing seam panel. There are manual standing seam panel curver and automatic seam panel curver. The standing seam panel curver can make different angle curving for the standing seam panel. As we know, the standing seam panel have two types, one is straight panel and anther is taper panel. This standing seam panel curver curving machine can make both these two types. For the standing seam panel with effective width from 300mm to 500mm. Material can be aluminuim,Galnvanized steel and color cotated galvanized steel. Thickness from 0.7mm to 1.2mm.

standing seam rollformer curver

standing seam panel curver

Below is the specification of the standing seam curver curving machine.

Effective width: 300/328/400/425/500mm and taper panel
Curve machine specification: Gear driving
Material of rollers manufactured from GCR15, CNC lathes, hard Chrome Coated
Shafts Diameter=ф75mm, shafts material from 40Cr, Precision Machined
Main motor: 5.5 KW, one set
Servo motor: 2KW, one set
Forming speed: Approx. 15m/min
The PLC Control System, Combined with: PLC (SCHNEIDER), Touch Screen (SCHNEIDER),
Inverter (SCHNEIDER), Encoder (Omron)
Hydraulic cylinder: four units;
Hydraulic station: 2.2 KW, one set

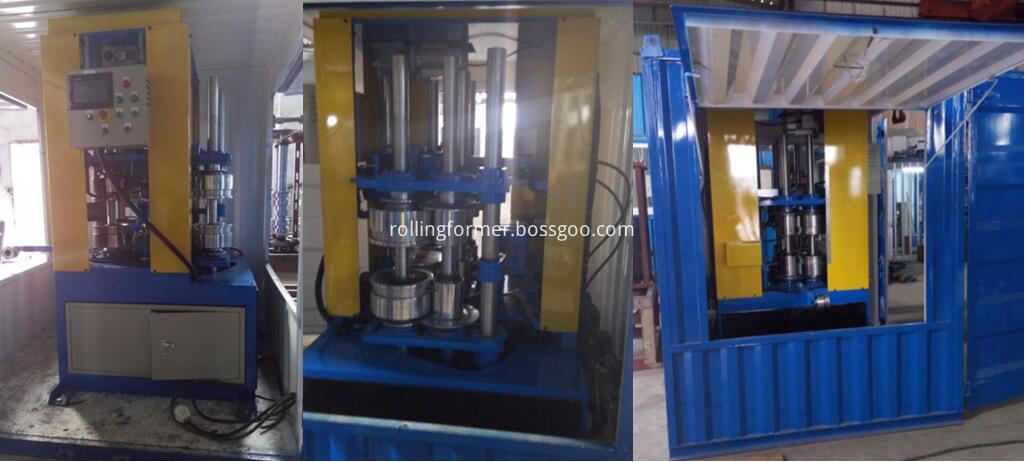

standing seam rollformer curver 1


Curving straight panel need one time; curving taper panel need two or three times.
Automatic set-up radius, 20 different radius can be inputted in control system at the same time
Aluminum thickness is 0.9mm, can curving straight pane positive arch min. 3 meters; negative arch min. 6 meters
Aluminum thickness is 1.0mm, can curving straight pane positive arch min. 2.5meters; negative arch min. 5 meters
Aluminum thickness is 1.2mm, can curving straight pane positive arch min. 2meters; negative arch min. 4 meters
Changing way for different type width of plate is automatic lifting type, don`t need manual operation.
standing seam rollformer curver 2

The standing seam curving machine can add a container for convenient used, the container size is: 1.8m×1.8m×2.1m

Above information is for the standing seam curver machine, if you want to know more about the standing seam curver, please send me an inquiry, i will repaly you immidiately, and send you the working videos of the standing seam machine and the offer. Besides, we are professional in manufacturing the standing seam panel rollformer, and the standing seam panel seamer tool slipping tool for installing the standing seam panel.
