Metal silo water tank rollforming and bending machine

Unit Price: USD 19000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: AP-Silo rollformer

Warranty: 2 Years

Certification: CE, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Feeding Width: 1200mm

Speed: 10-15m/min

Thickness: 0,95-1,15mm

Controlling: Panasonic PLC

Hydraulic 7 Tons De-coiler: 1 Set

Roller Station: 16 Stations

Transmission System: Gear Box Transmission

Roller Material: Gcr15 Finish Machining After Quenching H

Shaft Material And Diameter: 45# Steel Finish Machining, Diameter Is

Main Power: 15kw

Additional Info

Packaging: High speed corrugated panel steel roofing rollformers be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Metal silo water tank rollforming and bending machine

Metal silo water tank rollforming and bending machine adopts the rollforming system and sheet bending system. First roll forming the corrugated roofing sheet, then the sheet bending machine circle the corrugated sheet to form the cylinder silo tank.

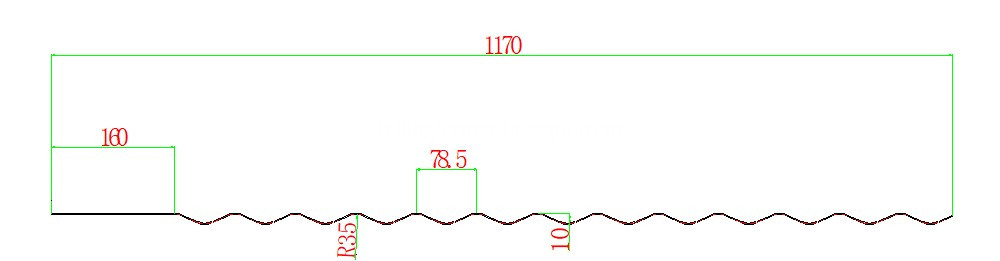

metal silo rollformers 1

metal silo rollformers  2

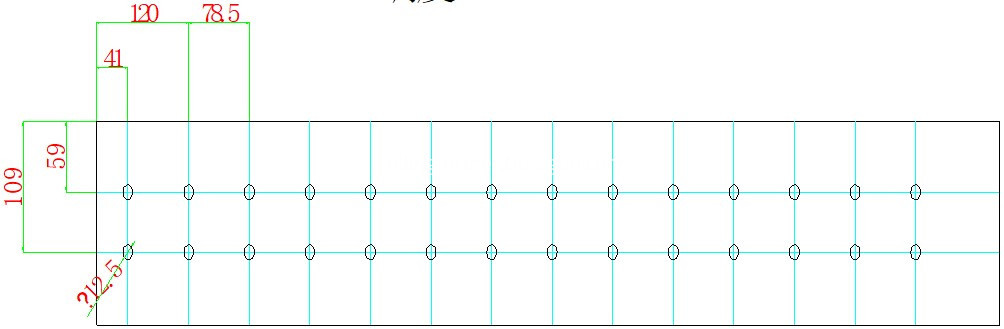

metal silo rollformers  3

metal silo water tank rollforming and bending machine including below parts:
7 tons decoiler, main roll forming machine, punching holes system and edge rolling , cutting system.

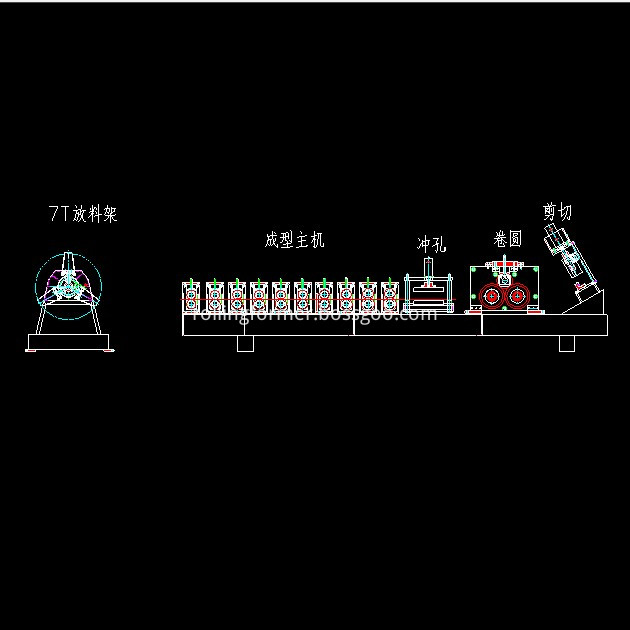

De-coiler -- Feeding --- Roll forming ----punching holes system-circle bending machine

silo rollformer water tank rollformer 4

Whole line parts 7 tons hydraulic de-coiler 1 set
Punching system 1 set
mold 1 set
Curving system 1 set
Main roll forming body 1 set
Controlling box 1 set
Hydraulic station 1 set
Receiving table 1 set

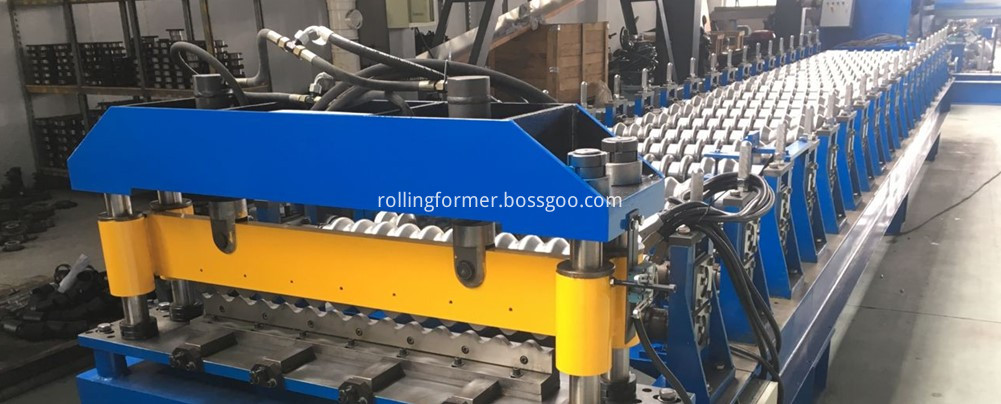

High speed roofing sheet rollformer 8

Blade material Cr12Mov, quenching HRC 58-62℃
Length tolerance 3m±1.5mm
Voltage 380-415V
Can be customized according.
structural Memorial archway
Color Company color
Delivery time 80 days
payment 30% as deposit,70% before shipping

Feeding width 1200mm
Speed 10-15m/min
Thickness 0,95-1,15mm
Controlling Panasonic PLC
Hydraulic 7 tons De-coiler 1 set
Post punching system 1 set
Front cutting system 1 set
Round curving system 1 set
Roller station 16 stations
Post cutting 1 set
Transmission system Gear box transmission
Roller material Gcr15 finish machining after quenching HRC58-62℃,chromium coating.
Shaft material and diameter 45# steel finish machining,
diameter is ¢65mm
Main power 15kw
Hydraulic pressure 16  Mpa
metal silo rollformers 5

The main features of each component:
Cutting device:
(1) Cutting method:The main machine stops,then the cutting blade cut after measure the length;After finishing the cutting, the main machine body runs, and go on produce.
(2) The cutting blade material:GCR12,after hot treatment quenching HRC58-62℃
(3) Cutting length monitoring:Automatic length cutting
(4) Cut length tolerance:3±1.5mm
Controlling box:Panasonic brand
(1) Voltage:380V,50HZ,3ph
(2) Automatic control length cutting
(3) Automatically count production
(4) The computer controls the length and quantity, and the control device automatically stops cutting to ensure the set production quantity.
(5) Accurately modify the length tolearance
(6) Control method: touch screen and button coexist
Forming machine body:
(1) The structure is simple and the appearance is beautiful. Because the whole machine adopts the steel structure and the whole processing after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable.
(2) Other important components of the equipment and components are used in well-known domestic enterprises, which effectively guarantee the performance of the equipment.
(3) It adopts fully automatic fixed length forming punching and cutting, precise positioning and positioning, and the shape of the head and tail is beautiful and tidy without deformation.
(4) The equipment is easy to install and debug, suitable for factory production.
(5) The equipment is low in noise and high in work efficiency.

metal silo rollformers 4

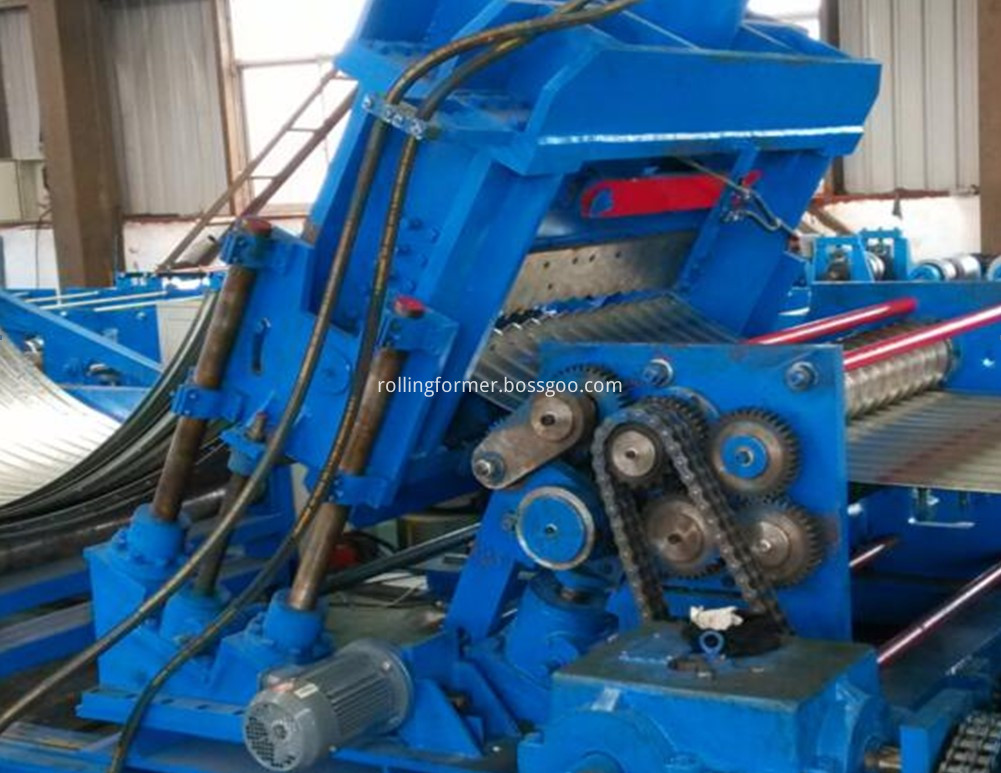

This is the bending and cutting system of the metal silo roll forming machine line.

High speed roofing sheet rollformer 11

High speed roofing sheet rollformer 10

Our factory is professional make the rollformer machines for the steel roofing, CZ purlines, steel framing strut, suspended ceiling channel, cable tray roll forming machine, shutter door rollformers, door frame rollformers, ridge cap roll forming machines and so on. If you need any machine , pelase feel free contact me, please!

we can design the machines according to your requirements!
