Metal Plate Embossing Machine

Unit Price: USD 10000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: ZT004

Main Forming Machine Weight: 6.5 Ton

Main Forming Machine Size: 9.5m*1.8m*1.5m(L*W*H)

Voltage: 380-415 V

Controling: PLC

Color: Blue Or Can Be Painted As Your Required Color

Shaft Material: Cr12

Transmission: Double Chain With 1.2 Inch

Diameter: 80mm

Roller Station: 12 Stations

Main Motor Power: 15 Kw

Additional Info

Packaging: double layer roofing panel rollforming line be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description



                                                  1-3mm Sheet Metal Etching Roller Embossing Machine


We can provide the embossing according to the customer require.

1. High -precision feeder guarantees feeding stably and high efficiency.

2. It is easy to operate machine and improve the work efficiency greatly , with working speed set in advance.

3.The complete machine features humanization design.

4.Embossing aluminum sheet  ,adopted double surface embossed patterns technique.

5.Profession embossing rice- grain effect.



Technical Data:

 Dimension  3300*1200*1600mm
 Roller size

 Diameter 400*1400mm

 Function  Embossing
 Way of embossing  The male and female roller press each other up and down
 Pressing adjustment  By screw
 Motor power  15kw
 PLC speed  0-30m/min
 Structure  Steel structure
 Size of target sheets

 Stainless steel sheet: ≤2.0 ×1500mm

 Aluminum sheet size: 0.3-1.0*1500mm

 Colorfully plated sheet: 0.2-0.6mm

 Width of sheets  Less than 1500mm



Delivery terms:

1. Sample is free.

2. Time of delivery: about 45 days

3. Trade terms: FOB , CIF, CRF

4. Term of payment: L/C , T/T

5. Packaging: export packing ,or according customer request

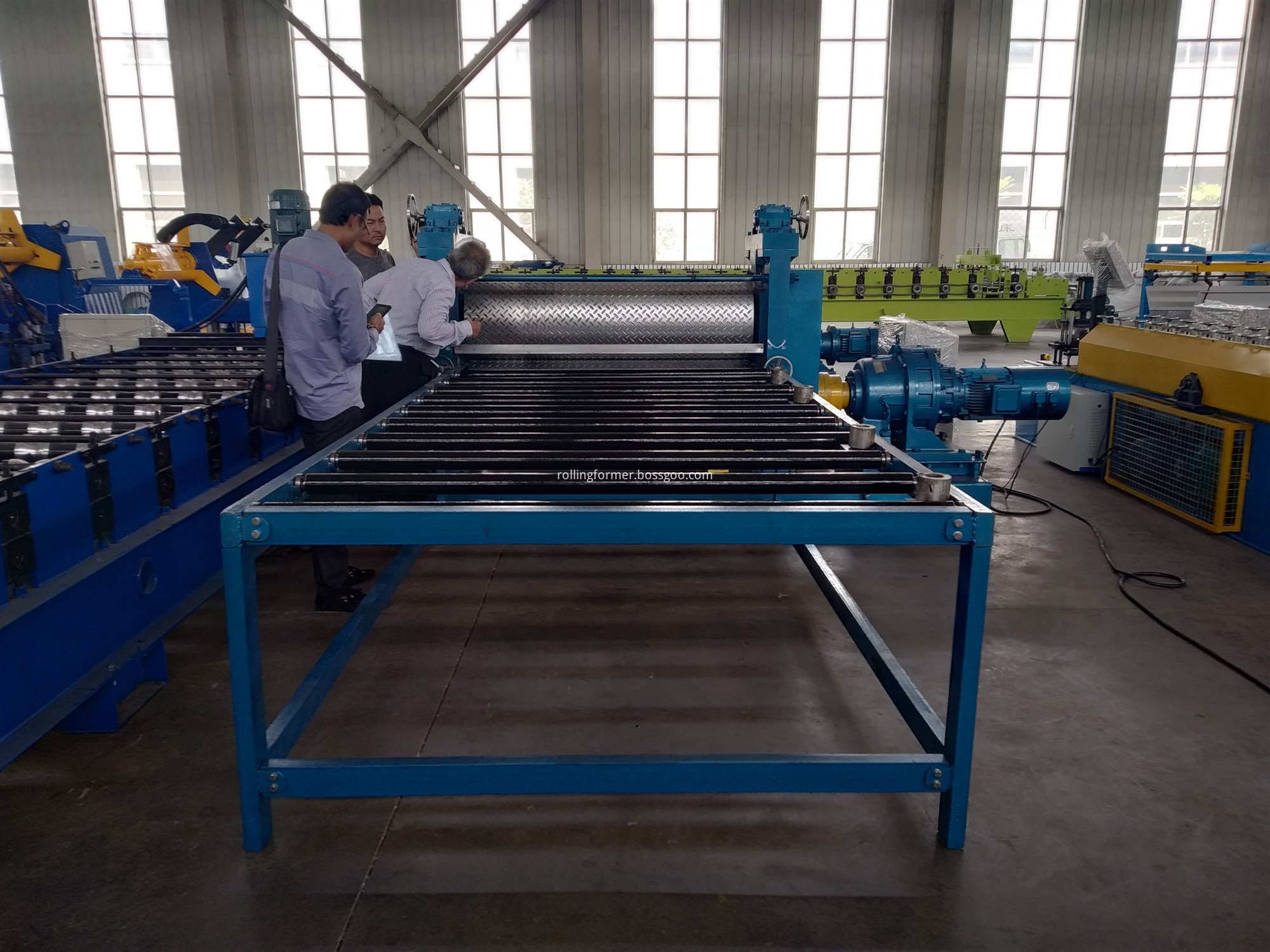

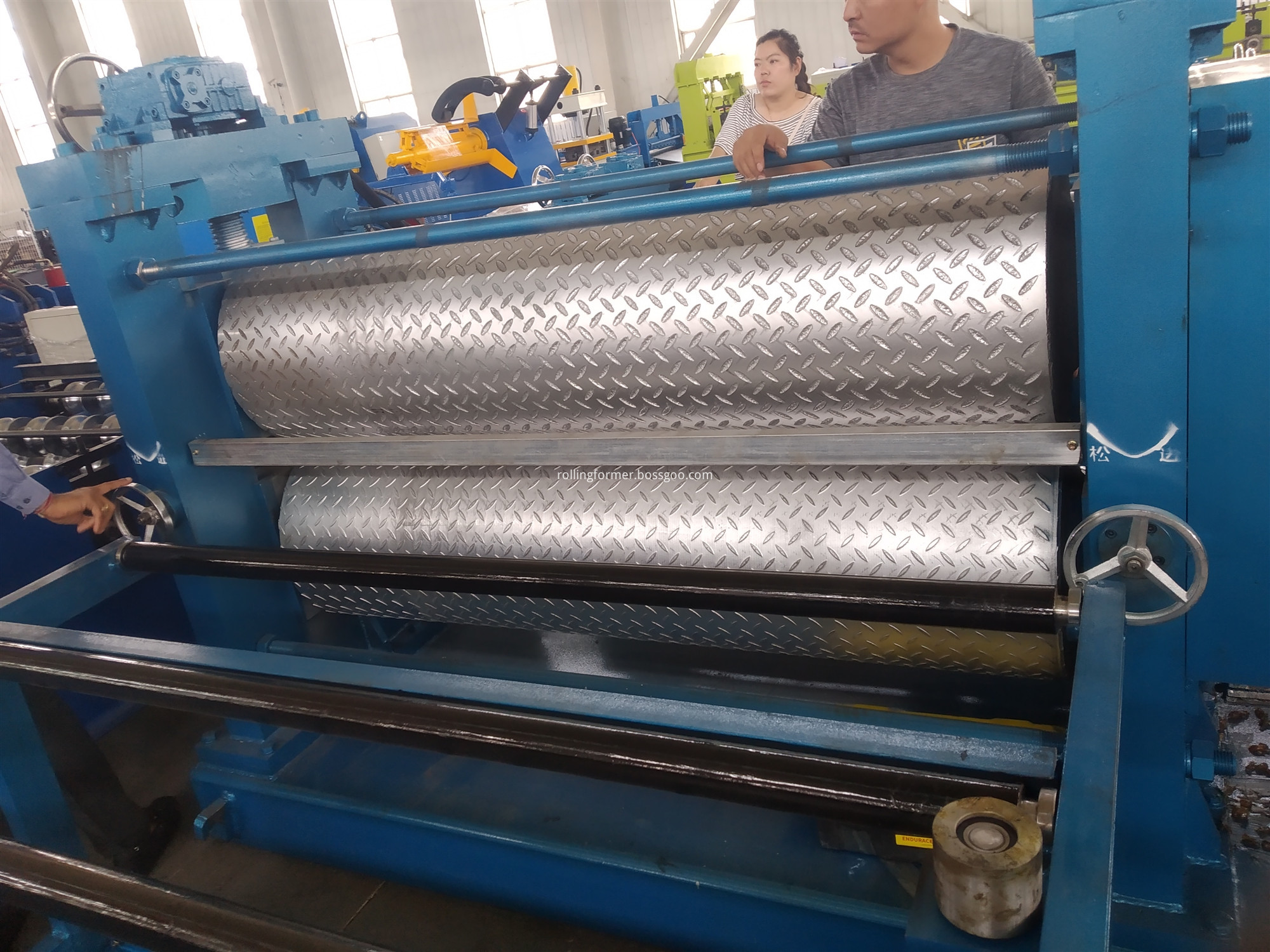

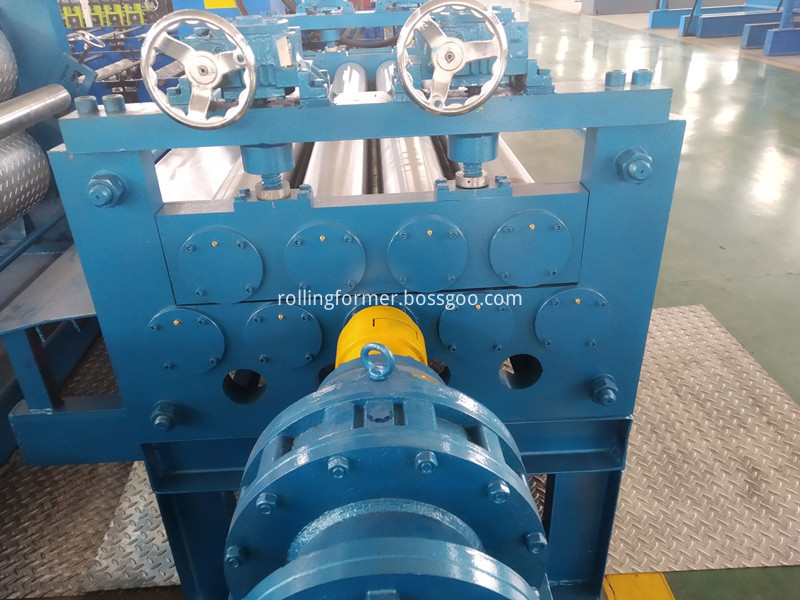

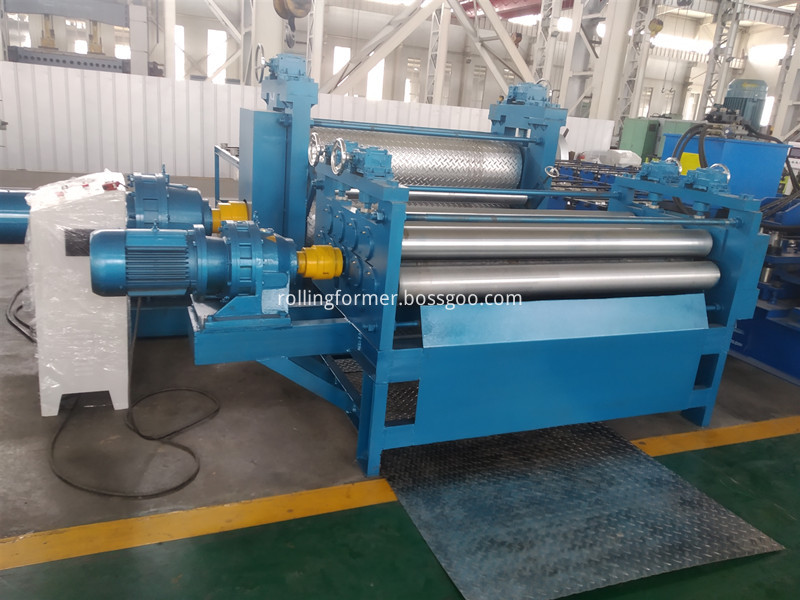

Metal Plate Embossing Machine2

Metal Plate Embossing Machine5

Metal Plate Embossing Machine4

Metal Plate Embossing Machine6



 Metal Plate Embossing Machine3

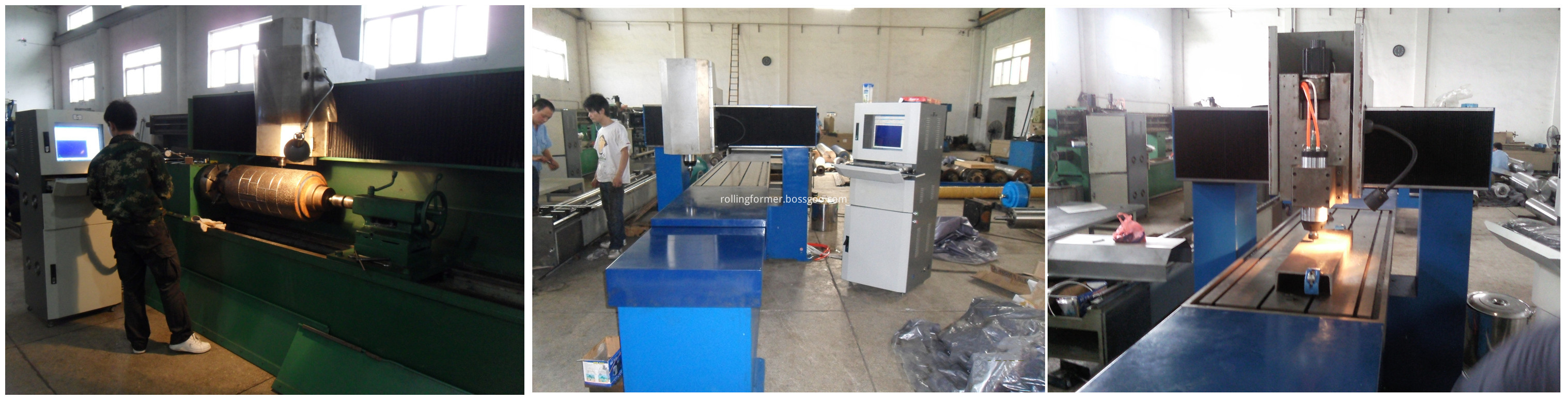

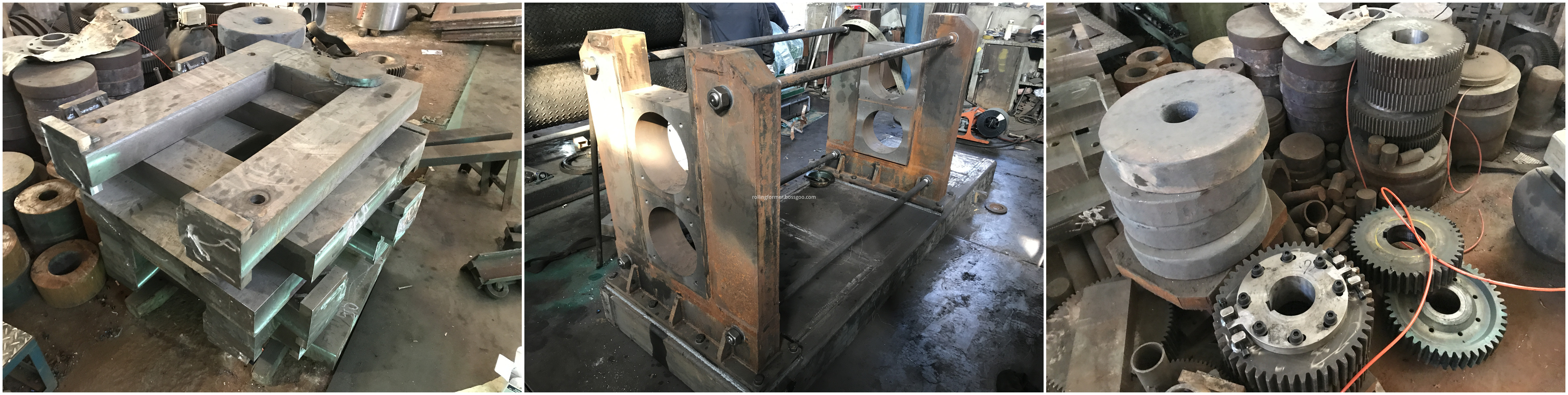

                                                       processing technology

processing technology5

processing technology6

processing technology2

processing technology

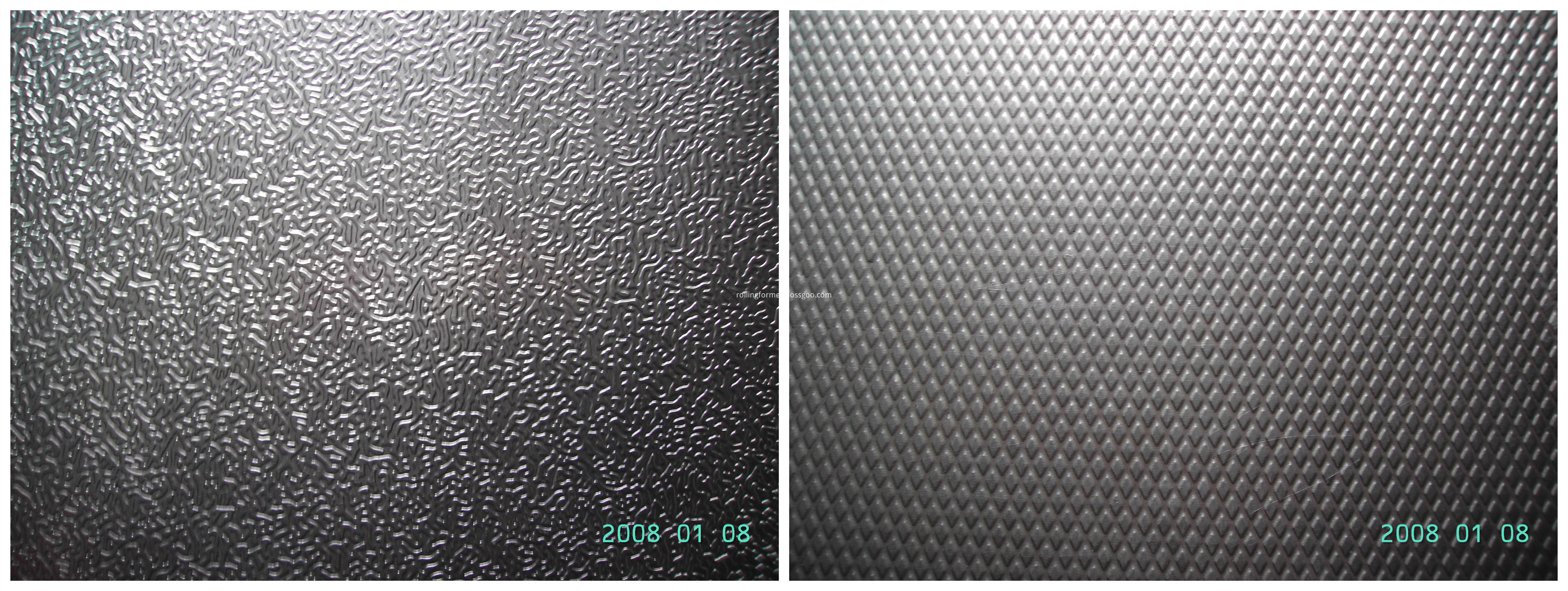

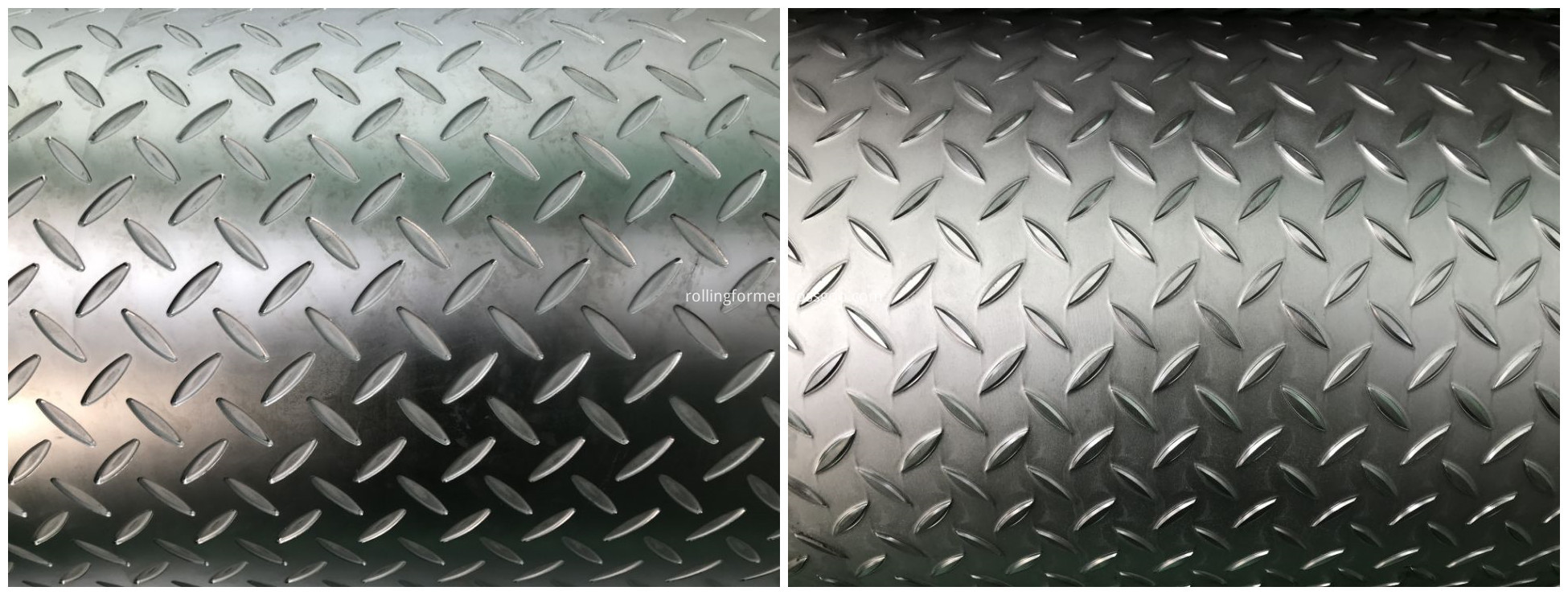

                                                     Other patterns for your reference

 22

emboss21 (1)

emboss21 (2)
