1-5mm Sheet Metal Etching Embossing Machine

Unit Price: USD 10000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: ZT004

Main Forming Machine Weight: 6.5 Ton

Main Forming Machine Size: 9.5m*1.8m*1.5m(L*W*H)

Voltage: 380-415 V

Controling: PLC

Color: Blue Or Can Be Painted As Your Required Color

Shaft Material: Cr12

Transmission: Double Chain With 1.2 Inch

Diameter: 80mm

Roller Station: 12 Stations

Main Motor Power: 15 Kw

Additional Info

Packaging: double layer roofing panel rollforming line be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

                                                  1-5mm Sheet Metal Etching Embossing Machine

1-5mm sheet metal etching embossin machine is mainly for producing embossed stainless steel sheet and mild steel sheet. Whole machine are assembled by high quality parts , such as Siemens motor, Siemens reducer,main electric parts are also Siemens .

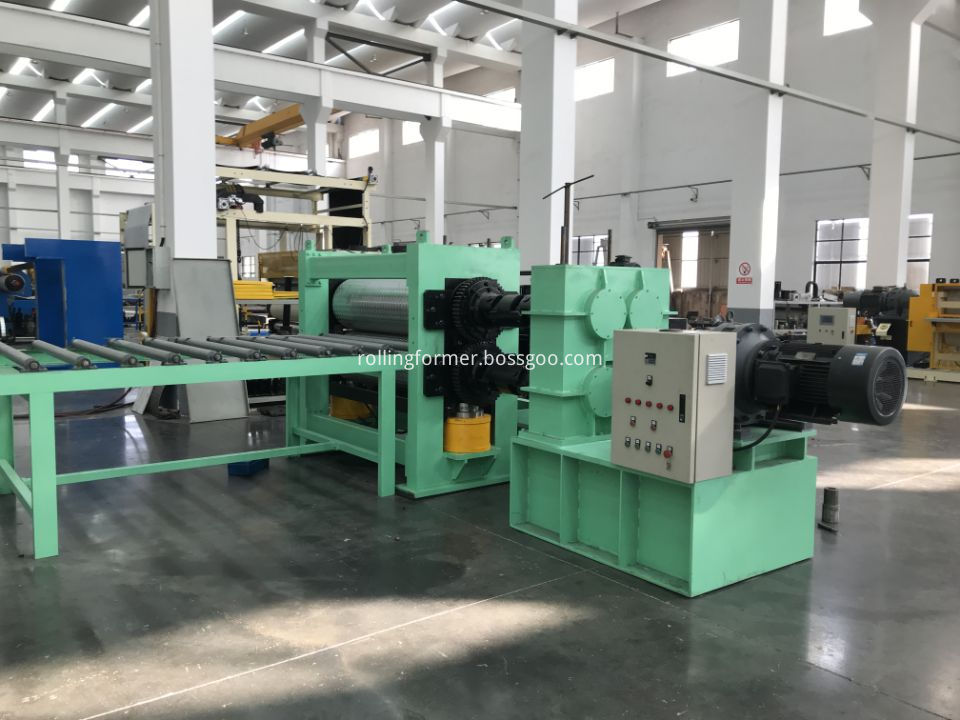

embossing machine

                  main parameter for 1-5mm Sheet Metal Etching Embossing Machine

01. Material  Steel,Aluminum,Stainless steel etc
02.Thickness of materials 1-5mm
03.Width of materials 1000-1800mm
04.Embossing roller Dia 420-550mm,width:1000-1800mm
05.Embossing type Double side embossing machine
06. Speed 1-20m/min
07.Materials of rollers 9Cr2Mo
08.Payment term  T/T ,D/P,D/D or L/C
09. Motor   SIEMENS
10. Reducer SIEMENS
11. PLC SIEMENS
12. Screen  SIEMENS
13. Main electrial parts  SIEMENS
14. Voltage Customized
13. Product collect table  3m
14. Bearings Harbin
15. Delivery  40 days after confirming the order
16. Warranty  1 year

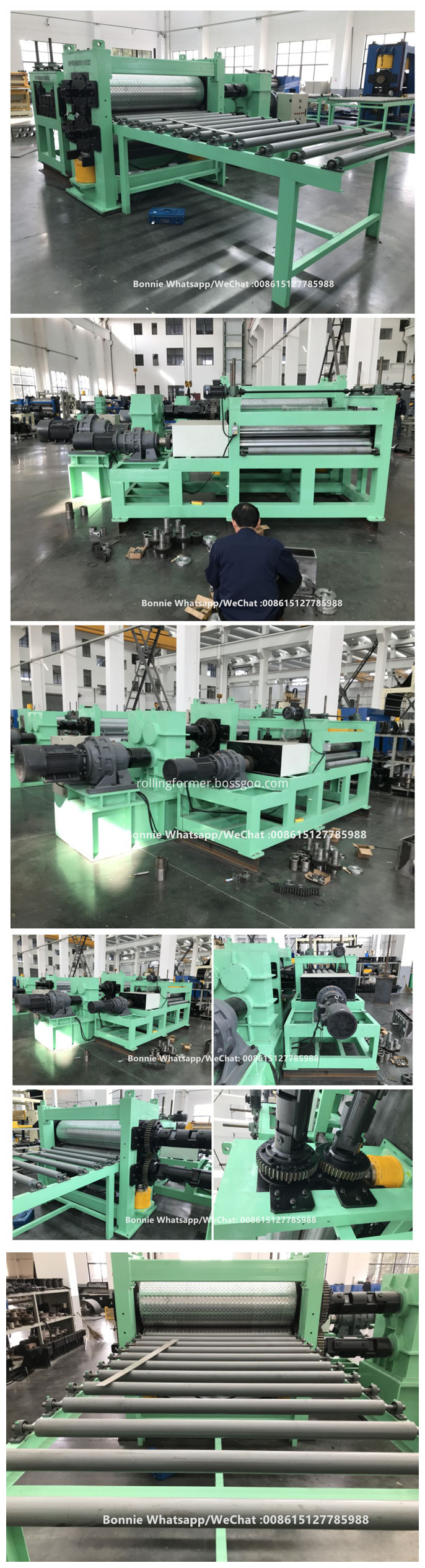

                   main pictures for 1-5mm Sheet Metal Etching Embossing Machine for your reference

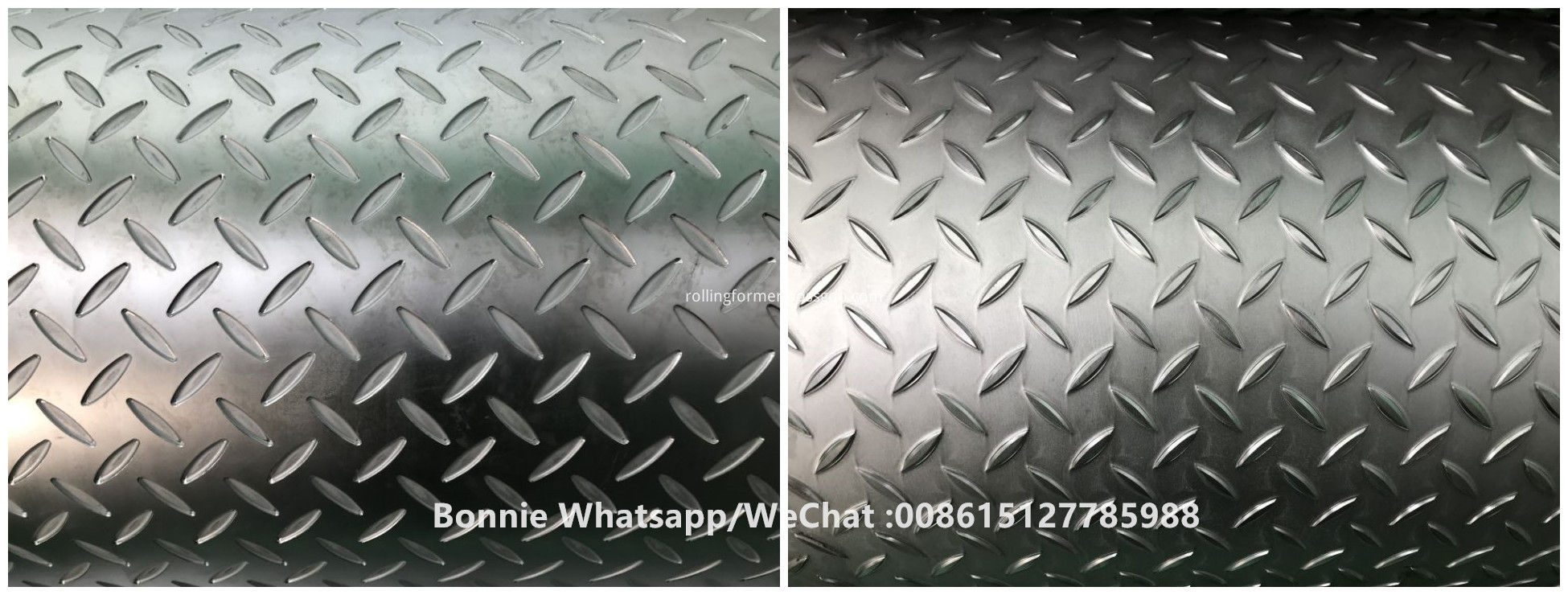

 embossing machine 02

                                                              whole pairs of Embossing roller

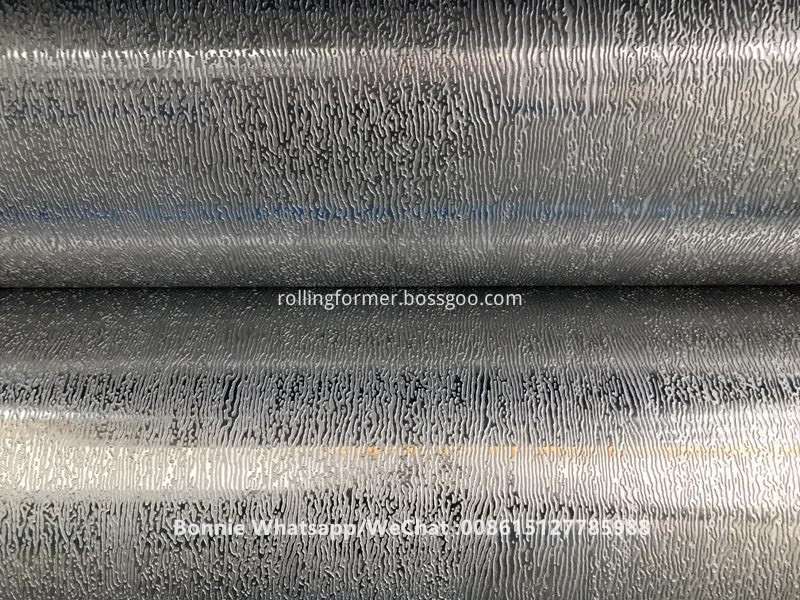

embossing roller03 (2)

                 upper roller---Female roller                                                                                                    down roller---Male roller

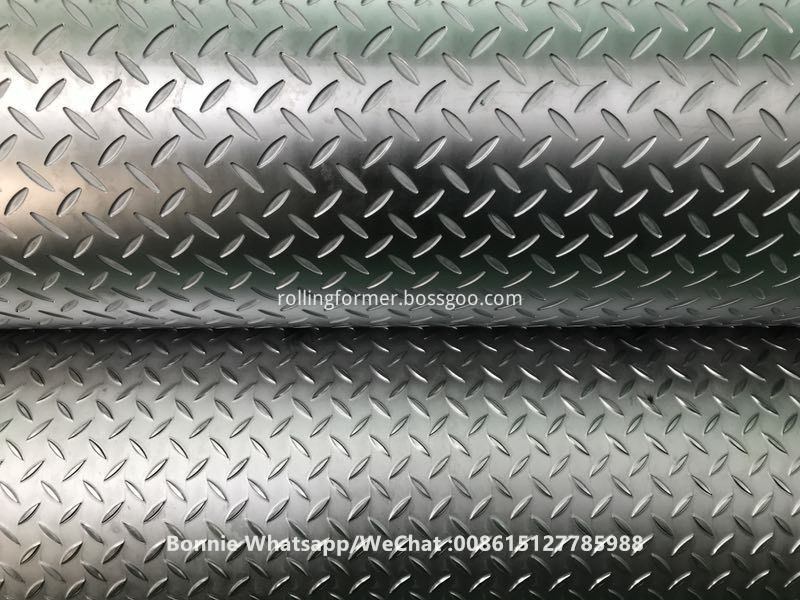

embossing roller03 (1)

                                                                                       other patterns for your reference

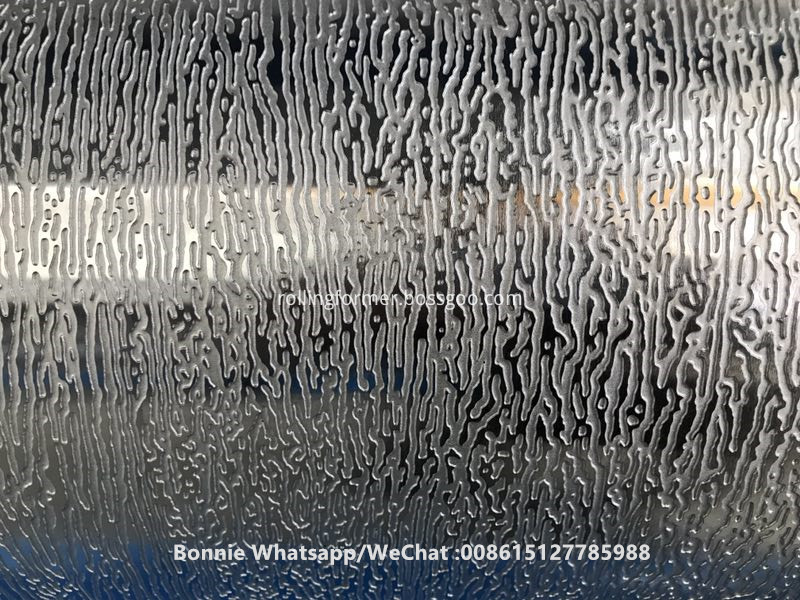

embossing roller 01



 01
