Heavy duty strut 41x41mm solar stud rollforming line

Unit Price: USD 19000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: AP-STRUT ROLLFORMING LINE

Control System: PLC

Uncoiler System: 3 Ton Manual Operationr

Forming By Rolling: Roll 18 Rows

Roller Material: Gcr15

Shaft Diameter: 80mm

Main Part Power: 15kw

Hydraulic Pressure: 12Mpa

Scissor Material: Cr12Mov

Thickness Of Unistrut Material: 1.5-2.5mm

Frame Form: Arch Pillar Type

Additional Info

Packaging: 41x41 unistrut metal framing roll forming machine is be packaged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Heavy duty strut 41x41mm solar stud rollforming line

Heavy duty Strut 41x41mm solar stud rollforming line can produce the strut with teech on the edge. Whole solar stud rollforming line capacity is 10-15 meters/min, the punching holes system is offline punching system, full automatic offline punching system line.strut 41x41mm solar stud rollforming line is designed the pillar structural, the gerabox transmission, it is a heavu duty rollformers.

strut channel rollforming line 1

Heavy duty Strut 41x41mm solar stud rollforming line profile thickness is 1.5mm-2.5mm, Strut width is 41mm, Feeding width is 136mm,Material galvanized, with side teech.

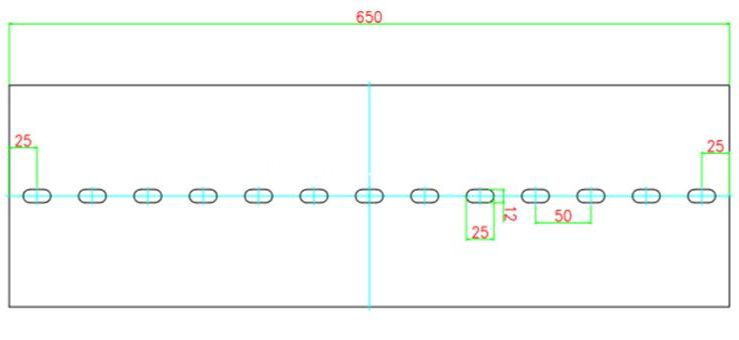

Below is the drawing for your reference, we can design and draw the drawing according to your requirements or samples.

strut channel rollforming line 3

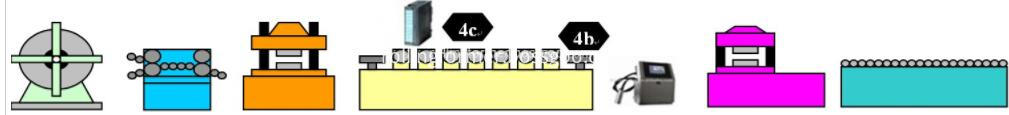

stud rollforming line

For the Heavy duty Strut 41x41mm solar stud rollforming line, it included below parts: 3 tons Manual de-oiler 1 set ,Material Leveling system 1 set ,Main Roll Forming Machine 1set ,Hydraulic Cutting system 1set ,Control Cabinet 1set ,Hydraulic station 1set ,Receiving table 2 sets . CNC Hydraulic punching line NC feeding punching ,Hydraulic station ,Safety box protecting cover 1set ,Accessories ,Travel switch 2 sets,Chain 3 pieces,Chain wheel 3 sets , oil seal 10 pieces .

Specifications of the Heavy duty Strut 41x41mm solar stud rollforming line,:

1 Machine Model Yx9.5x41x41mm
2 Material GI
3 Working speed 10-15 meters/min
4 Strips thickness 1.5-2.5mm
5 Control system Matsushita PLC
6 De-coiler 3 tons manual de-coiler
  Feeding rollers 2 stand stations
  Leveling rollers 7 stand stations
9 Forming rollers 24 stand stations
10 Roller material Gcr15 Steel finishing after quenching HRC58-62℃,Chrome plating
11 Shaft materialShaft diameter 45# steel¢70mm
12 Main power 22kw
13 Hydraulic station power 5.5kw
14 Hydraulic press 12Mpa
15 Cutting blade material Cr12Mov, Quenching HRC 58-62℃
16 Length Tolearance 3m±1.5mm
17 Voltage 380V, 50HZ,3 phraseCan be custom made accordingly.
18 Transmission 1,0 inch, double chain
19 Machine structural Arch pillar structure
20 Equipment Color Blue or be custom made
21 Machine size L*W*H  (11.5mx1,5mx1.2m)
22 Delivery 60 days
23 Payment 30% as deposit, 70% as balance

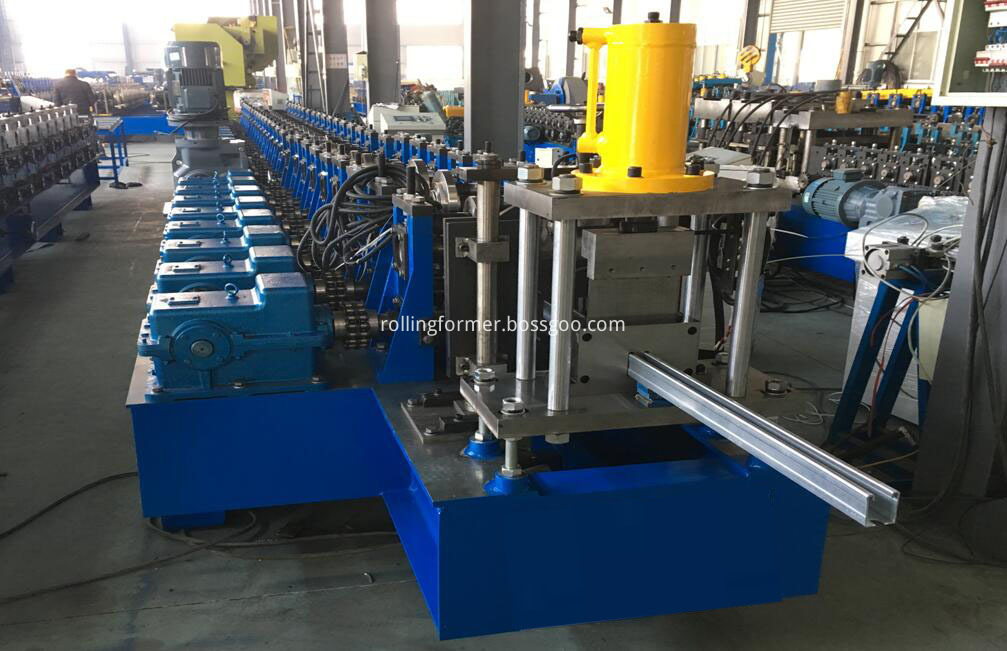

Heavy duty Strut 41x41mm solar stud rollforming line 2

This is the automatic punchign system for the solar stud rollforming line.

with this punching tool, the speed of the strut solar stud channel is improving and this punching system is professional for the holes punching, so the holes are with good outlooking, and without any burr.

strut channel rollforming line 1



Main features of the heavy duty solar stud rollforming line:

Cutting device:
(1)    Cutting method:The main machine stops,then the cutting blade cut after measure the length;After finishing the cutting, the main machine body runs, and go on produce.
(2)    The cutting blade material:GCR12,after hot treatment quenching HRC58-62℃
(3)    Cutting length monitoring:Automatic length cutting
(4)    Cut length tolerance:3±1.5mm
Controlling box:Panasonic brand
(1)    Voltage:380 or 220V, 60HZ,3ph . (Or can be customized designed and made according to customer's required. )
(2)    Automatic control length cutting
(3)    Automatically count production
(4)    The computer controls the length and quantity, and the control device automatically stops cutting to ensure the set production quantity.
(5)    Accurately modify the length tolerance
(6)   Control method: touch screen and button coexist
(7)    Length unit: mm (length on the touch screen)
Forming machine body:
(1) The structure is simple and the appearance is beautiful. Because the whole machine adopts the steel structure and the whole processing after welding, the structure is simple and reasonable, the storage capacity is strong, and the operation is stable and reliable.


For the strut channel, there are many designing and sizes .below are some normal used sizes and deisgning, any designing you need, we can design and manufacturer the rollforming line

Strut channel is a standardized formed structural system used in the construction and electrical industries for light structural support, often for supporting wiring, plumbing, or mechanical components such as air conditioning or ventilation systems.

Strut Channel roll forming machine

Strut Channel roll forming machine

There are solid channel unistrut, punched channel unistrut, half slotted channel unistrut , slotted channel unistrut, and half channel unistrut.
unistrut metal framing roll forming machine (1)
A strut is usually formed by a roll forming machine, from a metal sheet, folded over into an open channel shape with inwards-curving lips to provide additional stiffness and as a location to mount interconnecting components. The struts can be produced in mass production, by roll-formed and cutting to required certain length, such as 3 meters.
41x21 Strut Channel machine





Strut channel roll forming machine is designed to produce this strut channels in different thickness, profiles, sizes.
below are some pictures for your reference:

41x21 Strut Channel machine41x21 Strut Channel machine

41x21 Strut Channel machine41x21 Strut Channel machine

41x21 Strut roll forming machine41x21 Strut roll forming machine

41x21 Strut roll forming machine41x21 Strut roll forming machine


If you need this strut framing rollforming line, please kindly send me an inquiry as below: "Inquiry Zone"

i will give you a positive feedback in short time!
