Curving machine with Convex Curved and Concave curved

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Basic Info

Model No.: AI-CURVER

Tile Type: Colored Steel

Certification: SGS, CE

Condition: New

Customized: Customized

Usage: Roof

Transmission Method: Machinery

Motor Power: 4KW

Hydraulic Power: 2.2kw

Motor Power For Size Changed: 0.55KW

Voltage: 380V/50HZ/3PH Or As Customized Design Accordingly

Forming Steps: 3

Curved Thickness For Alu: 0.7-1.2mm

Curved Thickness For Steel: 0.6-1.0mm

In Width Of Tapered Roof Curved: 250mm

Max Width Of Tapered Roof Curved: 600m

Min Curved Radius For Aluminum Roofing: Convex Curved 2m,Concave Curved 6m

Additional Info

Packaging: Plastic film packaged and then loaded into container

Productivity: 10-15 piecec per minute

Brand: AP

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 sets / year

Certificate: SGS,CE

HS Code: 8455221000

Port: Shanghai Port,Zhangjiagang Port,Tianjin Port

Product Description

Curving machine with Convex Curved and Concave curved

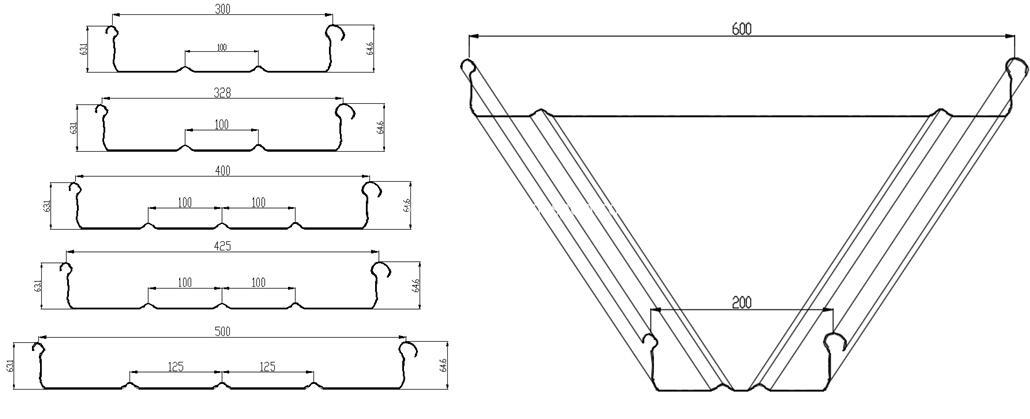

Curving machine with Convex Curved and Concave curved adopts the PLC touch screen, full automatic line to curve the standing seam panel. YX65-300-600 Automatic Adjusted Smooth Curving machine with Convex Curved and Concave curved (For kalzip style curving). Curving the roofing with convex and concave can be in the same sheet,([S" shape,"M" Shape), Material for rollers:Gcr15 steel with heat treatment ,Plated hard chrome,Paint color:base on customer.Min curved radius for Aluminum roofing:Convex Curved 2m,Concave curved 6m,Min curved radius for Steel roofing:Convex Curved 5m,Concave curved 9m. Curved thickness for Alu:0.7-1.2mm.Curved thickness for Steel:0.6-1.0mm; Width of straight roofing to curve 300-600mm. Min Width of tapered roof curved:250mm. Max Width of tapered roof curved:600m.

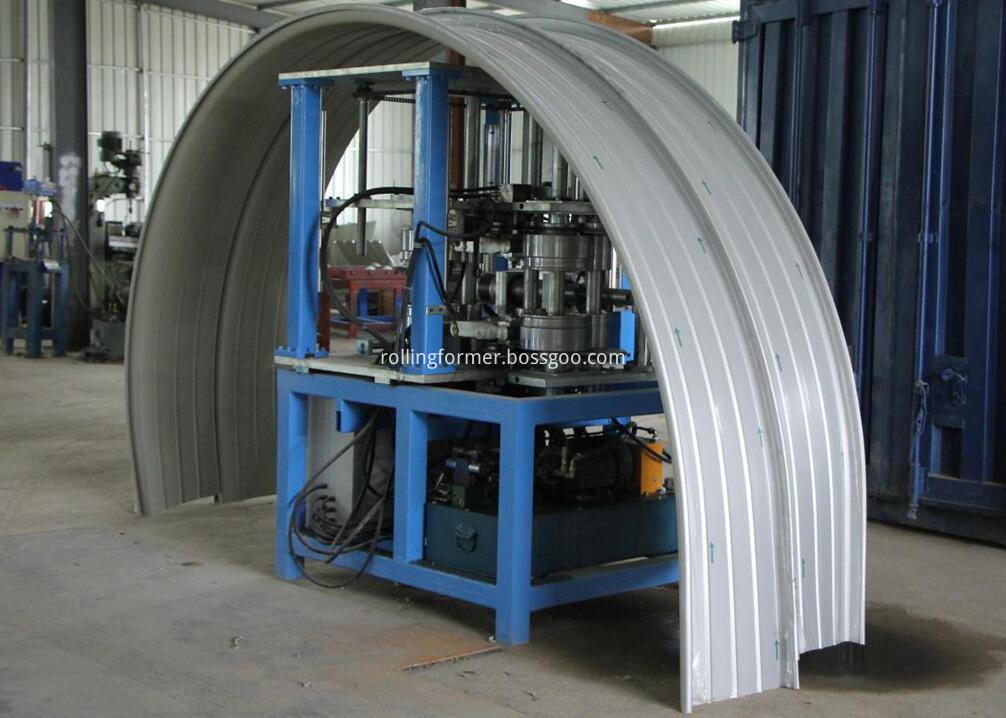

standing seam rollformer curver

Main Accessories:
(1) Main Curving Machine
(2) PLC Computer Controlling System With Touch Screen
   ( Brand: Schneider  for frequency changer,PLC,and other parts,Omron for encoder);
(3) Hydraulic System
(4) Protective Steel Box;
(5) Tools;
(6) Operation Manual.

standing seam panel curver



standing seam rollformer curver 2

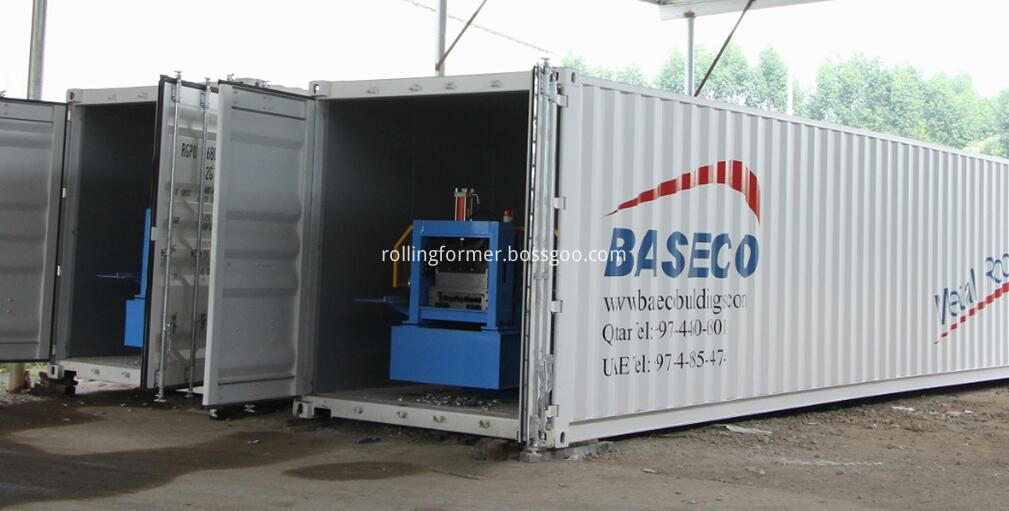

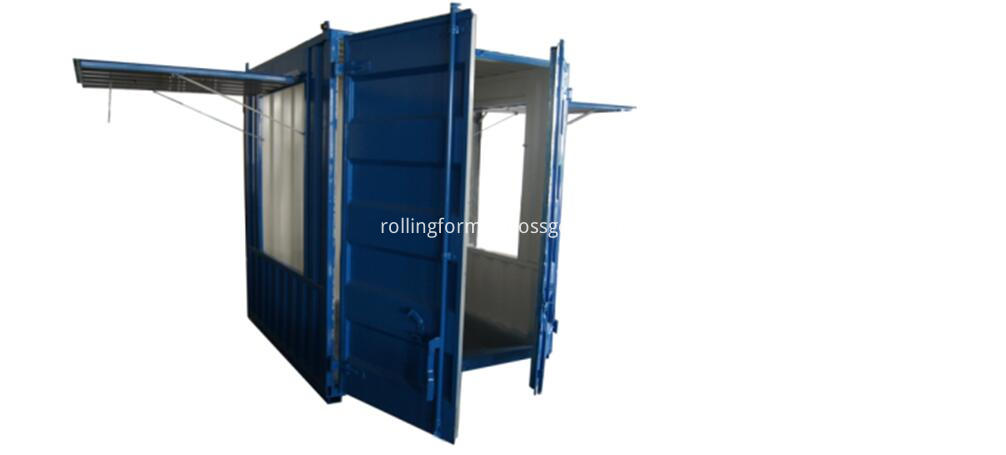

The standing seam curving machine can add a container for convenient used, the container size is: 1.8m×1.8m×2.1m

Above information is for the standing seam curver machine, if you want to know more about the standing seam curver, please send me an inquiry, i will repaly you immidiately, and send you the working videos of the standing seam machine and the offer. Besides, we are professional in manufacturing the standing seam panel rollformer, and the standing seam panel seamer tool slipping tool for installing the standing seam panel.

standing seam panel rollfoming line 5

below is the standing seam panel rollforming lines, if you need further information related to the standing seam panel roofing building system,

please send me an inquiry follow below inquiry construction.

standing seam panel rollfoming line 9

More information related to the standing seam roofing panel installation, you need below accessories:

standing seam panel accessories


standing seam panel accessories 1


standing seam panel accessories 3
