Steel bolting rollformer friction bolts rollforming line

Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: AP-BOLTS-ROLLFORMER

Condition: New

Certification: SGS, ISO 9001:2000, CE

Automation: Automatic

Suitable for: Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

Type: Cnc Bending Machine

Features: High Precision

Voltage: Can Be Customed Designed

Machine Structural: Memerical Archway

Roller Distance: 200mm

Roller Material: 42CrMo

Roller Designing Software: FEA Analysis

Name: Wheel Rim Rollformer

Function: Forming And Bending The Wheel Rim

Shaft Diameter: 80mm

Roller Station: 25 Rows

Additional Info

Packaging: steel bolting rollformer friction bolts rollformer line will be with plstic film packaged well and then loaded into the container

Productivity: 25 meter/min

Brand: ZY

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 sets / year

Certificate: CE,ISO

HS Code: 8455221000

Port: Shanghai Port,Zhangjiagang Port,Tianjin Port

Product Description

 Steel bolting rollformer friction bolts rollforming line


Steel bolting rollformer friction bolts rollformer line can produce the steel friction rock bolts for sizes of 33mm(1-19/64").35mm(1-3/8").39mm(1-1/2").46mm(1-13/16"), thickness with 2mm-4mm. also with the steel bolts necking, and metal bolts notching. The steel bolts are with high strength steel and avaiable in different diameters and length, and available for using in corrosive environments. The friction rock bolts are made from high strength steel, such as HSLA 60. The friction bolts are available in galvanized steel and stainless stell, increasing capacity for prectecting from corrosion.

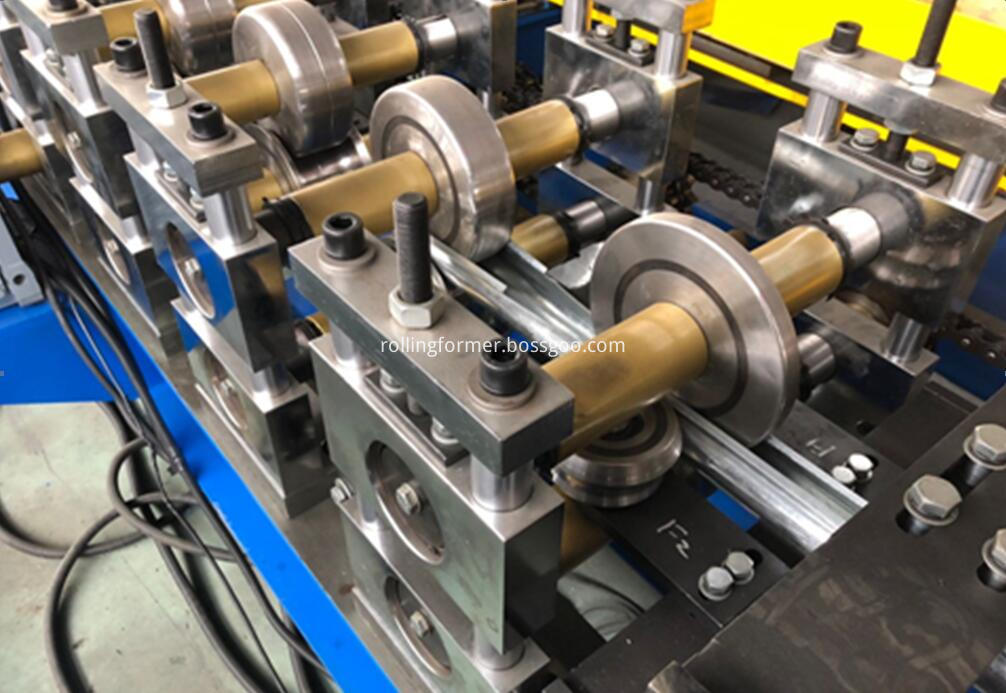

steel bolting rollformer

steel bolting rollforming line 1steel bolting rollforming line 1

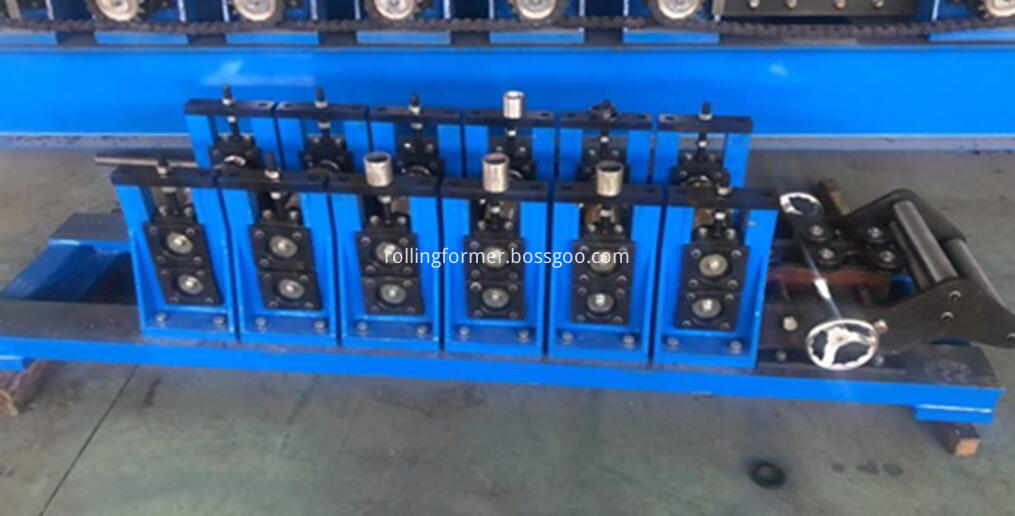

steel bolting rollforming line
Steel bolting rollformer friction bolts rollformer line is designed to produce the steel bolts in high capacity, the speed can reach 100 feet per minute. Steel bolting rollformer friction bolts rollformer line is designed with the function of processing the bolts including: rollforming, cutting,necking,notching,automatic stacker and packing.

friction bolts rollformer 1

friction bolts rollformer 2

friction bolts rollformer 8

Whole line of Steel bolting rollformer friction bolts rollformer line
including below parts: 35 mm friction bolts Rafted molds (14 stands) 1 set
Friction bolts 39 roll former 5 tons Hydraulic de-coiler 1 set
Leveling and Feeding system 1 set
Hydraulic notching system 1 set
roll forming machine (14 stands) 1 set
Speedometer system 1 set
Turkey Straightening system 1 set
Fly saw cutting 1 set
Hydraulic station 1 set
PLC controlling cabinet 1 set
Receive table 2 sets

friction bolts rollformer 3
5 Ton Hydraulic Decoiler Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5 T
Inner diameter: 508--610mm

friction bolts rollformer 4

Size: 4500х1800х1400
Weight t: 5 tons
Voltage:600V 50HZ 3Phase
Roller fixer : Pillar structure
Frame : Pillar Structural
Drive mode: Chain transmission
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ 60mm
Number of rollers : 14 stands
Speed: 10m/min (Including notching and cutting)
Main motor: 5.5 KW
Length tolerance 3m ± 1.5mm

friction bolts rollformer 5

Steel bolting rollformer friction bolts rollformer line for the size of 33mm, 35mm, 39mm, 46mm, by adjusting and changing the molds, it takes about 1.5 hour. also can be designed as with rafted rollformer, it talkes 20-30 minute to finish this.


friction bolts rollformer 7

friction bolts rollformer 6


If you want to know more about the steel bolting rollformer friction bolts rollformer line, please feel free contact me, please!

Our factory is professional design and manufacturer the rollformers for different profiles. The steel bolting rollformer friction bolts rollformer line,round tube roll forming machine, square tube roll forming machine, CZ purline roll forming machine, metal roofing roll forming machines, shutter door roll forming machine, garage door panel roll forming machine, cable tray roll forming machine, door frame roll forming machine, and other fields roll forming machine, for example, the automobile V band calamp roll forming and bending machine, elevator guide rail roll forming machine, and so on.

If you need any machine, kindly let me know your profile size, thickness, and drawing, i will send you the designing machine and offers, some machine running vidoes for your reference!

If you do not have any information, you are free to contact me, i will send you some drawing for your rference!
