|Payment Type:||L/C,T/T,Paypal,Western Union|
|Min. Order:||1 Set/Sets|
|Delivery Time:||60 Days|
Model No.: AP-Tube-Rollformer
Certification: SGS, ISO 9001:2000, CE
Suitable for: Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type: Cnc Bending Machine
Features: High Precision
Voltage: Can Be Customed Designed
Machine Structural: Memerical Archway
Roller Distance: 200mm
Roller Material: 42CrMo
Roller Designing Software: FEA Analysis
Name: Wheel Rim Rollformer
Function: Forming And Bending The Wheel Rim
Shaft Diameter: 80mm
Roller Station: 25 Rows
Packaging: interlock seamless Square tube roll forming machine will be with plstic film packaged well and then loaded into the container
Productivity: 25 meter/min
Place of Origin: China
Supply Ability: 100 sets / year
HS Code: 8455221000
Port: Shanghai Port,Zhangjiagang Port,Tianjin Port

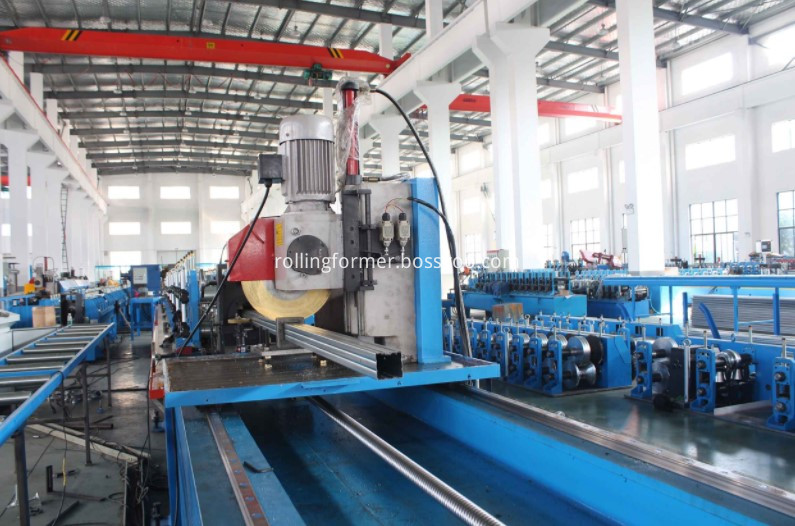

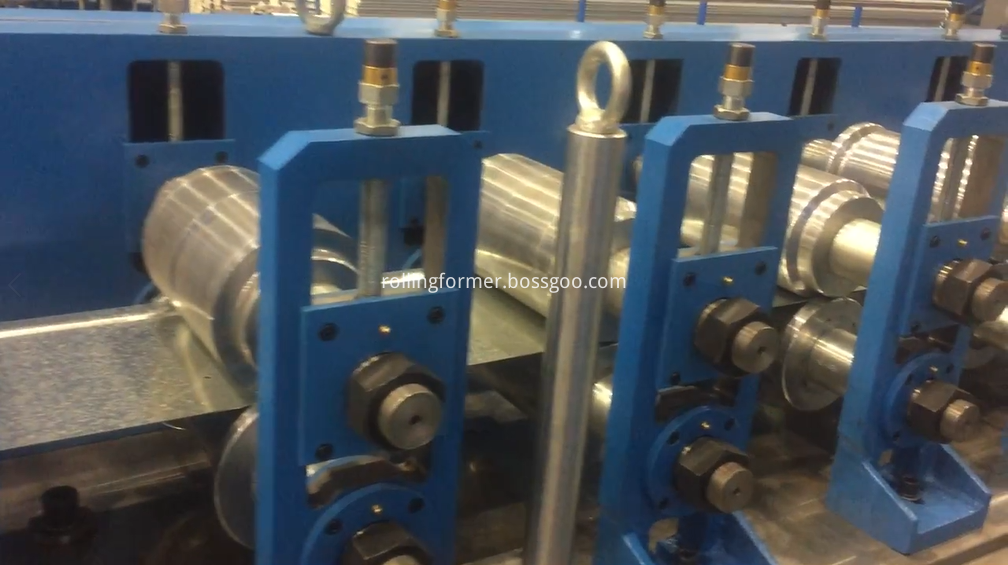

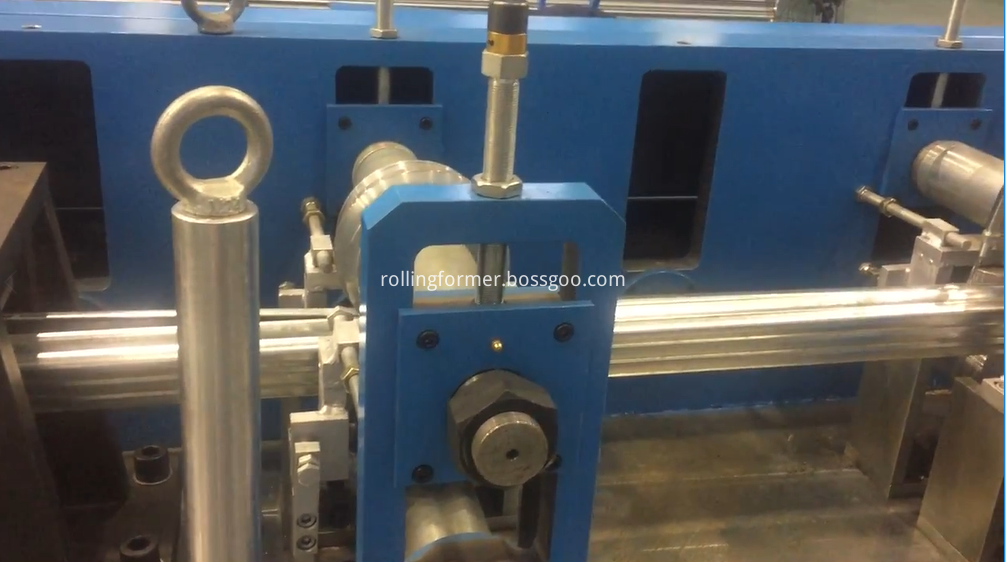

Interlock seamless Square tube roll forming machine make the octagonal tubes. This Perforated metal octagonal tube roll forming machine is different from the high frequency tube welding machine. interlock seamless Square tube roll forming machine is a interlock roll forming tube making machine.

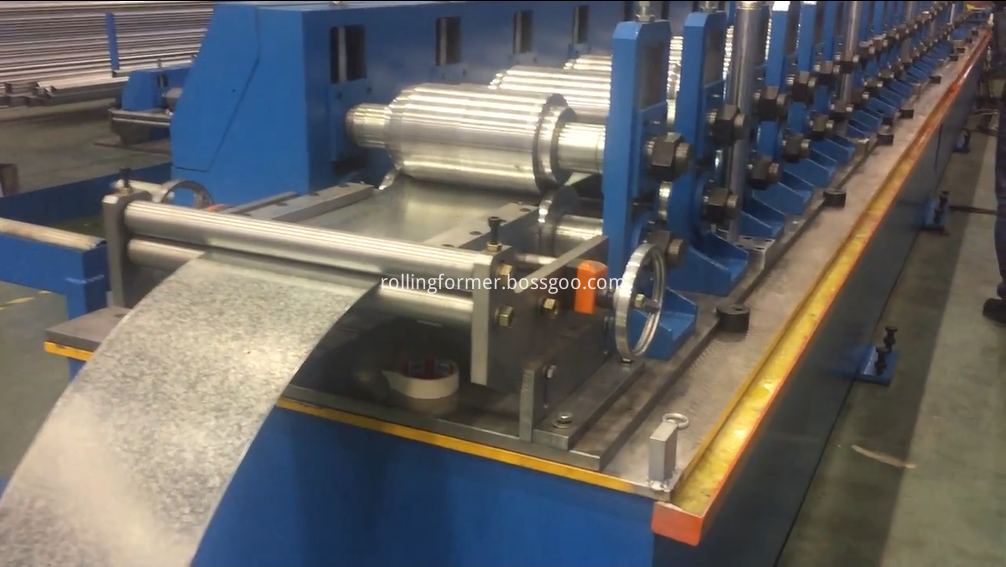

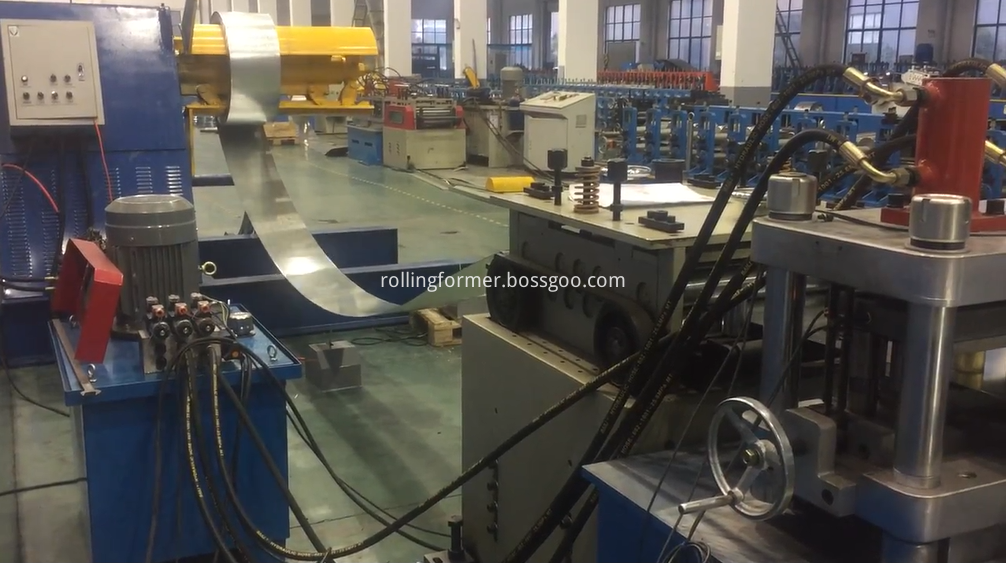

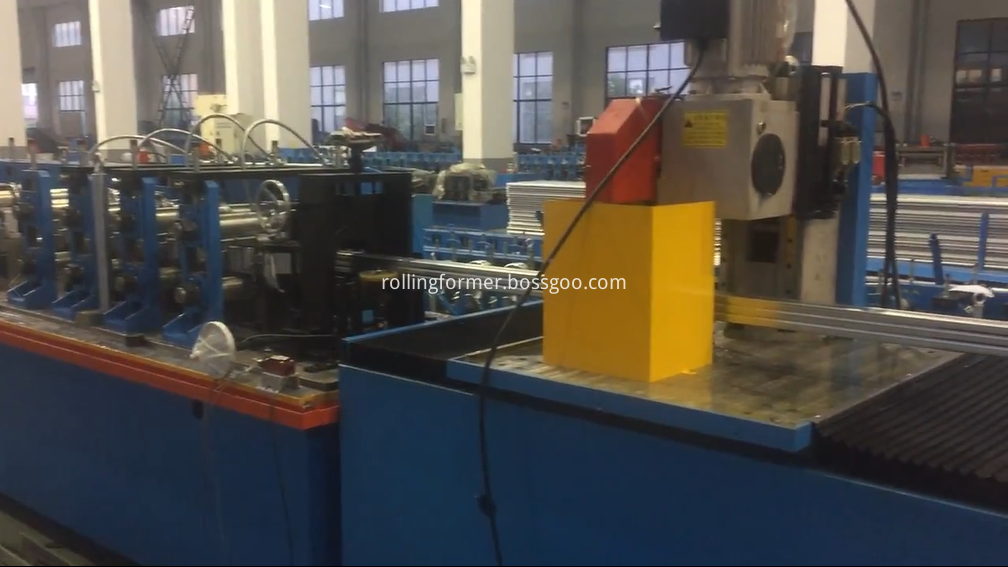

interlock seamless Square tube roll forming machine including Decoiler,automatic punching machine, material feeding and leveling system, Main roll forming machine,lubricating and cooling system,servo tracking cutting system, receiving table.
Square tube rollformers round tube roll forming machine
Forming stations: 23 rows
Roller shaft diameter: 60mm
Machine plater thickness: 22mm

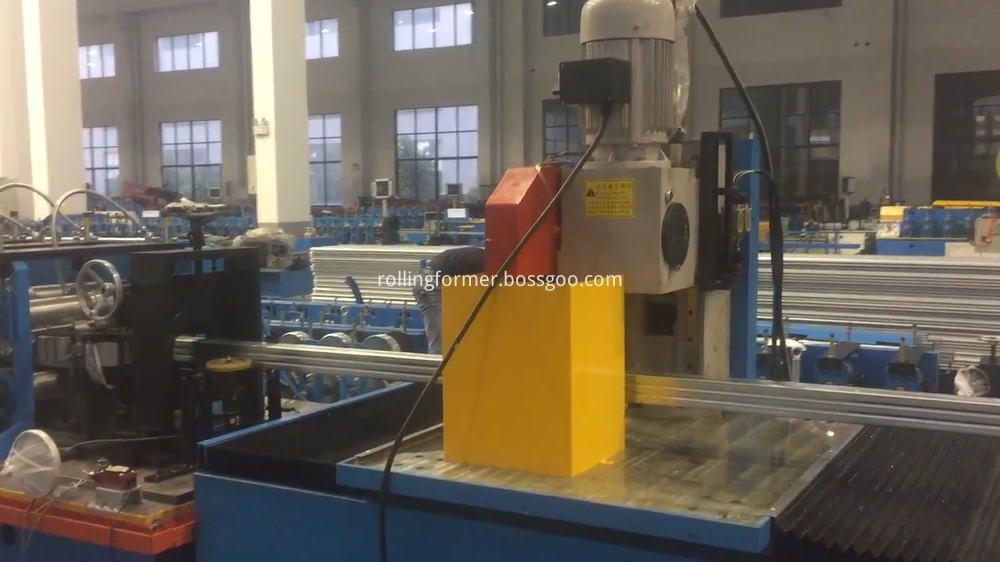

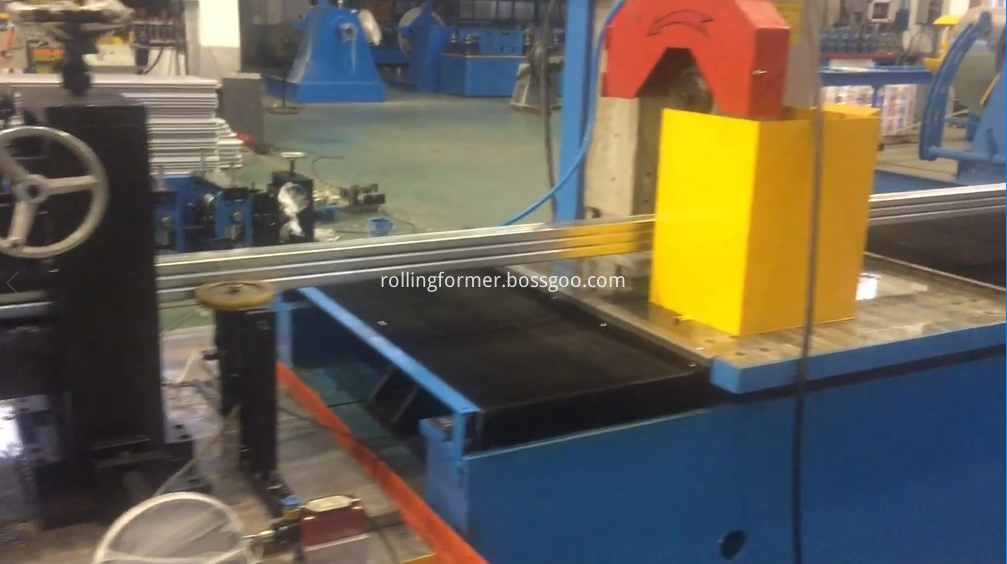

Cutting method: PLC controling pneumatic cutting
If you want to know more about the Square tube rollformers round tube roll forming machine, please feel free contact me, please!
Our factory is professional design and manufacturer the rollformers for different profiles. The round tube roll forming machine, square tube roll forming machine, CZ purline roll forming machine, metal roofing roll forming machines, shutter door roll forming machine, garage door panel roll forming machine, cable tray roll forming machine, door frame roll forming machine, and other fields roll forming machine, for example, the automobile V band calamp roll forming and bending machine, elevator guide rail roll forming machine, and so on.
If you need any machine, kindly let me know your profile size, thickness, and drawing, i will send you the designing machine and offers, some machine running vidoes for your reference!
If you do not have any information, you are free to contact me, i will send you some drawing for your rference!
