Garage door panel punching roll forming machine

Unit Price: USD 10000.0000 / Set/Sets
Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Basic Info

Model No.: AP-Garage door panel

Warranty: 2 Years

Certification: CE, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Controlling: Panasonic PLC

Roller Material: Cr12MoV

Shaft Material: # 45 Steel

Hardened Reducer: ZLY-160

Memorial Arch Frame Thickness: 50 Mm

Work Speed: 0-10 Meters/min

Transport: Gear Box Transmission

Type Of Cutting: Hydraulic Cutting

Full Automatic: CNC

Main Power: 15 KW

Additional Info

Packaging: garage door panel punching roll forming machine be packged by plastic film full packaged, and loaded into the standard container

Productivity: 20 sets per month

Brand: CH

Transportation: Ocean,Land

Place of Origin: China, Wuxi

Supply Ability: 300 sets per year

Certificate: CE,ISO9001

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port

Product Description

Garage door panel punching roll forming machine

Garage door panel punching roll forming machine is a new developed rollformers for making the garage door panels automaticlly. Garage door panel punching roll forming machine is a multifunctional roll forming line, which owns the designing of other fuction device such as the film laminating, embossing patterns, edges roll forming and cutting at set length.

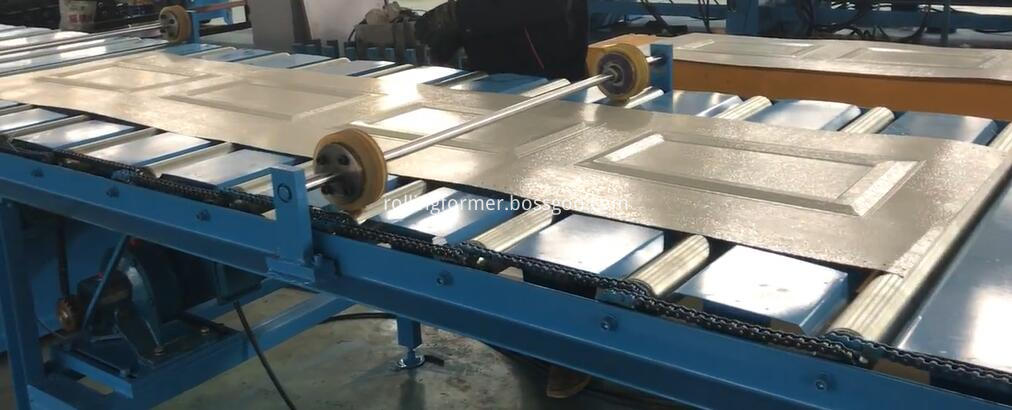

garage door forming machine 8

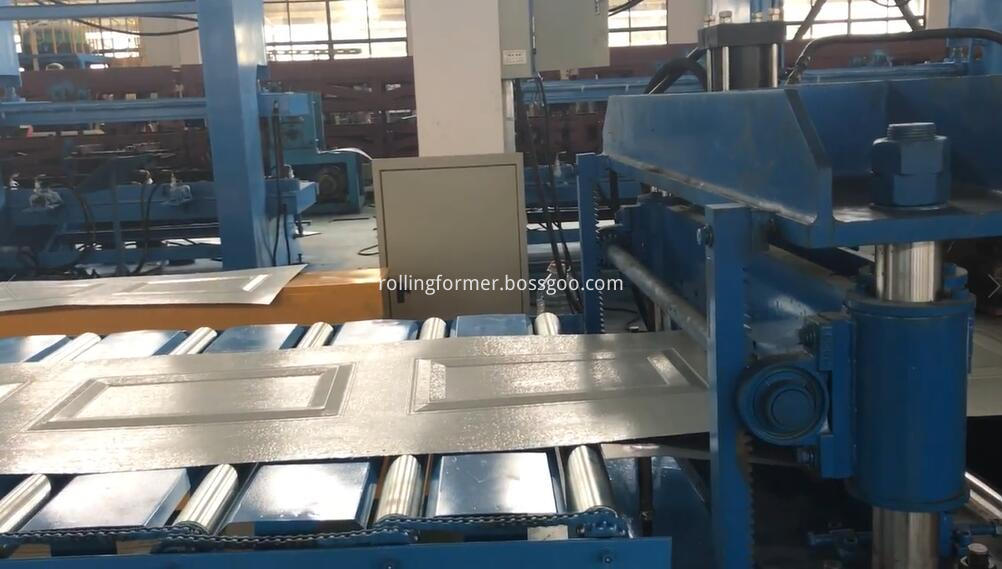

garage door forming machine 4


The whole line of the Garage door panel punching roll forming machine working process is as below:

5 tons hydraulic decoiler,Embossing,door panel surface patern punching system. cutting device, Main roll forming machine body, and receiving garage door panels.

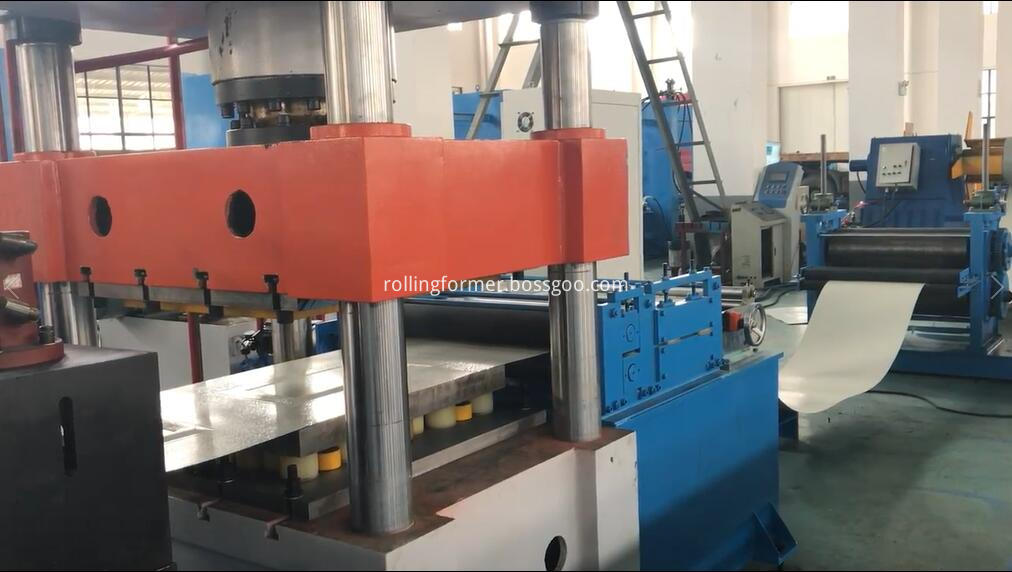

garage door forming machine 9


4. Main Specification
A. 5T manual decoiler
  1) Capacity: 10 ton
  2) Loading width: MAX 1500mm
  3) Valid expanding range for coil inner diameter: 450-550mm

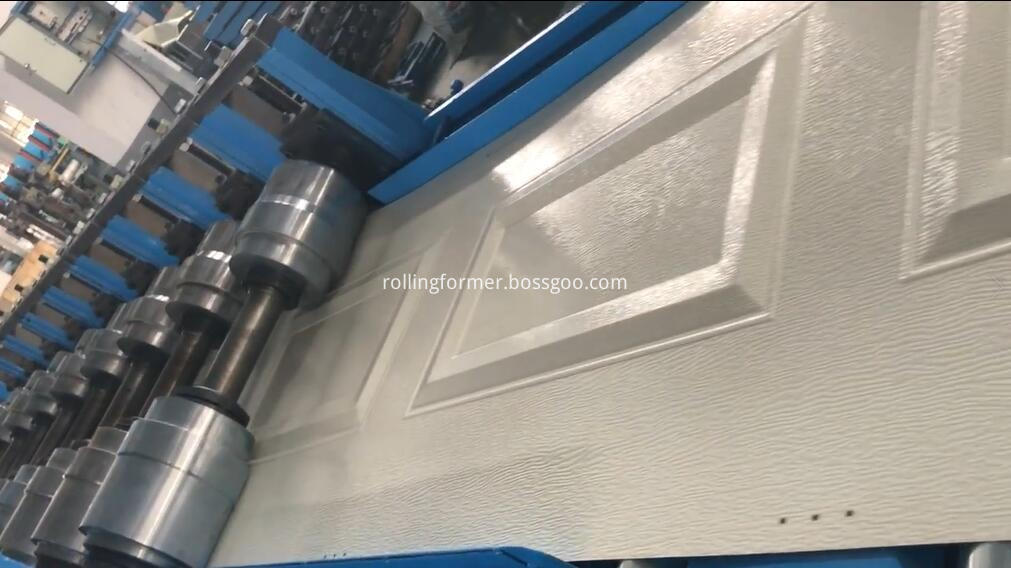

garage door forming machine

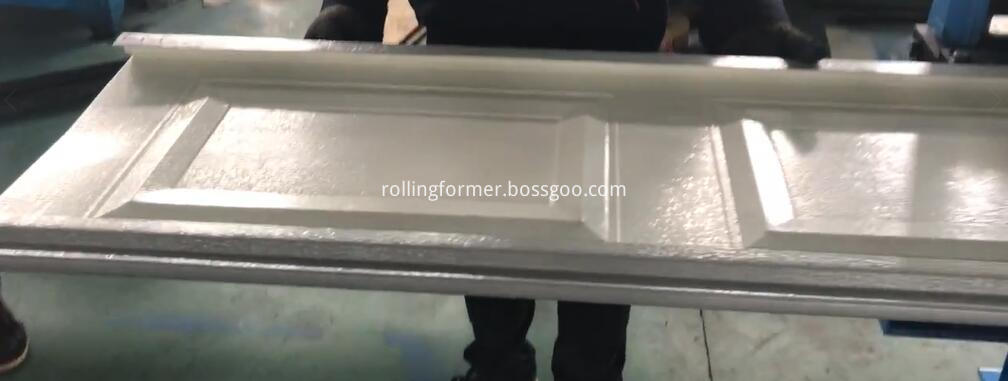

garage door forming machine 1

Hydraulic decoiler capacity:5 tons
sheet width: 1200mm
Embossing rollers diameter:300mm

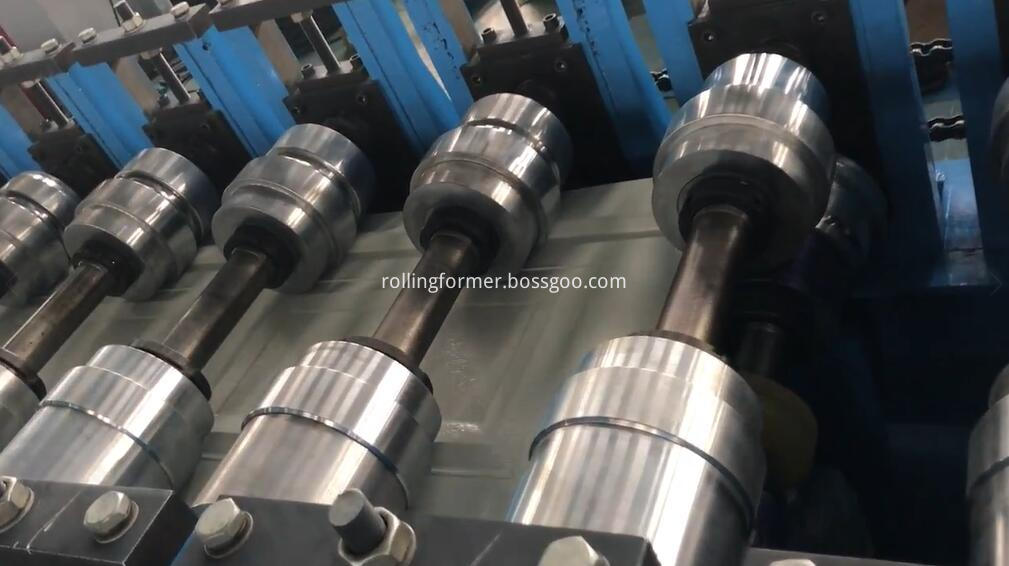

garage door forming machine 6

B. Main roll forming system with cutting
  1) Main motor power: 18.5kw.
  2) Hydraulic power: 5.5KW.
  3) Structure: middle plate, 20mm thickness.
  4) Shaft material: 45# steel processing.
  5) Shaft diameter:65mm.
  6) Drive: Chain, 1.5inch.
  7) Roll station: 20groups.
  8) Roller material: GCR15 steel after quenching processing HRC58-62 C, chrome
                 plated surface.
  9) Working speed: 5-10m/min.

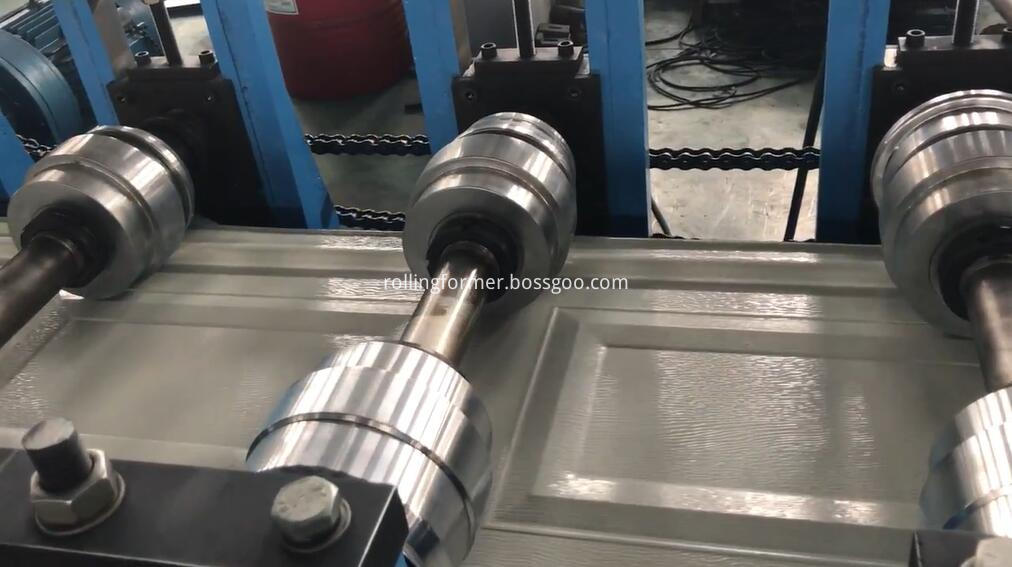

garage door forming machine 7

roller station: 26 stations
feeding thickness:0.3-0.8mm
Garage door panel width range:400-600mm
Main roll forming machine power:11 KW
Transmission: gear box transmission

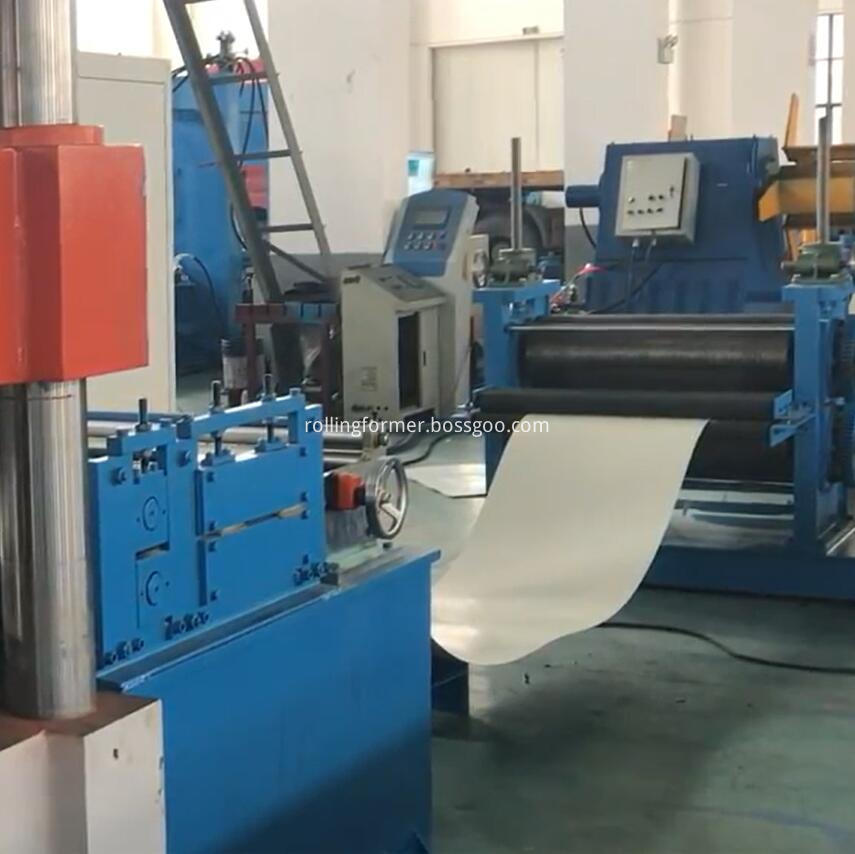

garage door forming machine 3

 10) Cutting: Hydraulic cutting after forming, Auto cutting when reach the set
           length.
 11) Cutting blade: Cr12mov quenching treatment 58-62°.
 12) Cutting tolerance: +/- 1.0mm,
 13) Length Tolerance: ±1.5mm
 14) Weight of machine: about 15ton
 15) Size of machine: About8.5x2.4x1.5m L x W x H
 16) Color of machine: depend on customer
 18) Coder: Omron
 19) Computer operating panel: touching screen
 20) Electric system brand: Delta or as you need

garage door forming machine 4


Our factory is professional making the Garage Door Panel Punching Machine, if you want to know more about this Garage Door Panel Punching Machine, kindly please contact me, freely!

Besides, our factory is also professional design and manufacturer the rollformers ,such as, steel framing machine, suspended ceiling channel C stud and U track rollformers, CZ purline rollformers, metal roofing sheet roll forming machine, cable tray roll forming machine, steel framing strut roll forming machine and other rollfoming equipments. We can design the machine according to your profile shape, drawing, thickness, and material, and any customed requirements.

If you want to know more about our roll forming machines, please feel free contact me, please!
