Door frame rollformer door frame roll formng machine

Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 50 Days

Basic Info

Model No.: ZT-DOOR FRAME ROLLFORMER

Certification: CE, SGS, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Drive: Electromagnetic

Punching Cutting Method: First Punching And Cutting Before Roll Forming

Shaft Diameter: 70mm

Roll Material: Gcr15 Steel After Finishing, Quenching HRC58-62 °C

Leveling Machine Power: 3kw

Control Method: Panasonic PLC

Thickness: 0,8--1,5mm

Working Speed: 10-15 M / Min (excluding Cutting Time)

Expanded Width: 245mm`

Voltage: Can Be Made According To Customer's Country

Machine Color: Blue Color Or Can Be Customized Designed

Additional Info

Packaging: door frame rollformer door frame roll formng machine will be packged by the PE film to protect it from rusty, then loaded into the container.

Productivity: 150 sets per year

Brand: ZT

Transportation: Ocean,Land

Place of Origin: China, Wuxi City

Supply Ability: 10 sets per month

Certificate: CE,ISO

HS Code: 8455221000

Port: Shanghai Port,Tianjin Port,Zhangjiagang Port

Product Description

Door frame rollformer door frame roll formng machine

Thickness of the door frame is from 1.0mm to 2.5mm,Material is galvanized steel. There are varieties profile of door frames, some door frames are with connecting holes and lock holes, so that after one piece of the door frame is formed, it can form a door in short time, just connect the slips by tool, it is very convenient speedframes.Our company is a specialized equipment machinery manufacturing enterprise integrating design, development, manufacturing, assembly and debugging. It has advanced CNC machining center, 2.5 vertical lathe, CNC boring and milling machine, CNC double-sided milling machine and other large professional equipment. With perfect testing methods and advanced testing equipment, it can provide users with excellent performance, reliable use of products and satisfactory after-sales service. Our company mainly produces various series of profiles rollforming line, speedframe door frame rollforming line, etc., and designs and manufactures non-standard equipment according to user requirements.

door frame machine 7

First, the function of the speedframe door frame rollforming line: Mainly used for the full molding and semi-molding of the door frame material, suitable for security doors, fire doors, stainless steel doors, movable doors. Second, the speedframe door frame rollforming line specifications Model: Single lace molding machine (formed only with curved lace parts, other right angles are completed on the bending machine), bottom frame forming machine, frame forming machine (separate frame and hinge frame, top frame) Composite door frame forming machine, composite door bottom frame forming machine. Customers can provide cross-section drawings or sample customization, and our company can also provide cross-sectional reference. Third, the door frame molding machine performance structure: There are semi-automatic control and fully automatic computer touch screen configuration (discharge rack - feeding open - host molding - straightening part - hydraulic cut) adjustable speed, adjustable length, Counting, you can enter 3-6 specifications and quantity at the same time. The thickness of the molding material is 8-15 meters per minute: 0.3mm-2.0mm.


door frame machine 8

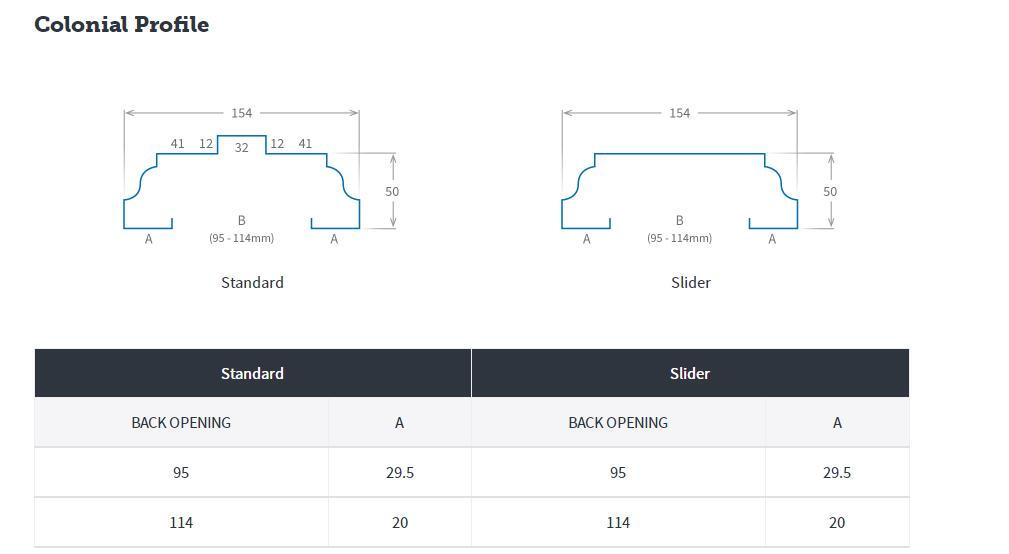

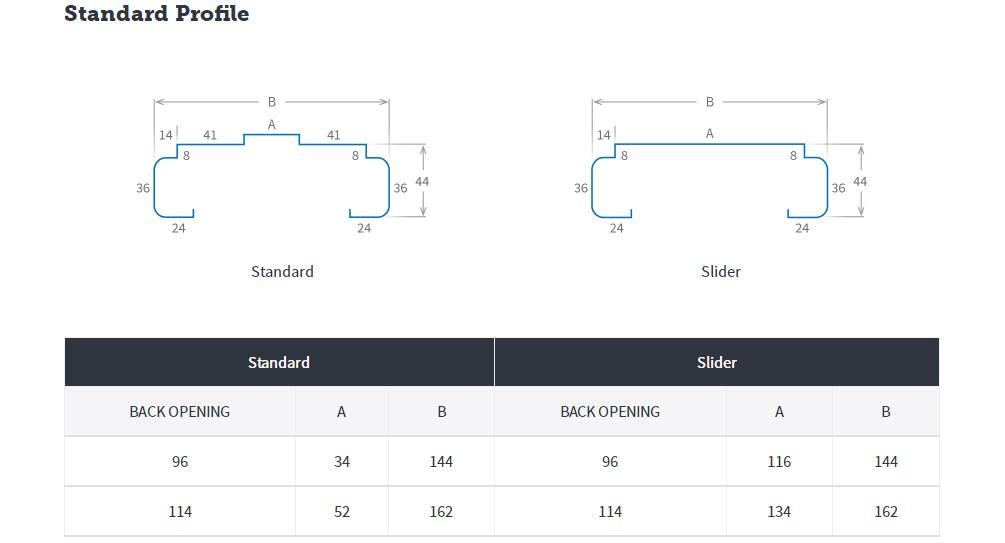

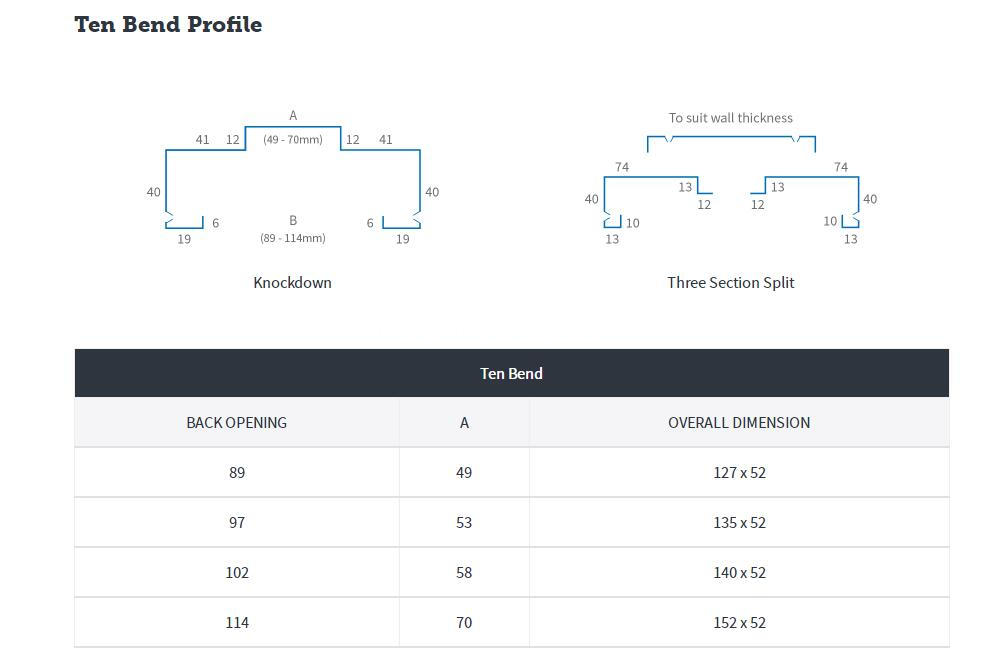

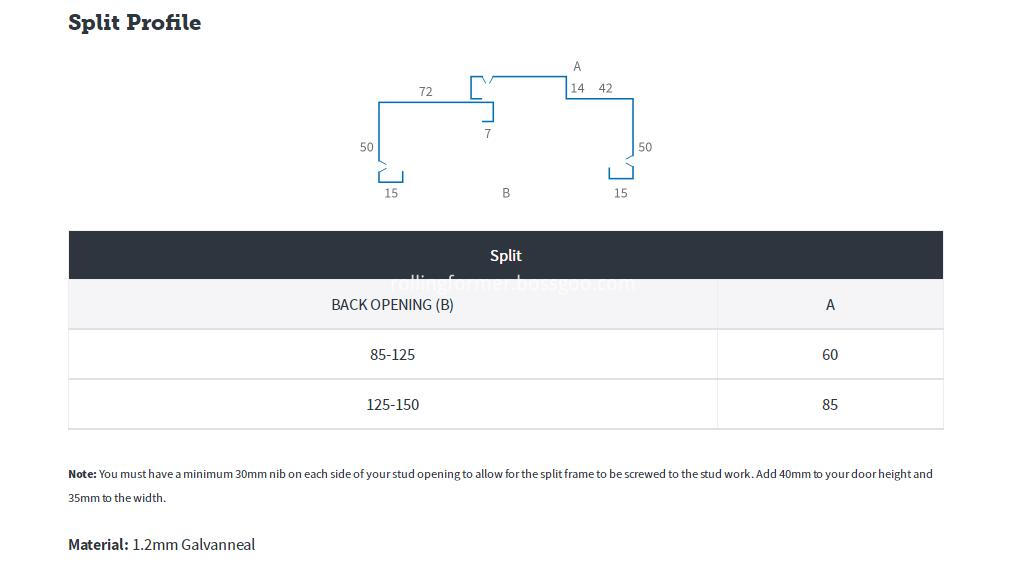

Below are some drawing of the speedframe door frame for your reference:

door frame rollformer drawing 1

door frame rollformer drawing 2

door frame rollformer drawing 3

door frame rollformer drawing

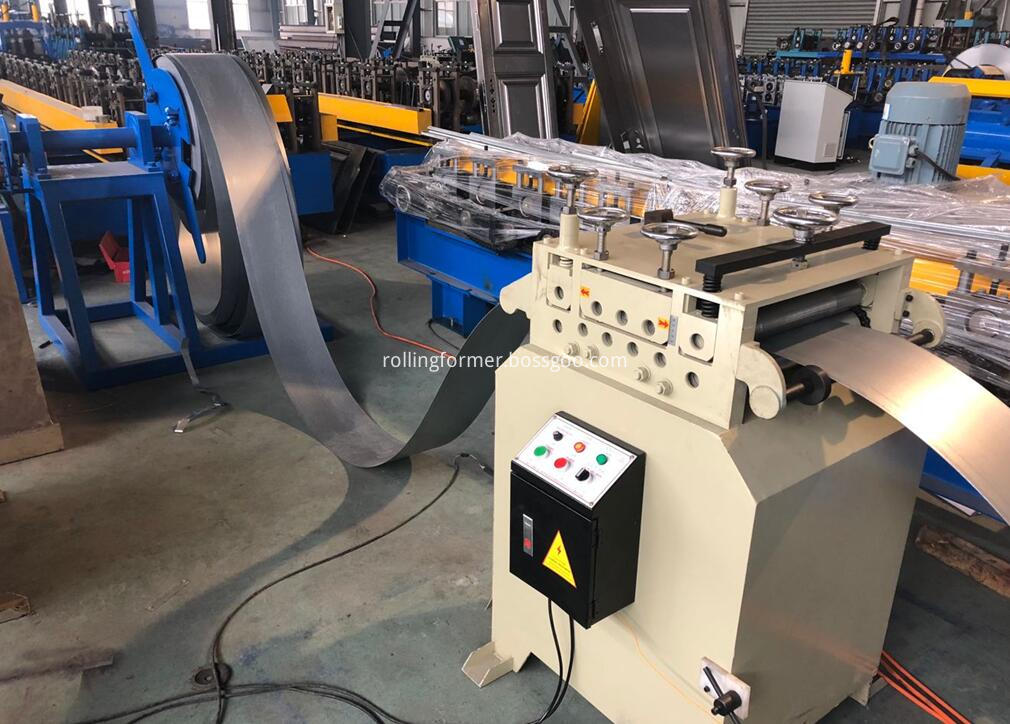

The door frame machine consists of the following parts, unwinding, punching, leveling, roll forming, and shearing. This is a flow chart of a conventional door frame forming machine. Since the punching portion needs to punch out a large connecting hole, if it is a front punching hole and a rear cutting method, it is easy to jam, causing problems in the operation of the door frame forming machine. If it is the front punching, the front cutting, the forming of a section, thus avoiding the problem of the jam.

door frame rollformer door frame roll formng machine

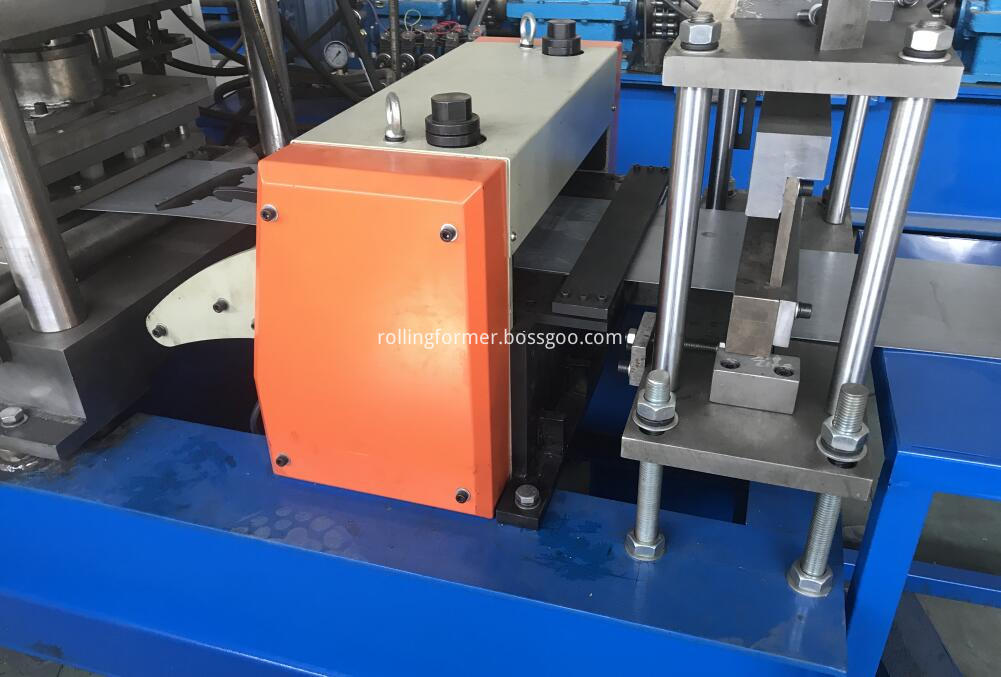

This is the holes punching and cutting system of the door frame rollformer.

door frame rollformer door frame roll formng machine 2

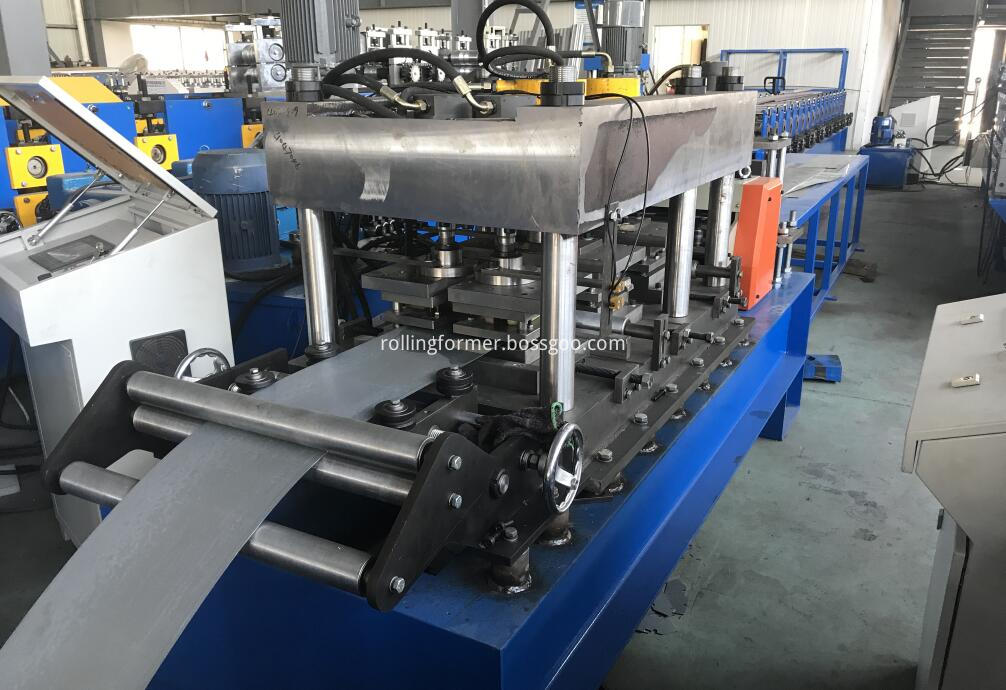

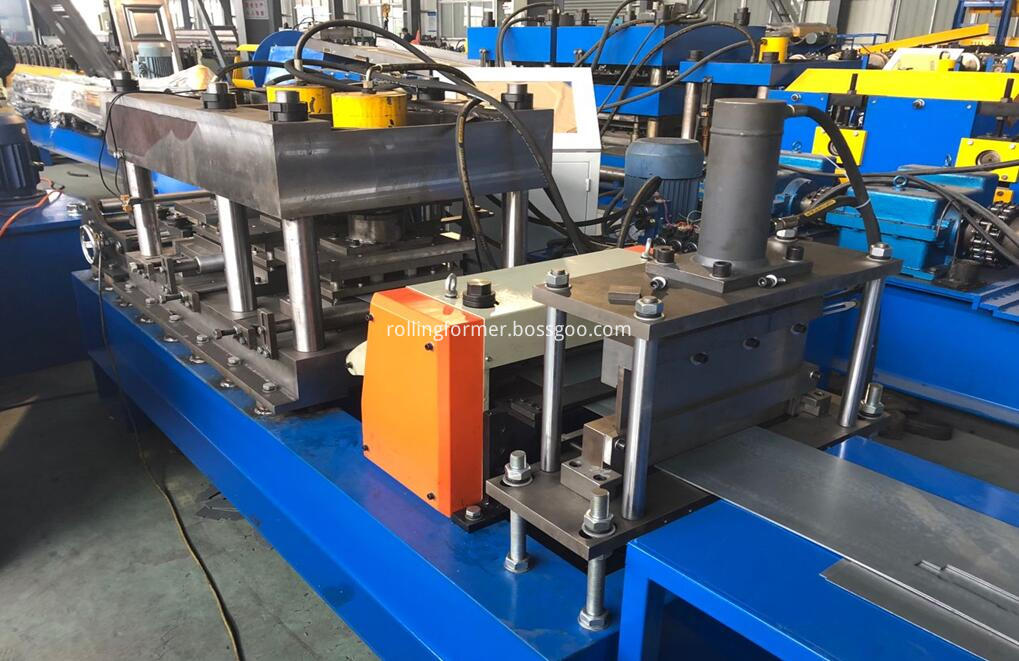

This is the main machine body of the door frame rollforming line. specifications are as below:

Equipment type Yx12x30x157mm
Expanded width 245mm`
Working speed 10-15 m / min (excluding cutting time)
Pressed sheet thickness 0,8--1,5mm
Control method Panasonic PLC
Dispensing rack 2 tons of manual discharge rack
Leveling machine
Leveling machine power 3kw
Word service feeder
Word service feeder power 2,2kw
Punching frame A set of [4 sets of punching structure]
Mold 4 sets
Number of molding channels 16
Roll material Gcr15 steel after finishing, quenching HRC58-62 ° C, surface chrome treatment
Shaft material and shaft diameter 45# steel finishing, shaft diameter ¢65mm
Host power 7,5kw
door frame rollformer door frame roll formng machine 33
