|Min. Order:||1 Set/Sets|
|Delivery Time:||50 Days|
Model No.: ZT-J-ROLLFORMING LINE
Certification: CE, SGS, ISO9001
Control Type: CNC
Automatic Grade: Automatic
Total Machine Weight: 3T
Total Length: 5.5m*0.8m*1.2m
Molding Pass: 14
Main Drive Mode: Chain
High Production Speed: 20M/min
Roller Material: Cr12
Main Shaft: 40Cr
Frame And Roof Frame Die Punching: 14 Stations
Cutting Method: Servo Motor Ftracking
Packaging: L profile rollforming line will be packged by the PE film to protect it from rusty, then loaded into the container.
Productivity: 150 sets per year
Place of Origin: China, Wuxi City
Supply Ability: 10 sets per month
HS Code: 8455221000
Port: Shanghai Port,Tianjin Port,Zhangjiagang Port

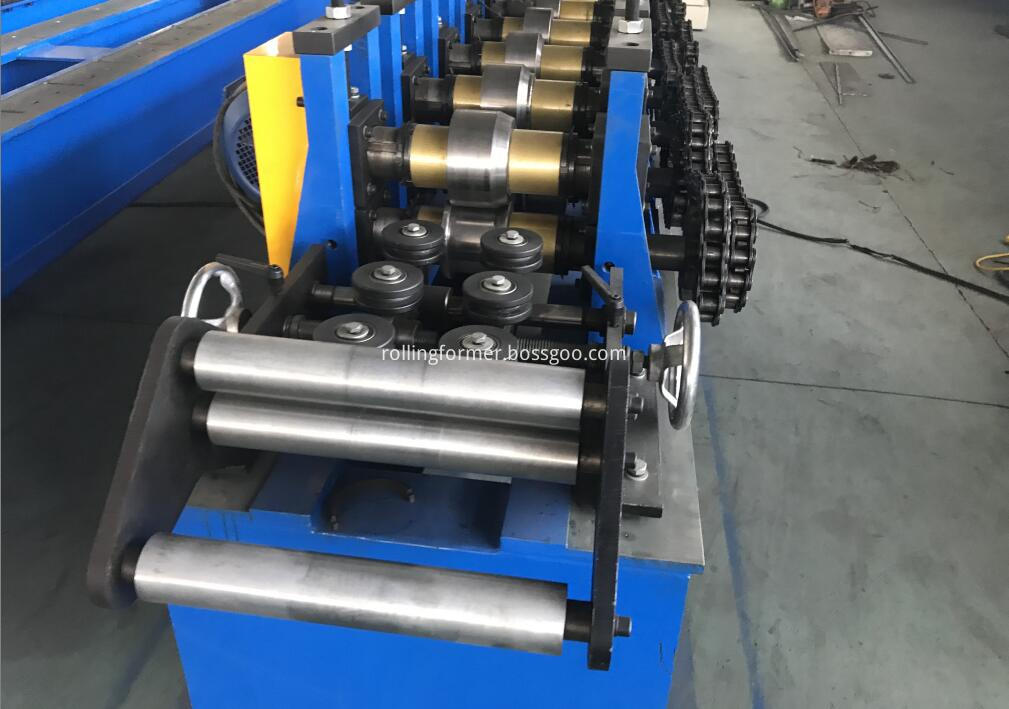

Custom made J profile rollforming line is special designed for a customer which need to produce the J profiles. The thickness of the J profile is 1.5,mm.Custom made J profile rollforming line including below parts: The ,manual decoiler, main roll forming machine, hydraulic cutting system, receliving table. For the main roll forming system, there is a feeding leveling system to adjust the strips width. This machine is with stable archway structural system. The transmission is 1.0 mm chain transmission.

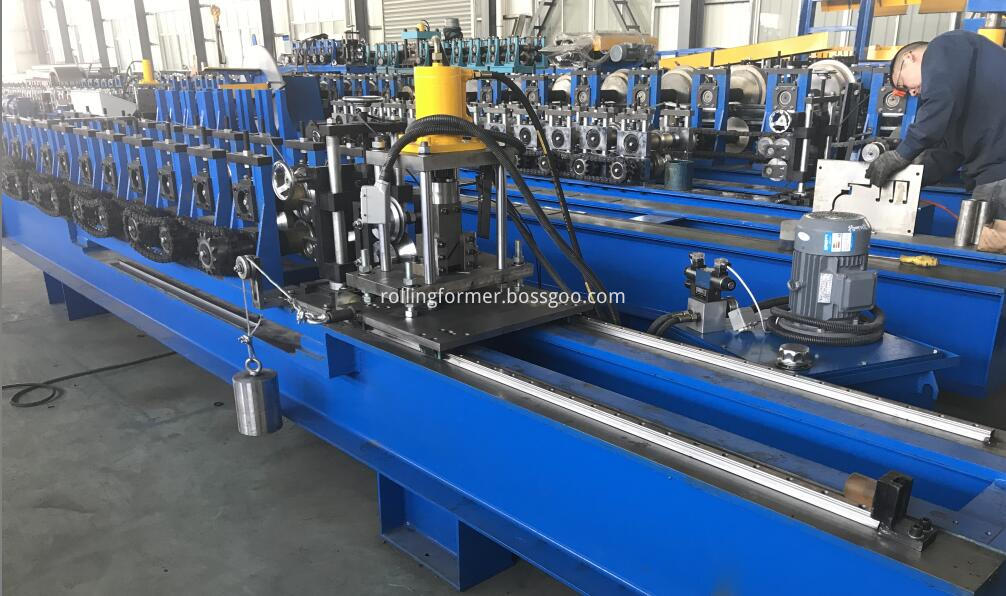

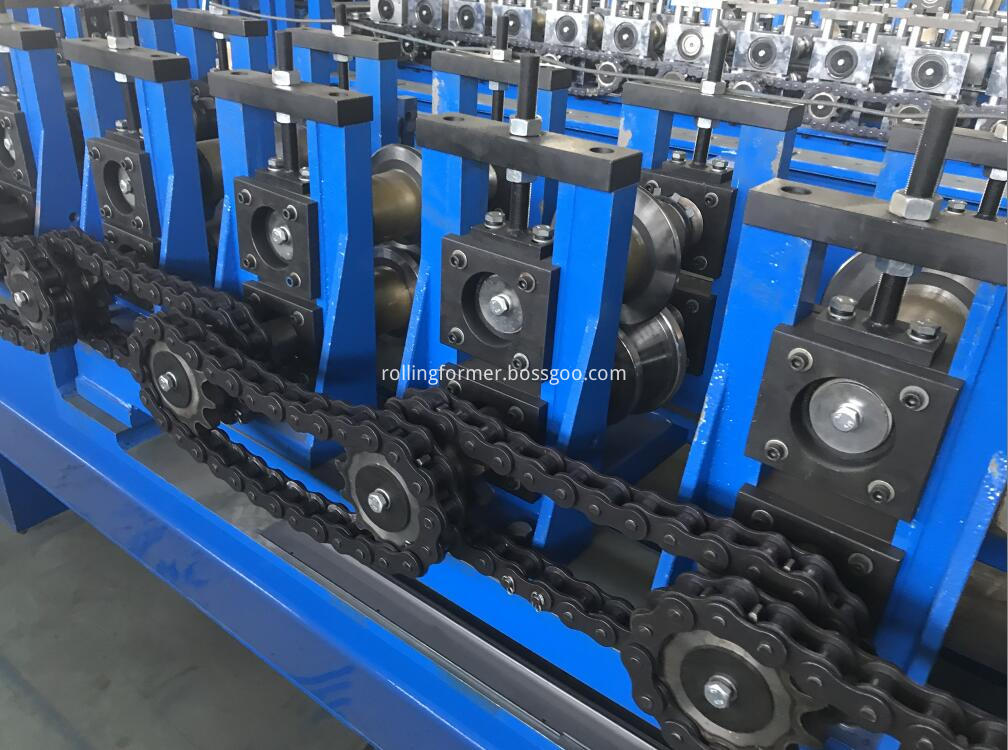

below are some machine running pictures for your reference:

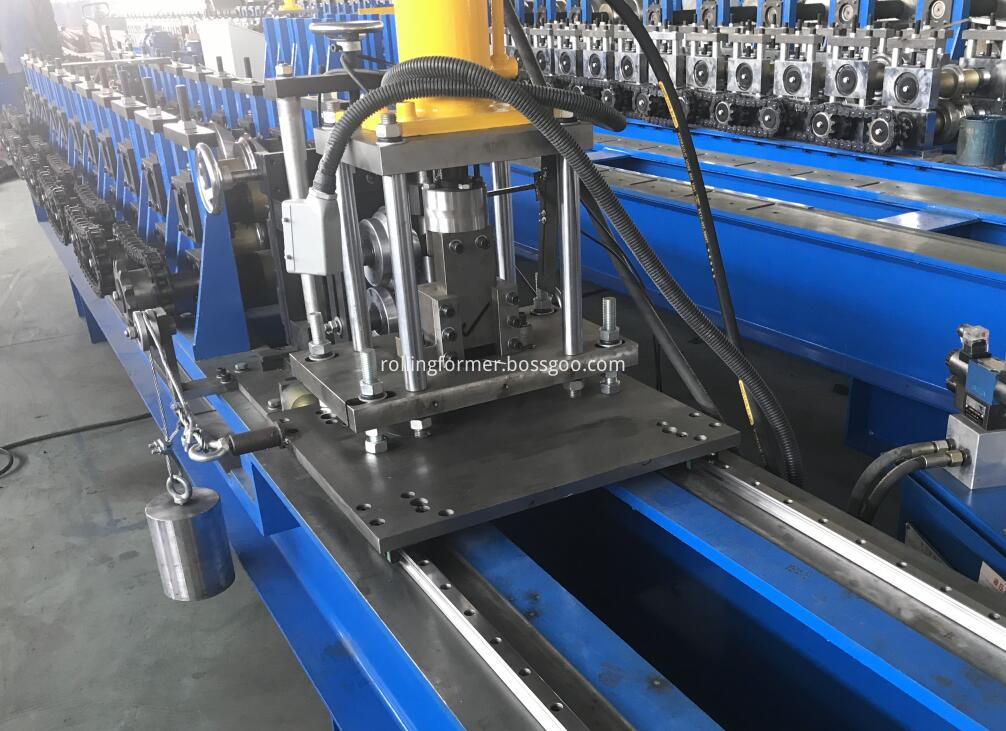

Below is the cutting system for the J profile rollforming line. It is servo motor tracking cutting system.
The specification of the L profile rollforming line is as below:
Controlling Panasonic PLC
Manual De-coiler 2 ton de-coiler
Roller station 13 stations
Post cutting 1 set
Roller material Gcr15 finish machining after quenching HRC58-62℃,chromium coating.
Shaft material and diameter 45# steel finish machining,diameter is ￠70mm
Main power 5.5 kw
Hydraulic press 12 Mpa
Hydraulic power 3 kw
Blade material Cr12Mov, quenching HRC 58-62℃
Length tolearance 3m±1.5mm
Voltage Australia standard voltage 415 V
Transmission 1,0 inch single chain
structural Pillar structure
Color Company color
If you need more information about the L profile rollforming line, please feel free let me know!
I will send you an offer and some machine running videos for your reference!
