60m/min-(0.3-2)X1500 automatic cut to length line

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 1 Bag/Bags
Delivery Time: 60 Days

Basic Info

Model No.: ZT004

Additional Info

Packaging: nude

Transportation: Ocean

Certificate: ISO9001

Product Description

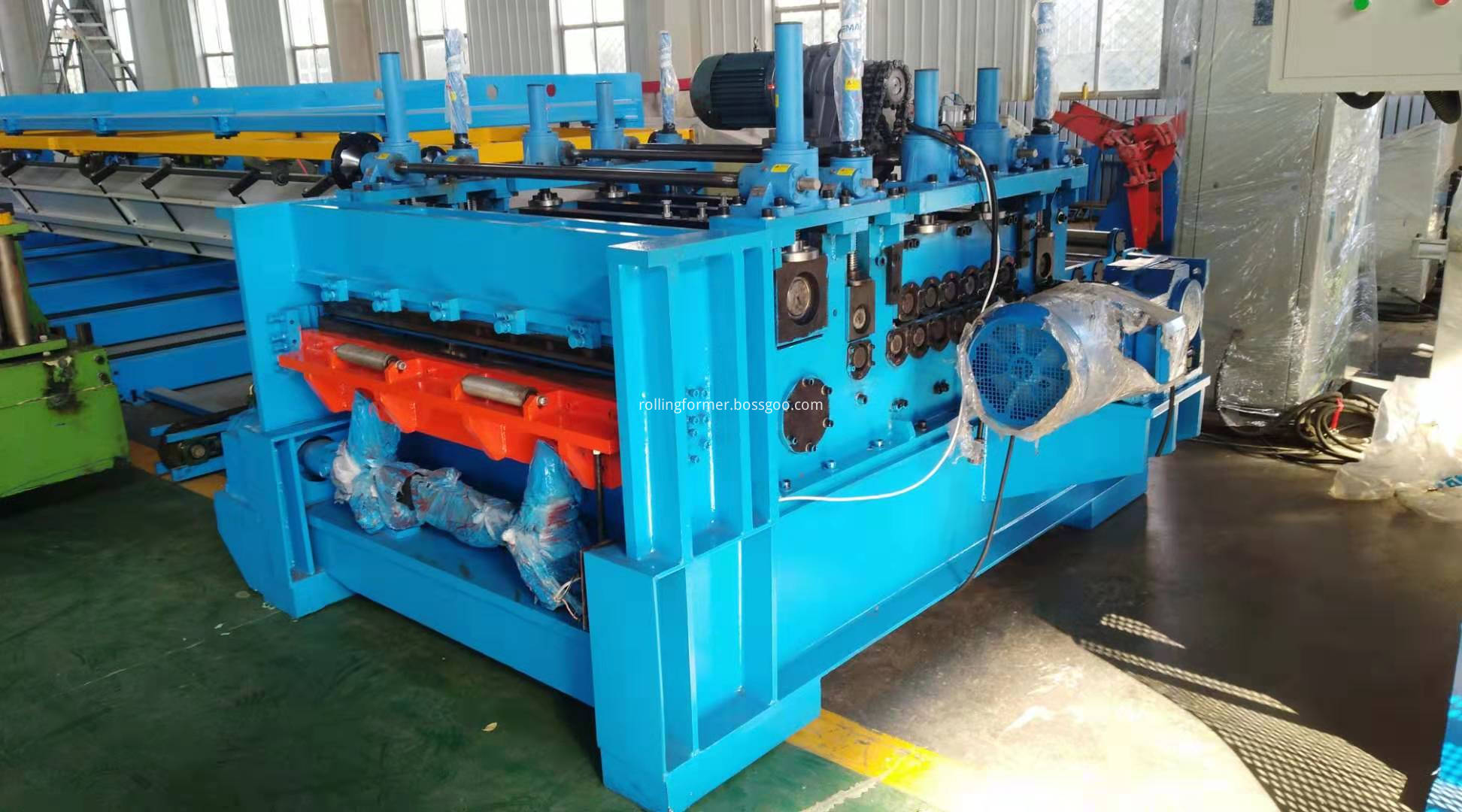

                          3mm Carbon Steel/ PPGI Cut to Length & Slitting Machine

cut to length slit

                          Cut to Length & Slitting MachineTechnical Parameters

Leveling Motor : 20kw    Hydraulic Motor: 5.5kw
Blade material: Cr12Mov
Slitting pieces: 5
Cut to length thickness : 3mm
Slitting thickness: 2mm

cut to length  slitting

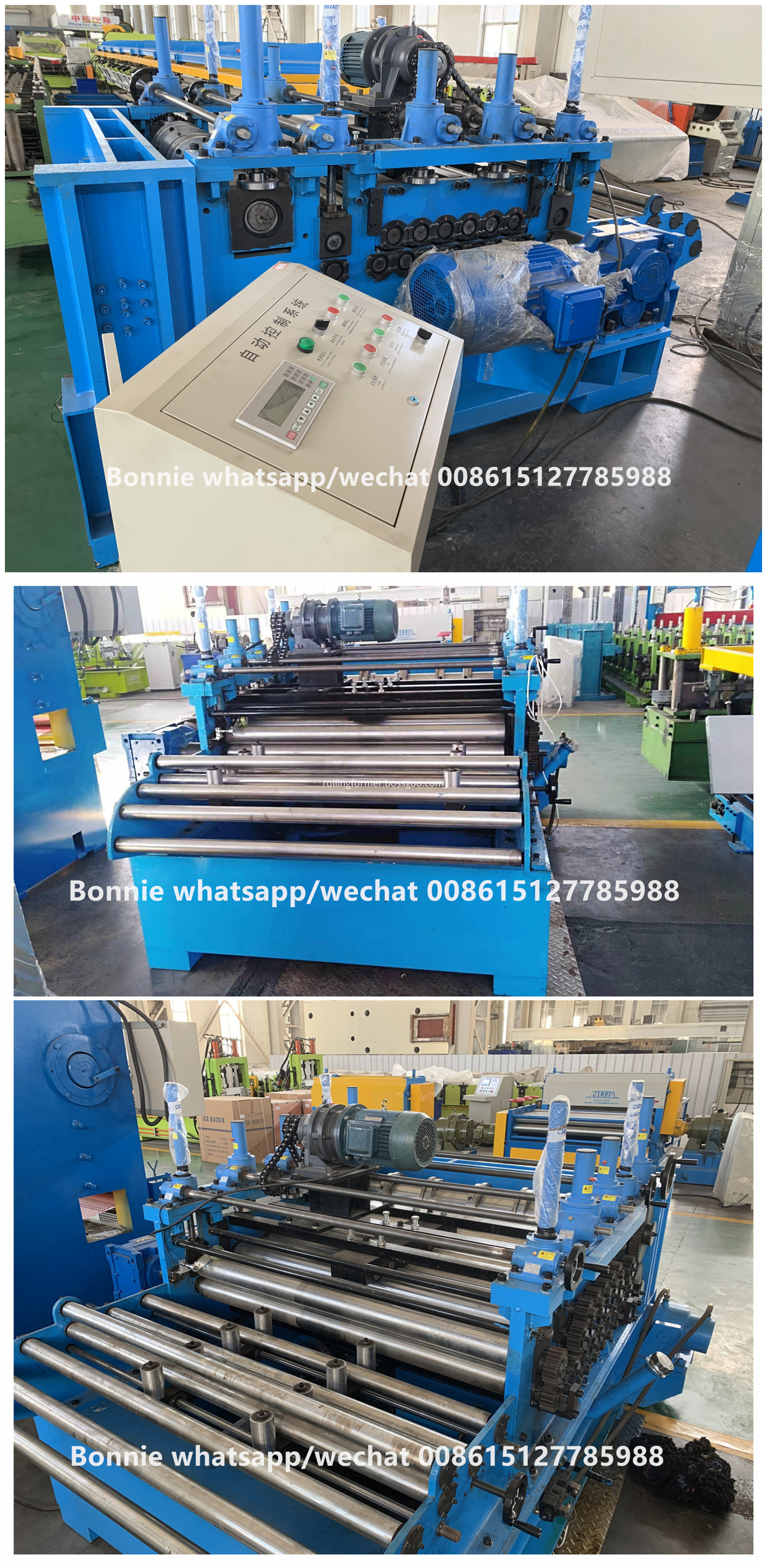

             Cut to Length & Slitting Machine Detailed Introduction

:one Slitting shaft
2,3: Two pairs of clamping shafts
4 :To adjust metal sheet width
5:Eight vertical guide shafts
6:Five horizontal guide shaft
7:leveling shafts(up 6 down 7)Dia-95mm

8:Ten sets of elevator---to adjust feeding gap

cut to length and slitting

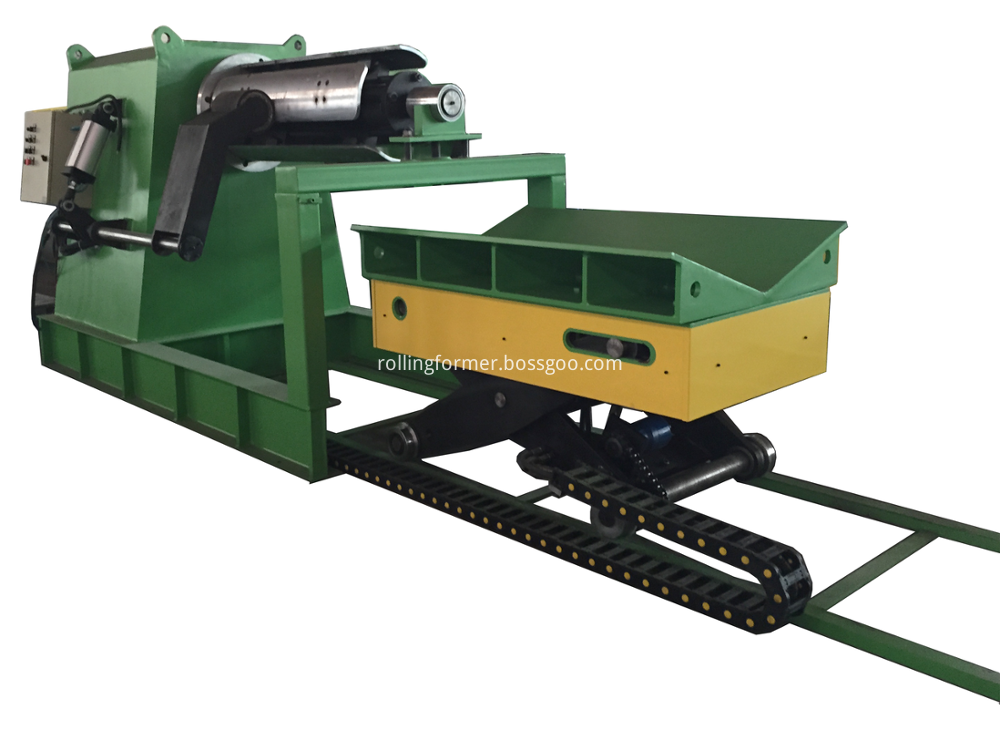

      Hydraulic Decoiler

Load capacity: 5 Tons (as required)

Inner diameter: 480-550mm (as required)

Tensioning way: pneumatic extend and shrink

Design:(1)With arm to protect coil from loosing

             (2)With horizontal bar to protect coil

Button: Schneider

photobank (2)

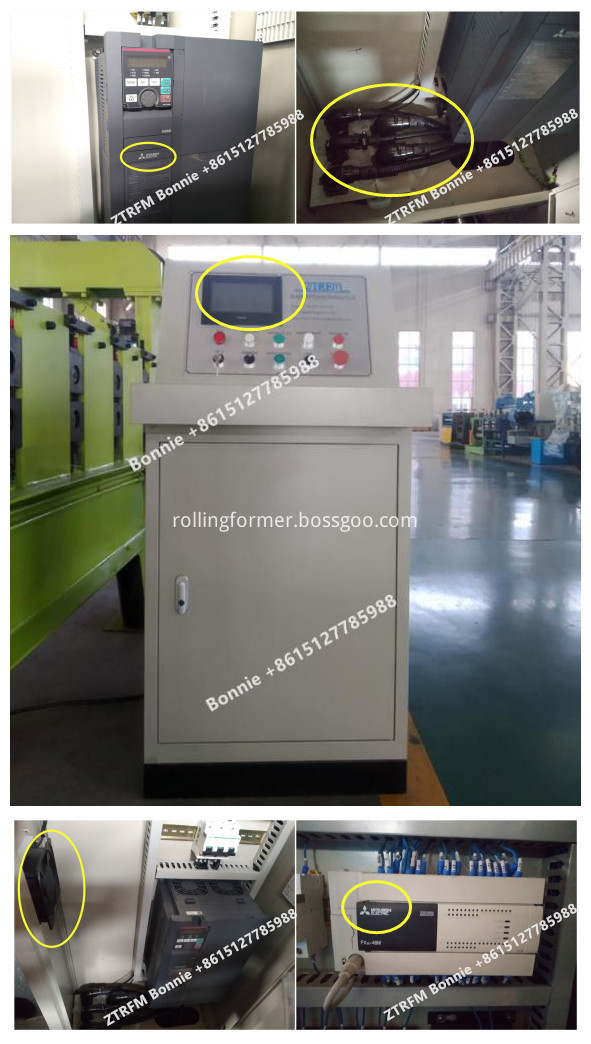

        Control Cabinet

PLC : Delta

Touch Screen:Siemens

Encoder: Schneider/Mitsubishi

Plug: Aviation plug

Botton: Schneider

cooling systerm: Fans

photobank (1)


                                          Company Introduction


photobank

photobank
